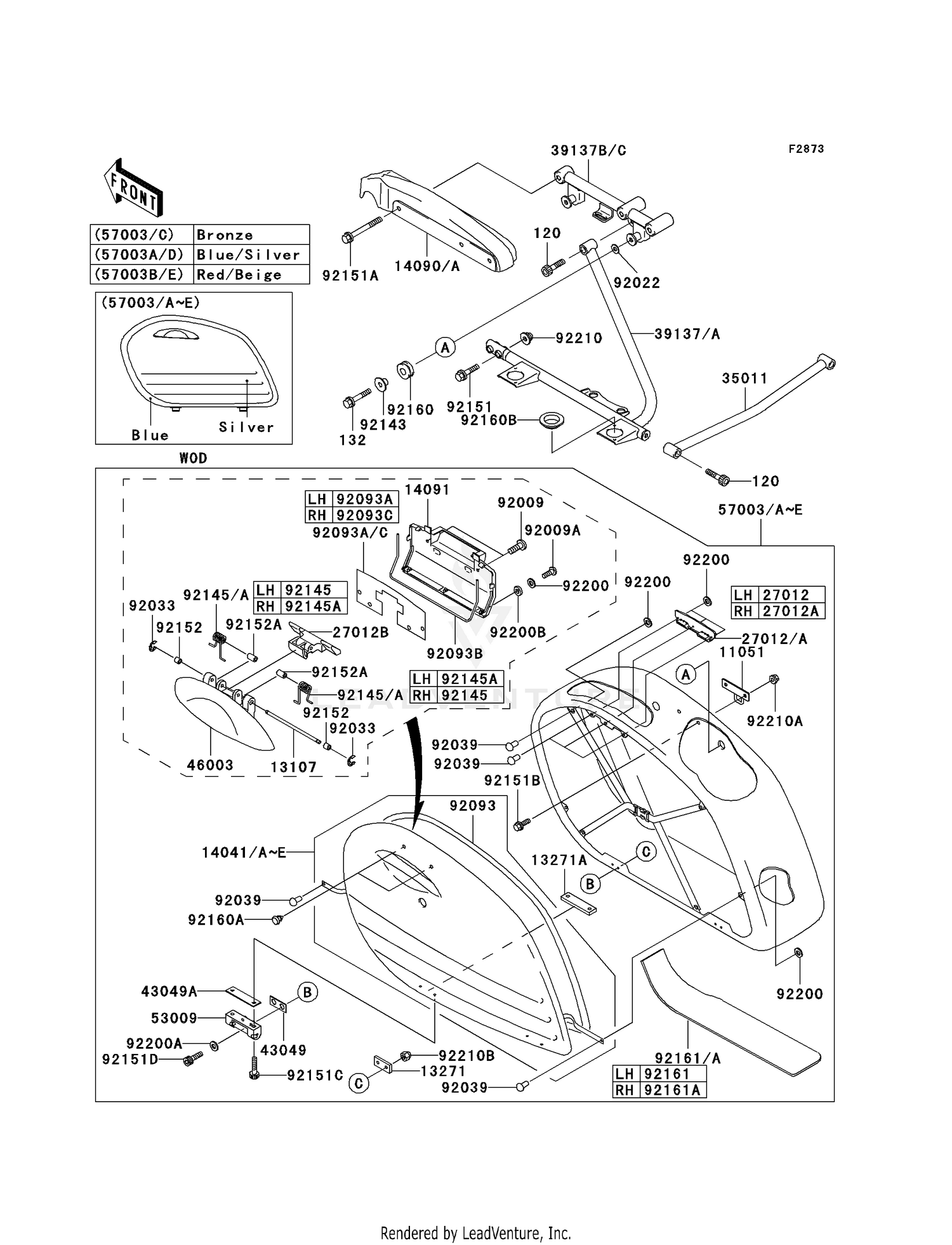

| Ref | Part Number | Description |
|---|
| 120 |
120CB0835 |
BOLT-SOCKET,8X35 This part replaces 120S0835. Price: $4.76 |
| 132 |
132BB0845 |
BOLT-FLANGED-SMALL This part replaces 132J0845. Price: $6.07 |
| 11051 |
11051-1104 |
BRACKET,SIDE BAG BODY Price: $10.65 |
| 13107 |
13107-1403 |
SHAFT Price: $4.69 |
| 13271 |
13271-1146 |
PLATE Price: $4.18 |
| 13271A |
13271-1147 |
PLATE Price: $7.95 |
| 14041 |
14041-1130-GU |
COVER-COMP,SIDE BAG,L Price: $665.64 |
| 14041B |
14041-1130-1Z |
COVER-COMP,SIDE BAG,L Price: $697.67 |
| 14041C |
14041-1131-GU |
COVER-COMP,SIDE BAG,R Price: $606.85 |
| 14041E |
14041-1131-1Z |
COVER-COMP,SIDE BAG,R Price: $574.84 |
| 14090 |
14090-1894 |
COVER,RR FENDER,LH Price: $64.49 |
| 14090A |
14090-1895 |
COVER,RR FENDER,RH Price: $83.42 |
| 14091 |
14091-1069 |
COVER,LID MAINTENANCE Price: $19.32 |
| 27012 |
27012-1571 |
HOOK,LOCK PLATE,LH Price: $14.80 |
| 27012A |
27012-1572 |
HOOK,LOCK PLATE,RH Price: $14.80 |
| 27012B |
27012-1575 |
HOOK,HANDLE Price: $19.55 |
| 35011 |
35011-1896 |
STAY,SIDE BAG Price: $74.67 |
| 39137 |
39137-1067 |
STAY-COMP,SIDE BAG,LH Price: $165.31 |
| 39137A |
39137-1068 |
STAY-COMP,SIDE BAG,RH Price: $160.68 |
| 39137B |
39137-1075 |
STAY-COMP,SIDE BAG,LH Price: $182.18 |
| 39137C |
39137-1076 |
STAY-COMP,SIDE BAG,RH Price: $182.18 |
| 43049 |
43049-1084 |
PACKING Price: $2.44 |
| 43049A |
43049-1086 |
PACKING Price: $2.44 |
| 46003 |
46003-1505 |
HANDLE,SIDE BAG Price: $187.83 |
| 53009 |
53009-1104 |
HINGE,SIDE BAG Price: $25.83 |
| 57003 |
57003-1084-1Z |
BAG-ASSY,LH,M.D.BRONZ Price: $1,971.78 |
| 57003B |
57003-1084-674 |
BAG-ASSY,LH,BLUE+SILV Price: $1,971.78 |
| 57003C |
57003-1085-1Z |
BAG-ASSY,RH,M.D.BRONZ Price: $1,971.78 |
| 57003E |
57003-1085-674 |
BAG-ASSY,RH,BLUE+SILV Price: $1,787.24 |
| 92009 |
92009-1870 |
SCREW,TAPPING,4X12 Price: $1.59 |
| 92009A |
92009-1871 |
SCREW,TAPPING,3X8 Price: $1.59 |
| 92022 |
92022-1317 |
WASHER,8.5X20X1.6,BLACK Price: $4.31 |
| 92033 |
92033-1300 |
RING-SNAP Price: $1.58 |
| 92039 |
92039-1236 |
RIVET Price: $2.46 |
| 92093 |
92093-1486 |
SEAL,SIDE BAG COVER Price: $12.20 |
| 92093A |
92093-1487 |
SEAL,SIDE BAG,LH Price: $6.20 |
| 92093B |
92093-1488 |
SEAL Price: $3.56 |
| 92093C |
92093-1489 |
SEAL,SIDE BAG,RH Price: $6.20 |
| 92143 |
92143-1450 |
COLLAR Price: $9.91 |
| 92145 |
92145-1175 |
SPRING Price: $7.88 |
| 92145A |
92145-1200 |
SPRING Price: $7.88 |
| 92151 |
92151-1402 |
BOLT,FLANGED,8X35 Price: $2.46 |
| 92151A |
92151-1403 |
BOLT,FLANGED,8X75 Price: $4.90 |
| 92151B |
92151-1435 |
BOLT,FLANGED,6X16 Price: $2.41 |
| 92151C |
92151-1436 |
BOLT,SOCKET,4X22 Price: $2.46 |
| 92151D |
92151-1437 |
BOLT,SOCKET,4X18 Price: $2.46 |
| 92152 |
92152-1121 |
COLLAR Price: $3.92 |
| 92152A |
92152-1122 |
COLLAR Price: $3.60 |
| 92160 |
92160-1012 |
DAMPER Price: $5.52 |
| 92160A |
92160-1976 |
DAMPER Price: $2.46 |
| 92160B |
92160-1981 |
DAMPER Price: $10.76 |
| 92161 |
92161-1171 |
DAMPER,SIDE BAG,LH Price: $37.46 |
| 92161A |
92161-1176 |
DAMPER,SIDE BAG,RH Price: $37.46 |
| 92200 |
92200-1442 |
WASHER,3MM Price: $1.59 |
| 92200A |
92200-1443 |
WASHER,4MM Price: $1.59 |
| 92200B |
92200-1444 |
WASHER,3MM Price: $1.59 |
| 92210 |
92210-1161 |
NUT,CAP,8MM Price: $2.48 |
| 92210A |
92210-1167 |
NUT,CAP,6MM Price: $2.67 |
