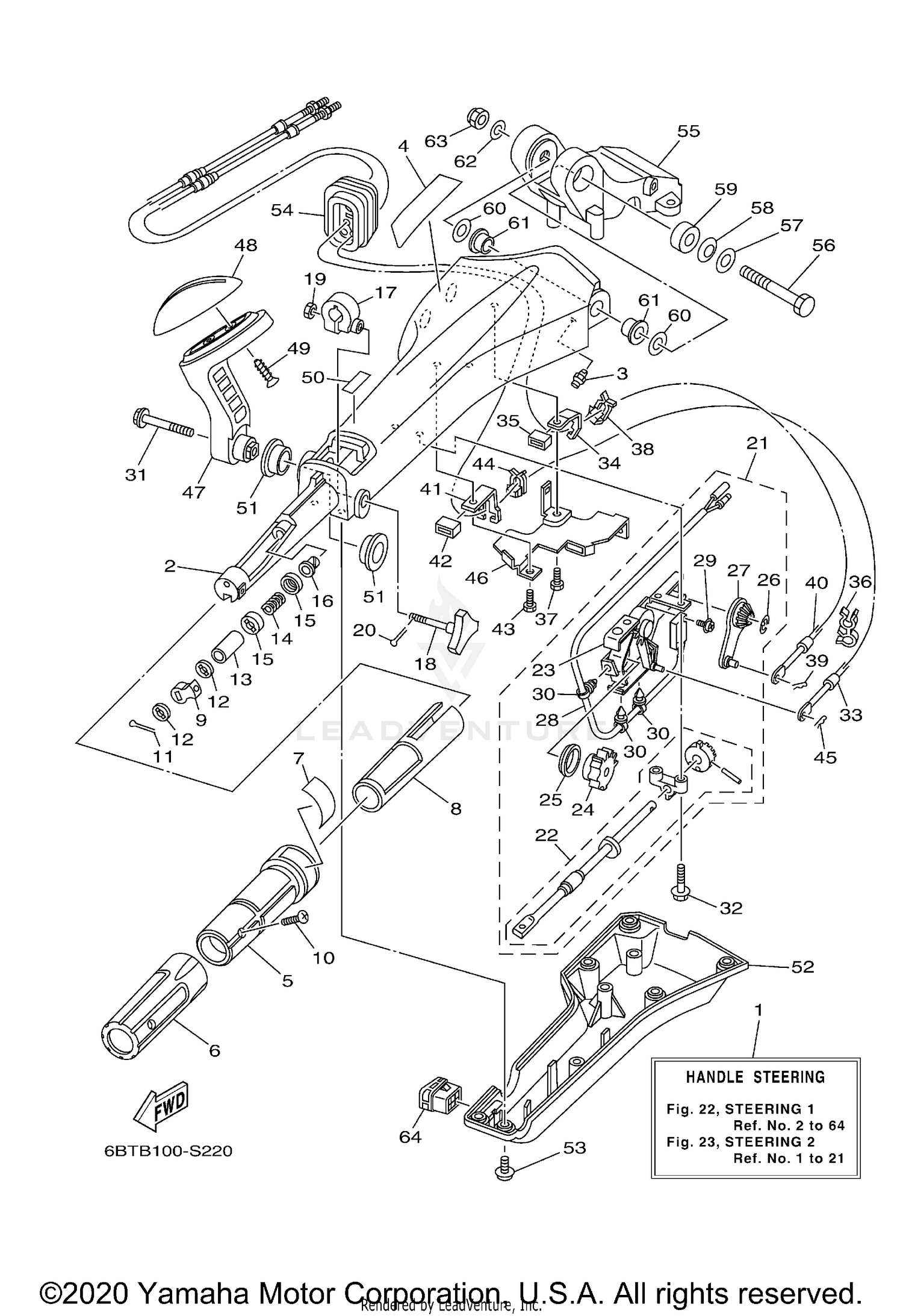

| Ref | Part Number | Description |
|---|
| 1 |
6X4-42101-K8-00 |
HANDLE, STEERING This part replaces 6X4-42101-K7-00. Price: $2,135.85 |
| 2 |
6X4-42111-02-8D |
HANDLE, STEERING Price: $281.00 |
| 3 |
93700-06002-00 |
NIPPLE, GREASE Price: $8.55 |
| 4 |
6X4-48215-00-00 |
GRAPHIC Price: $14.35 |
| 5 |
6X4-42119-01-00 |
GRIP, STEERING HANDLE Price: $27.05 |
| 6 |
6X4-42177-01-00 |
RUBBER, HANDLE This part replaces 6X4-42177-00-00. Price: $20.50 |
| 7 |
6X4-42137-00-00 |
INDICATOR, THROTTLE Price: $6.75 |
| 8 |
6X4-41291-00-00 |
BUSHING Price: $12.55 |
| 9 |
6X4-44139-01-00 |
COLLAR Price: $22.25 |
| 10 |
90152-05007-00 |
SCREW, COUNTERSUNK Price: $3.65 |
| 11 |
91490-20010-00 |
PIN. COTTER Price: $1.99 |
| 12 |
6X4-44177-00-00 |
WASHER Price: $3.45 |
| 13 |
6X4-42128-00-00 |
COLLAR, DISTANCE 1 Price: $11.55 |
| 14 |
90501-23215-00 |
SPRING, COMPRESSION Price: $8.25 |
| 15 |
6X4-44188-00-00 |
WASHER Price: $6.25 |
| 16 |
90386-08032-00 |
BUSH Price: $5.55 |
| 17 |
63D-42126-00-00 |
FRICTION, STEERING HANDLE CLAMP Price: $14.05 |
| 18 |
6X4-48154-00-00 |
KNOB, THROTTLE Price: $39.40 |
| 19 |
95380-06600-00 |
NUT, HEXAGON Price: $4.80 |
| 20 |
91490-20010-00 |
PIN. COTTER Price: $1.99 |
| 21 |
6X4-44100-01-00 |
SHIFT LINK ASSY Price: $454.90 |
| 22 |
6X4-42115-00-00 |
SHAFT, STEERING HANDLE Price: $288.50 |
| 23 |
6X4-44102-00-00 |
SHIFT ASSIST ASSY. Price: $314.10 |
| 24 |
6X4-47731-01-00 |
GEAR, DRIVE Price: $74.15 |
| 25 |
6X4-44132-00-00 |
BUSHING Price: $15.95 |
| 26 |
6X4-14137-00-00 |
CLIP Price: $5.50 |
| 27 |
6X4-48261-00-00 |
ARM, THROTTLE Price: $84.95 |
| 28 |
6X4-82540-00-00 |
NEUTRAL SWITCH ASSY Price: $172.90 |
| 29 |
703-48129-00-00 |
SCREW 3 Price: $2.00 |
| 30 |
6X4-42821-00-00 |
BAND, CLAMP Price: $2.85 |
| 31 |
97E95-08540-00 |
BOLT, HEXAGON W/W Price: $2.30 |
| 32 |
97E95-06530-00 |
BOLT, HEXAGON W/W Price: $1.10 |
| 33 |
67C-48321-11-00 |
CABLE Price: $99.45 |
| 34 |
6X4-48538-00-00 |
CLAMP, CABLE 1 Price: $14.20 |
| 35 |
6X4-26367-01-00 |
PROTECTOR This part replaces 6X4-26367-00-00. Price: $6.80 |
| 36 |
90464-09M42-00 |
CLAMP Price: $6.40 |
| 37 |
97D95-06014-00 |
BOLT, HEXAGON DEEP Price: $1.55 |
| 38 |
63D-48538-00-00 |
CLAMP, CABLE 1 Price: $6.40 |
| 39 |
90468-10005-00 |
CLIP Price: $7.15 |
| 40 |
69W-26301-00-00 |
THROTTLE CABLE ASSY Price: $114.75 |
| 41 |
6X4-48538-10-00 |
CLAMP, CABLE 1 Price: $13.90 |
| 42 |
6X4-26367-01-00 |
PROTECTOR This part replaces 6X4-26367-00-00. Price: $6.80 |
| 43 |
97D95-06014-00 |
BOLT, HEXAGON DEEP Price: $1.55 |
| 44 |
63D-48538-00-00 |
CLAMP, CABLE 1 Price: $6.40 |
| 45 |
90468-10005-00 |
CLIP Price: $7.15 |
| 46 |
6X4-42159-00-00 |
STAY Price: $46.85 |
| 47 |
6X4-44159-A0-8D |
HANDLE, GEAR SHIFT Price: $137.15 |
| 48 |
6X4-44173-00-00 |
LEVER, SHIFT CONTROL Price: $14.75 |
| 49 |
97780-60920-00 |
SCREW, TAPPING Price: $5.55 |
| 50 |
6X3-44191-00-00 |
INDICATOR, SHIFT Price: $10.70 |
| 51 |
90386-26MA3-00 |
BUSH Price: $8.60 |
| 52 |
6X4-42131-11-00 |
COVER, HANDLE STEERING Price: $23.05 |
| 53 |
97985-06216-00 |
SCREW, WITH WASHER Price: $3.20 |
| 54 |
6X4-42725-01-00 |
GROMMET Price: $13.50 |
| 55 |
63D-42121-22-8D |
BRACKET Price: $271.10 |
| 56 |
90101-12014-00 |
BOLT Price: $32.75 |
| 57 |
92990-12200-00 |
WASHER, PLAIN Price: $9.49 |
| 58 |
90206-12M22-00 |
WASHER, WAVE Price: $10.70 |
| 59 |
90387-12M02-00 |
COLLAR Price: $22.15 |
| 60 |
90201-12035-00 |
WASHER, PLATE Price: $3.45 |
| 61 |
90386-12003-00 |
BUSH Price: $6.75 |
| 62 |
92990-12600-00 |
WASHER, PLATE Price: $9.49 |
| 63 |
90185-12M12-00 |
NUT, SELF-LOCKING Price: $17.90 |
