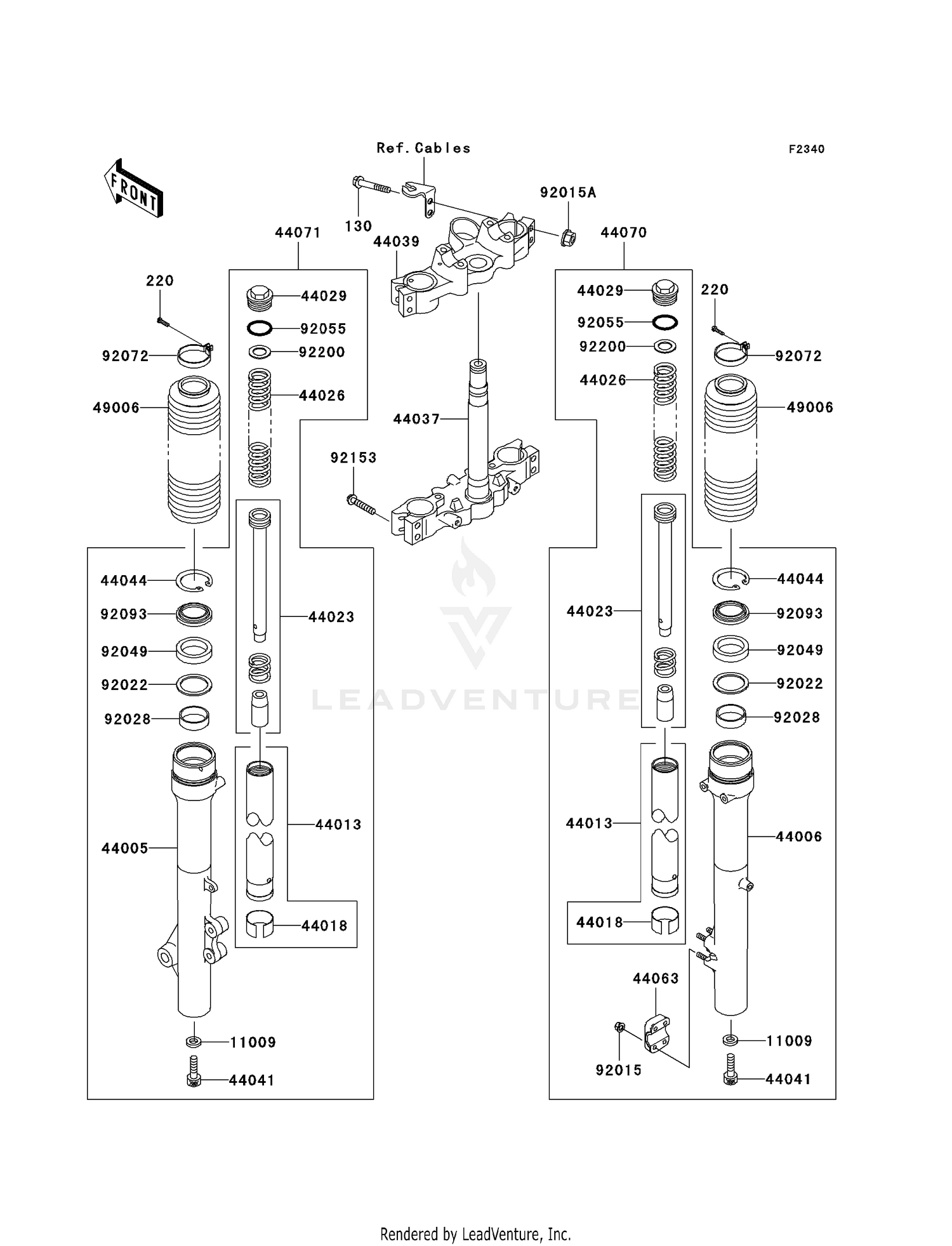

| Ref | Part Number | Description |
|---|
| 130 |
130BA0850 |
BOLT-FLANGED,8X50 Price: $2.25 |
| 220 |
220AA0416 |
SCREW-PAN-CROS Price: $1.78 |
| 11009 |
44045-057 |
GASKET,FORK CYLINDER This part replaces 11009-1325. Price: $4.86 |
| 44005 |
44005-0058 |
PIPE-LEFT FORK OUTER Price: $457.71 |
| 44006 |
44006-1401 |
PIPE-RIGHT FORK OUTER Price: $465.25 |
| 44013 |
44013-1468 |
PIPE-FORK INNER Price: $355.07 |
| 44018 |
44018-1058 |
PISTON-FORK Price: $21.36 |
| 44023 |
44023-1141 |
CYLINDER-SET-FORK Price: $196.67 |
| 44026 |
44026-1699 |
SPRING-FRONT FORK Price: $108.44 |
| 44029 |
44029-1160 |
SEAT-FORK SPRING Price: $45.81 |
| 44037 |
44037-0046 |
HOLDER-FORK UNDER Price: $372.75 |
| 44039 |
44039-1272 |
HOLDER-FORK UPPER Price: $240.38 |
| 44041 |
44041-040 |
BOLT,SOCKET,FORK CYLINDER Price: $6.57 |
| 44044 |
92033-1100 |
RING-SNAP,FORK OIL This part replaces 44044-015. Price: $14.94 |
| 44063 |
44063-1056 |
HOLDER-FRONT AXLE Price: $55.31 |
| 44070 |
44070-1776 |
DAMPER-ASSY,FORK,RH Price: $684.42 |
| 44071 |
44071-0409 |
DAMPER-ASSY,FORK,LH Price: $684.42 |
| 49006 |
49006-1312-BD |
BOOT,FORK,BLACK Price: $75.73 |
| 92015 |
92210-0630 |
NUT,FLANGED,6MM This part replaces 92015-1078. Price: $2.00 |
| 92015A |
92015-1485 |
NUT,FLANGED,8MM Price: $5.38 |
| 92022 |
92022-1275 |
WASHER,FRONT FORK Price: $7.34 |
| 92028 |
92028-1656 |
BUSHING Price: $16.18 |
| 92049 |
92049-1470 |
SEAL-OIL,FORK OUTER T Price: $19.25 |
| 92055 |
92055-1051 |
RING-O,FORK TOP CAP Price: $5.52 |
| 92072 |
92072-1347 |
BAND,BOOT Price: $10.09 |
| 92093 |
92093-1439 |
SEAL,FORK OUTER TUBE Price: $16.26 |
| 92153 |
92153-0484 |
BOLT,FLANGED,8X40 Price: $3.29 |
