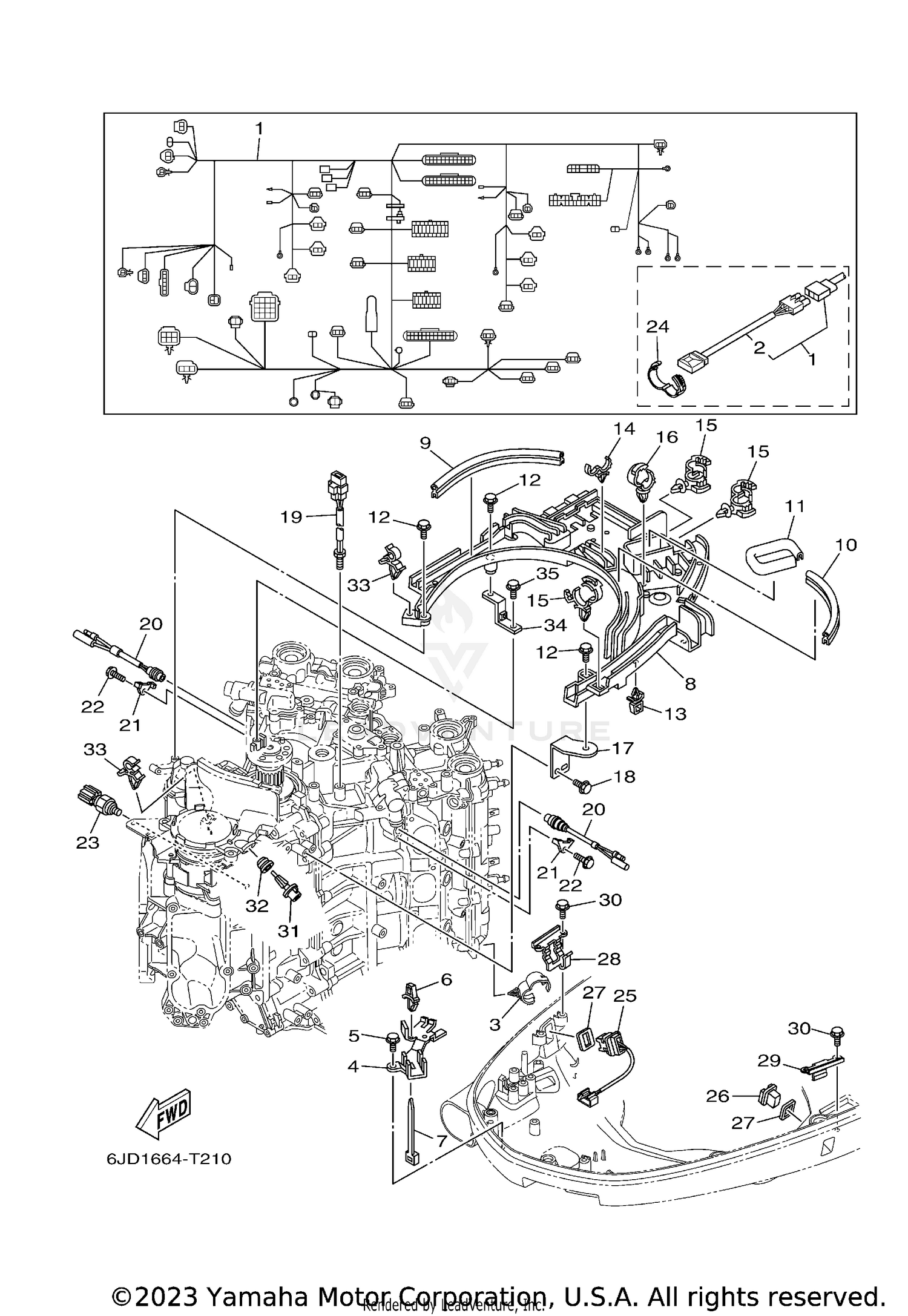

| Ref | Part Number | Description |
|---|
| 2 |
6CE-81980-00-00 |
DIODE ASSY Price: $62.75 |
| 3 |
90464-20181-00 |
CLAMP Price: $4.72 |
| 4 |
6CB-82594-00-00 |
CLAMP Price: $39.80 |
| 5 |
95D95-06012-00 |
BOLT, FLANGE DEEP Price: $0.95 |
| 6 |
90464-06001-00 |
CLAMP Price: $3.20 |
| 7 |
437-83936-11-00 |
BAND, SWITCH CORD This part replaces 90465-13M24-00. Price: $5.00 |
| 8 |
6CB-82589-01-00 |
PROTECTER, WIRE HARNESS Price: $98.30 |
| 9 |
6BG-42617-00-00 |
DAMPER, FORM Price: $32.10 |
| 10 |
6CB-42617-00-00 |
DAMPER, FORM Price: $25.35 |
| 11 |
6CB-42629-00-00 |
SEAL Price: $15.50 |
| 12 |
95D95-06020-00 |
BOLT, FLANGE DEEP Price: $5.35 |
| 13 |
90464-11121-00 |
CLAMP Price: $3.20 |
| 14 |
90464-18246-00 |
CLAMP Price: $2.44 |
| 15 |
90464-12183-00 |
CLAMP Price: $3.50 |
| 16 |
90464-20181-00 |
CLAMP Price: $4.72 |
| 17 |
6CB-82388-00-00 |
PLATE Price: $30.55 |
| 18 |
95D95-06016-00 |
BOLT, FLANGE DEEP Price: $0.95 |
| 19 |
6CB-85790-00-00 |
THERMOSENSOR ASSY Price: $76.85 |
| 20 |
6P2-82560-01-00 |
THERMO SWITCH ASSY Price: $58.00 |
| 21 |
6E9-82588-00-00 |
PLATE Price: $15.80 |
| 22 |
95D95-06012-00 |
BOLT, FLANGE DEEP Price: $0.95 |
| 23 |
6AW-83651-01-00 |
SENDER, OIL PRESSURE This part replaces 6AW-83651-00-00. Price: $363.10 |
| 24 |
90464-16001-00 |
CLAMP Price: $2.39 |
| 25 |
6BR-82563-01-00 |
TRIM & TILT SWITCH ASSY Price: $93.30 |
| 26 |
69J-42723-01-00 |
COVER, BOTTOM Price: $34.15 |
| 27 |
69J-82587-01-00 |
GASKET This part replaces 69J-82587-00-00. Price: $5.55 |
| 28 |
63P-83614-01-00 |
BRACKET Price: $22.80 |
| 29 |
6DA-83614-00-00 |
BRACKET Price: $7.20 |
| 30 |
95D95-06012-00 |
BOLT, FLANGE DEEP Price: $0.95 |
| 31 |
63P-85886-00-00 |
SENSOR, AIR TEMPERATURE Price: $45.95 |
| 32 |
6CE-14435-00-00 |
GROMMET Price: $2.85 |
| 33 |
90464-09129-00 |
CLAMP Price: $2.22 |
| 34 |
6CB-81952-00-00 |
HOLDER, RELAY Price: $19.30 |
