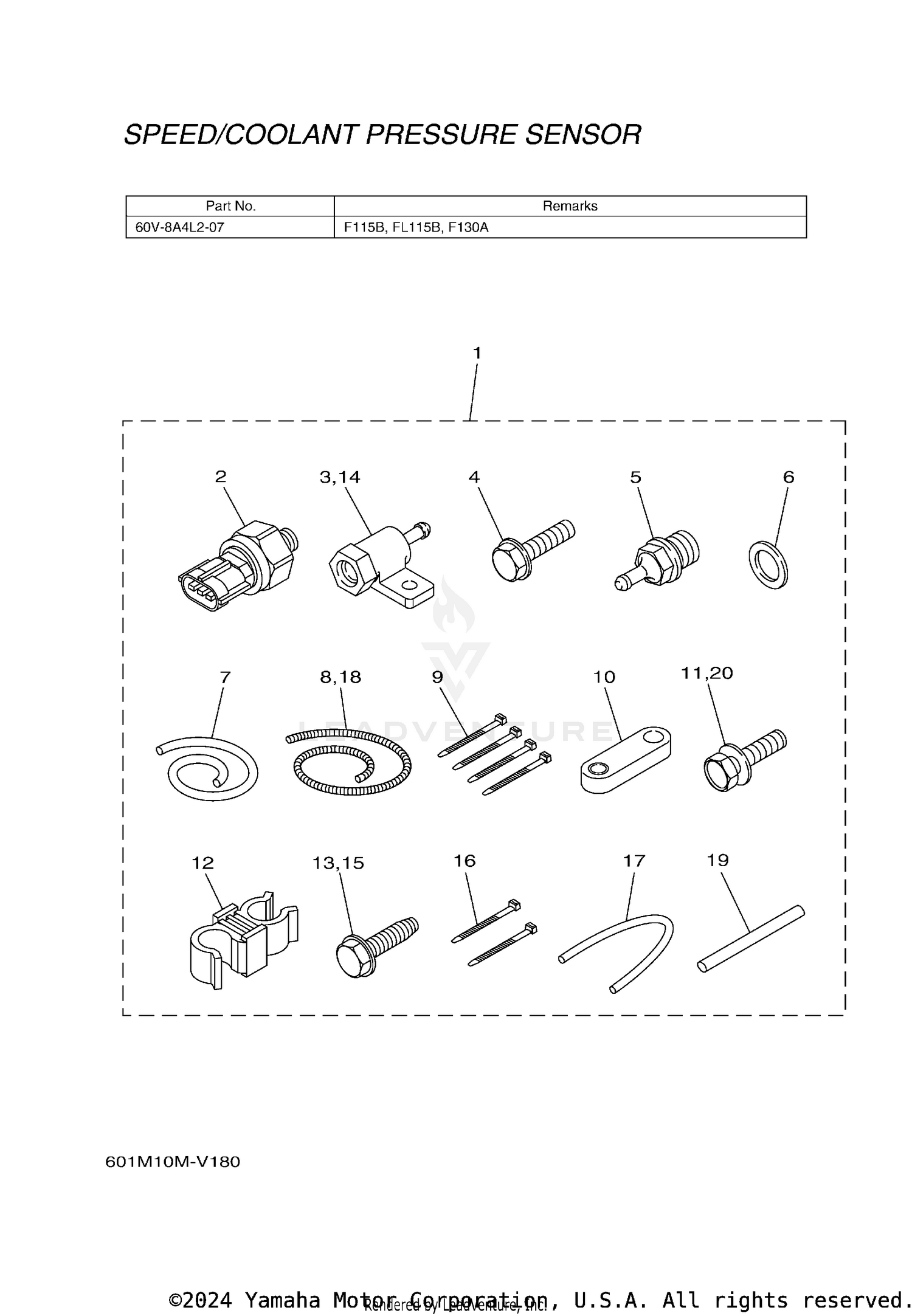

DIGITAL NETWORK GAUGE 7
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 60V-8A4L2-07-00 | SENSOR MODULE 2 Price: $622.00 |
| 2 | 6AW-8366B-10-00 | SENSOR, WATER PRES This part replaces 6AW-8366B-02-00. Price: $226.00 |
| 3 | 60V-8366D-00-00 | ADAPTOR, INPUT Price: $72.90 |
| 4 | 95D95-06025-00 | BOLT, FLANGE DEEP Price: $0.95 |
| 5 | 60V-83667-00-00 | SENDER, WATER PRESSURE Price: $59.50 |
| 6 | 90430-14115-00 | GASKET Price: $3.00 |
| 7 | 90445-07012-00 | HOSE (L1457) This part replaces 90445-07018-00. Price: $10.90 |
| 8 | 90447-07015-00 | HOSE, COVER (L: 1300MM) Price: $9.05 |
| 9 | 90465-10098-00 | CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 10 | 60V-8257V-00-00 | PLATE, CONNECTOR Price: $13.50 |
| 11 | 97E95-06516-00 | BOLT, HEXAGON W/W Price: $4.20 |
| 12 | 90464-09021-00 | CLAMP Price: $4.50 |
| 13 | 90109-06M81-00 | BOLT Price: $2.70 |
| 14 | 60V-8366D-00-00 | ADAPTOR, INPUT Price: $72.90 |
| 15 | 90109-06M81-00 | BOLT Price: $2.70 |
| 16 | 90465-10098-00 | CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 17 | 90445-07017-00 | HOSE (L: 550MM) Price: $4.50 |
| 18 | 90447-07013-00 | HOSE, COVER (L: 700MM) Price: $4.60 |
| 19 | 60V-42629-01-00 | SEAL Price: $2.85 |
