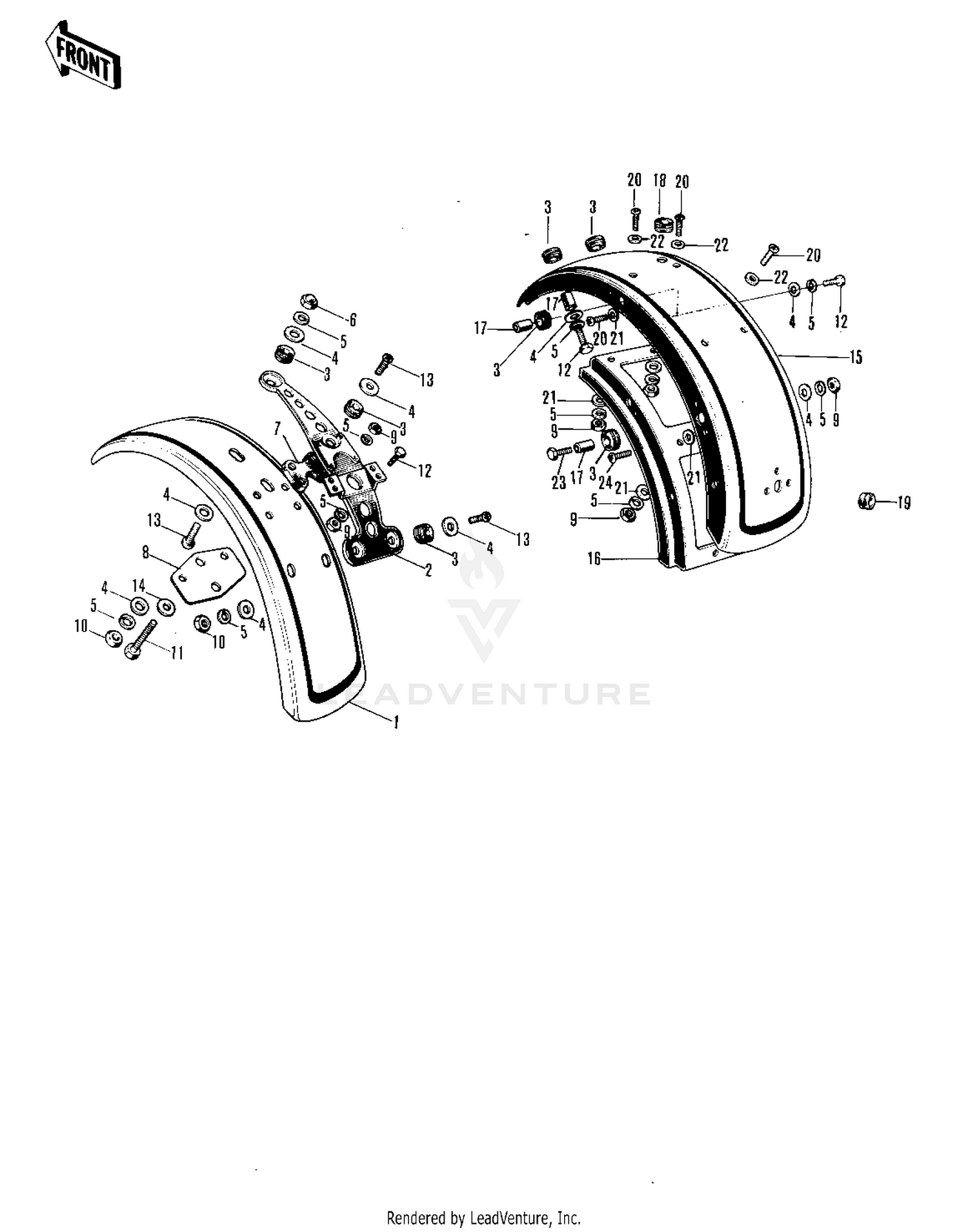

| Ref | Part Number | Description |
|---|
| 1 |
35004-048-55 |
FENDER-FRONT,ORANGE Price: $67.47 |
| 2 |
35012-011 |
BRACKET-FRONT FENDER Price: $17.58 |
| 3 |
92075-051 |
DAMPER Price: $3.92 |
| 4 |
92200-0283 |
WASHER,6.5X20X1.6 This part replaces 92022-125. Price: $1.40 |
| 5 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 6 |
92015-009 |
NUT,6MM Price: $3.73 |
| 7 |
35007-002 |
DAMPER RUBBER-F.FENDR Price: $3.52 |
| 8 |
35013-009 |
PLATE-FRNT FENDER FIT Price: $9.43 |
| 9 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 10 |
312AA0600 |
NUT-HEX This part replaces 312B0600. Price: $0.73 |
| 11 |
92003-063 |
BOLT-HEX HEAD,6X42 Price: $1.84 |
| 12 |
112BA0618 |
BOLT-UPSET This part replaces 112G0618. Price: $1.03 |
| 13 |
220E0618 |
SCREW-PAN HEAD,6X18 Price: $3.42 |
| 14 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 15 |
35022-046-72 |
FENDER-RR,B.ORANGE Price: $140.57 |
| 16 |
35034-010 |
BRACE-REAR FENDER Price: $20.15 |
| 17 |
92027-103 |
COLLAR Price: $3.58 |
| 18 |
92071-010 |
GROMMET HARNESS 10MM Price: $4.12 |
| 19 |
92071-019 |
GROMMET HARNESS 10MM Price: $3.89 |
| 20 |
220AA0614 |
SCREW-PAN-CROS,6X14 This part replaces 220B0614. Price: $1.48 |
| 23 |
110N0618 |
BOLT HEX HEAD 6X18 Price: $3.77 |
