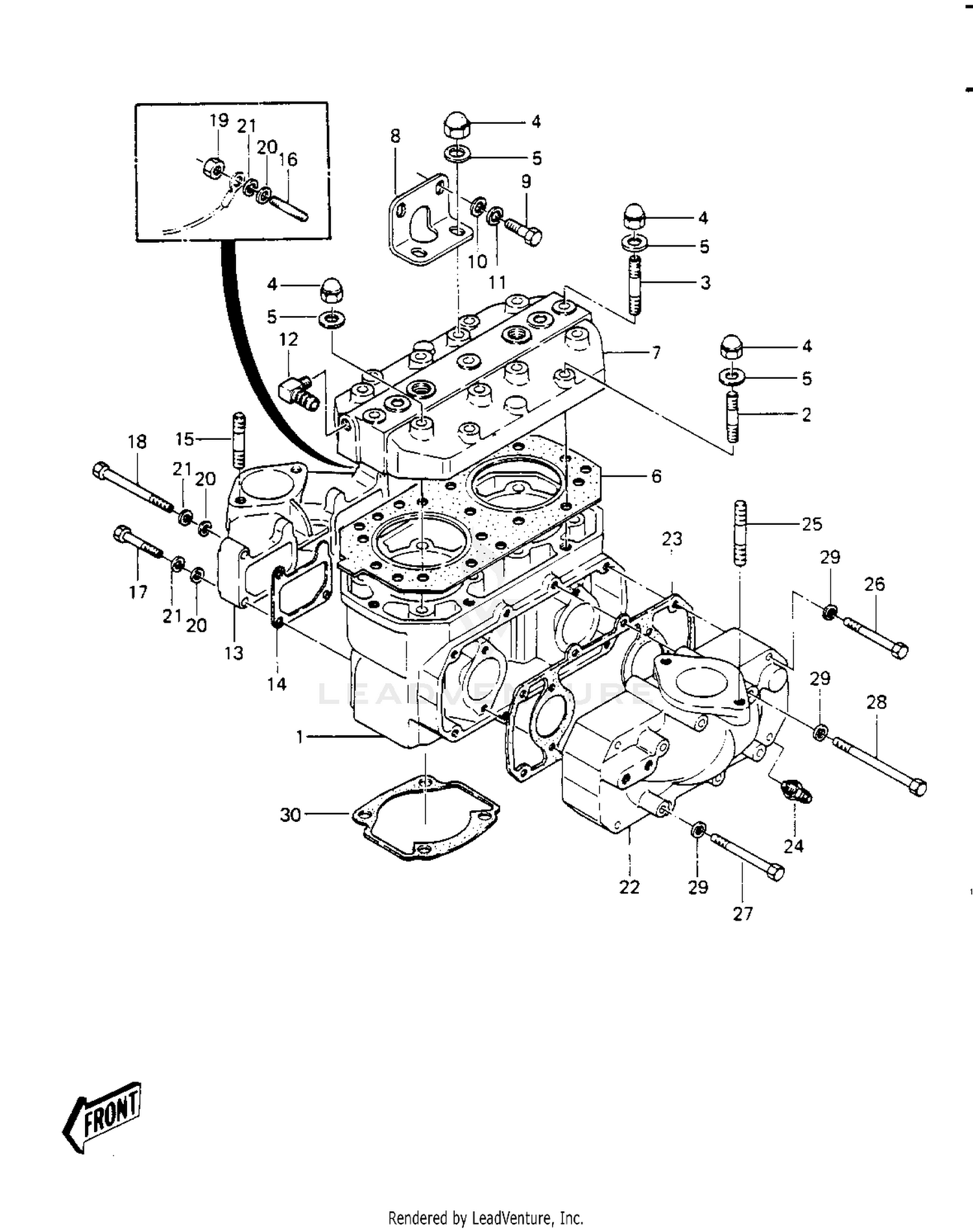

| Ref | Part Number | Description |
|---|
| 1 |
11005-3704 |
CYLINDER-ENGINE Price: $471.90 |
| 2 |
92004-3016 |
STUD,8X42 Price: $5.54 |
| 3 |
92004-3017 |
STUD,8X50 Price: $6.87 |
| 4 |
92015-3003 |
NUT-CAP,8MM Price: $6.60 |
| 5 |
411S0800 |
WASHER-PLAIN,8MM Price: $3.09 |
| 6 |
11004-3707 |
GASKET-HEAD Price: $60.56 |
| 7 |
11008-3002-YR |
HEAD-COMP-CYLINDER Price: $392.79 |
| 8 |
11034-3011 |
BRACKET,CARBURETOR Price: $34.97 |
| 9 |
110R0614 |
BOLT 6X14 Price: $4.79 |
| 10 |
411S0600 |
WASHER-PLAIN,6MM Price: $2.06 |
| 11 |
461S0600 |
WASHER-SPRING,6MM Price: $1.07 |
| 12 |
52014-3708 |
ELBOW This part replaces 52014-3002. Price: $34.82 |
| 13 |
59076-505-YR |
MANIFOLD-INTAKE Price: $137.25 |
| 14 |
11009-3785 |
GASKET,INTAKE Price: $5.11 |
| 15 |
172R0835 |
STUD,8X35 Price: $7.65 |
| 16 |
171R0635 |
STUD,6X35 Price: $8.14 |
| 17 |
110R0635 |
BOLT 6X35 Price: $5.96 |
| 18 |
110R0670 |
BOLT,6X70 Price: $11.08 |
| 19 |
311R0600 |
NUT-HEX,6MM Price: $0.70 |
| 20 |
410S0600 |
WASHER-PLAIN-SMALL,6MM Price: $0.78 |
| 21 |
461S0600 |
WASHER-SPRING,6MM Price: $1.07 |
| 22 |
59081-504-YR |
MANIFOLD-EXHAUST Price: $249.30 |
| 23 |
11009-3779 |
GASKET,EXHAUST MANIF Price: $27.79 |
| 24 |
92005-3712 |
FITTING,HOSE This part replaces 92005-3001. Price: $10.88 |
| 25 |
172R0835 |
STUD,8X35 Price: $7.65 |
| 26 |
110R0650 |
BOLT,6X50 Price: $5.04 |
| 27 |
110R0670 |
BOLT,6X70 Price: $11.08 |
| 28 |
110R0685 |
BOLT,6X85 Price: $1.88 |
| 29 |
410S0600 |
WASHER-PLAIN-SMALL,6MM Price: $0.78 |
