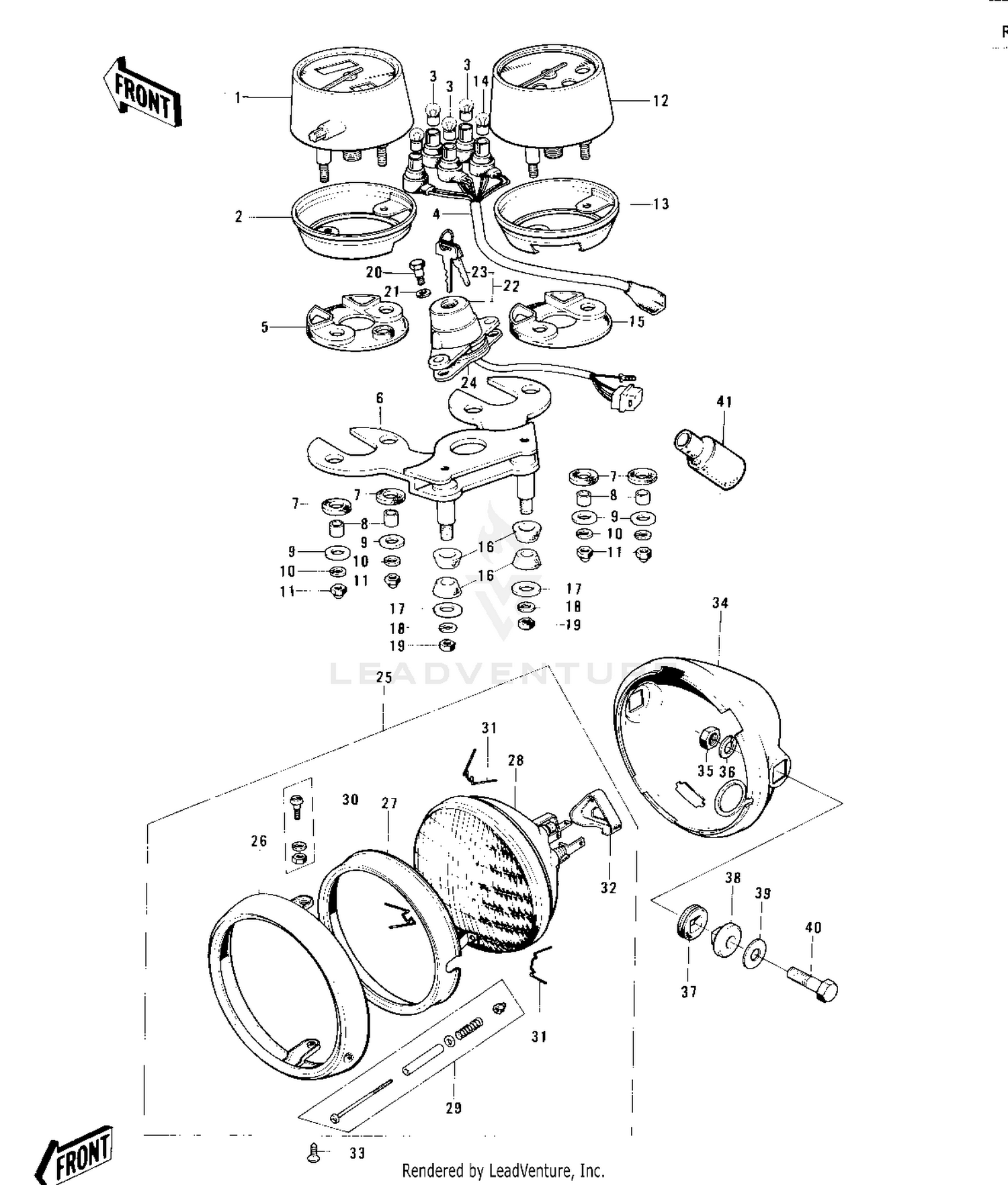

| Ref | Part Number | Description |
|---|
| 1 |
25005-110 |
SPEEDOMETER ASSY,MPH Price: $237.47 |
| 2 |
25012-017 |
COVER-SPEEDOMETER Price: $35.33 |
| 3 |
92069-024 |
BULB 6V 1.5W Price: $5.31 |
| 4 |
25011-038 |
SOCKET,SPEEDOMETER Price: $44.65 |
| 5 |
25019-018 |
SHOCK DAMPER,METER Price: $11.56 |
| 6 |
25008-034 |
BRACKET,METER Price: $68.57 |
| 7 |
25019-019 |
DAMPER RUBBER,METER Price: $8.31 |
| 8 |
25021-004 |
COLLAR,METER FITTING Price: $5.03 |
| 9 |
92022-285 |
WASHER PL 5.2X18X1.2 Price: $7.88 |
| 11 |
322N0500 |
NUT-CAP,5MM Price: $4.06 |
| 12 |
25015-027 |
TACHOMETER ASSY Price: $234.44 |
| 13 |
25012-018 |
COVER,TACHOMETER Price: $33.73 |
| 14 |
92069-053 |
BULB-6V 3W Price: $4.18 |
| 15 |
25019-020 |
DAMPER RUBBER,METER Price: $7.41 |
| 16 |
92075-248 |
DAMPER RUBBER,METER Price: $4.05 |
| 17 |
92022-237 |
WASHER,6.5X22X1.6 Price: $3.92 |
| 18 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 19 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 20 |
92007-026 |
BOLT-HEX HEAD,6MM Price: $10.86 |
| 21 |
410AA0800 |
WASHER-PLAIN-SMALL,8MM This part replaces 410B0800. Price: $0.96 |
| 22 |
27005-059 |
SWITCH ASSY.IGNITION Price: $51.59 |
| 24 |
92075-077 |
DAMPER RUBBER Price: $9.19 |
| 25 |
23003-021 |
LAMP UNIT,HEAD Price: $142.21 |
| 26 |
23006-042 |
RIM,HEAD LAMP Price: $62.05 |
| 27 |
23072-002 |
RETAINER,SEALED BEAM Price: $39.06 |
| 28 |
23007-055 |
SEALED BEAM UNIT Price: $71.24 |
| 29 |
23013-5001 |
SCREW ASSY,FOCUS AJST Price: $15.85 |
| 30 |
23013-007 |
SCREW SET,LENS UNIT Price: $6.35 |
| 31 |
23009-015 |
CLAMP,HEAD LAMP LENS Price: $5.44 |
| 32 |
23081-001 |
COVER,HD LAMP SOCKET Price: $8.08 |
| 33 |
220AA0512 |
SCREW-PAN-CROS,5X12 This part replaces 23019-025. Price: $0.47 |
| 34 |
23005-050-21 |
BODY,HEAD LAMP,F.BLAK Price: $64.66 |
| 35 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 36 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 37 |
23066-011 |
DAMPER RUBBER Price: $4.95 |
| 38 |
23052-005 |
COLLAR Price: $15.16 |
| 39 |
92200-1313 |
WASHER This part replaces 411D1000. Price: $4.78 |
| 40 |
92007-041 |
BOLT,HEX HEAD,10X30 Price: $12.16 |
