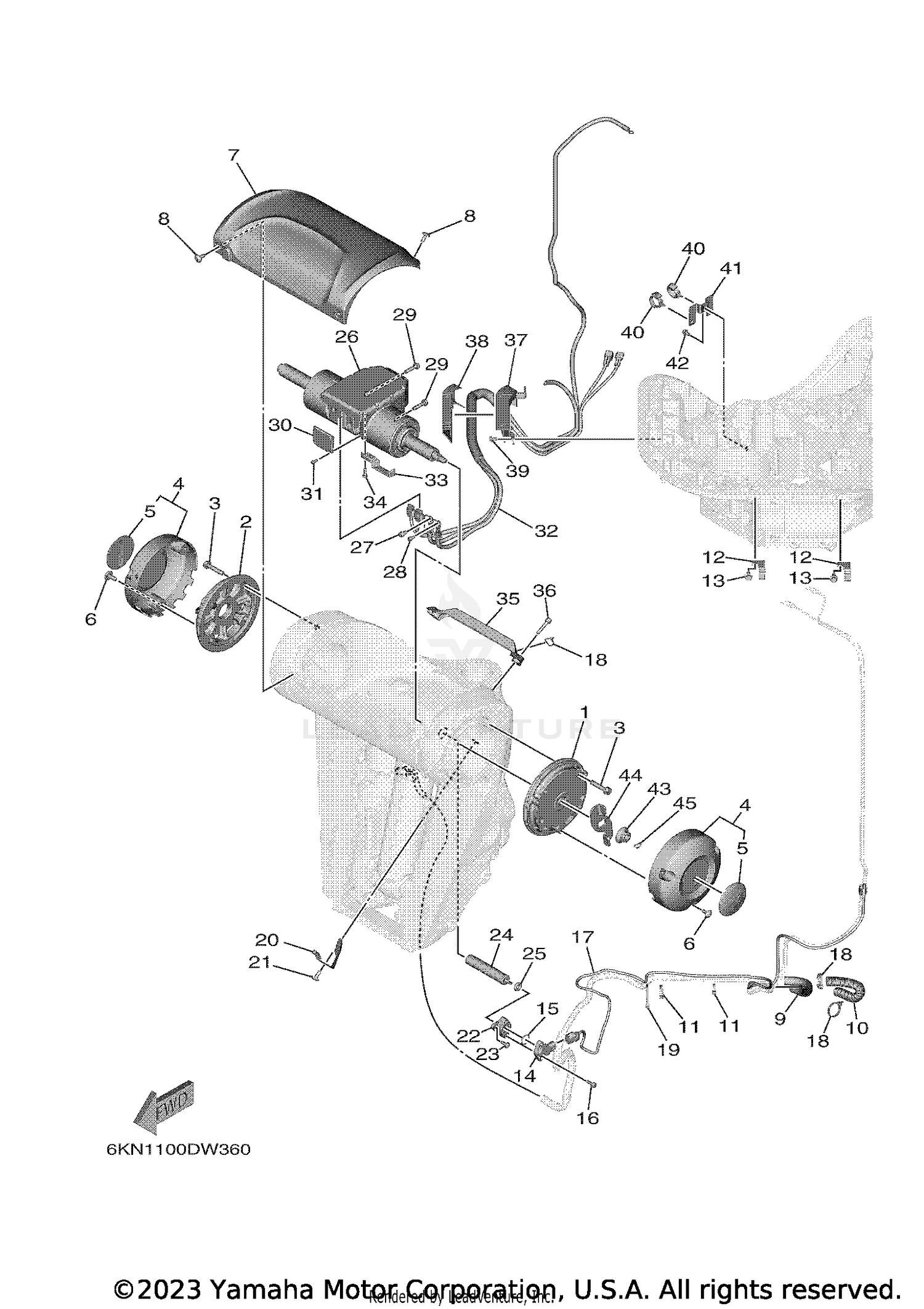

| Ref | Part Number | Description |
|---|
| 1 |
6GR-43341-00-00 |
COVER, SWIVEL SODE 1 Price: $116.90 |
| 2 |
6GR-43342-00-00 |
COVER, SWIVEL SODE 2 Price: $108.45 |
| 3 |
90119-08176-00 |
BOLT, WITH WASHER Price: $5.95 |
| 5 |
6DA-42697-00-00 |
TUNING FORK MARK Price: $28.15 |
| 6 |
90111-06144-00 |
BOLT,HEX. SOCKET BUTTON Price: $4.15 |
| 8 |
90111-06144-00 |
BOLT,HEX. SOCKET BUTTON Price: $4.15 |
| 9 |
6GR-24864-00-00 |
TUBE Price: $4.65 |
| 10 |
6KN-24864-00-00 |
TUBE Price: $4.40 |
| 11 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 12 |
90462-10033-00 |
CLAMP Price: $9.30 |
| 13 |
95D95-06012-00 |
BOLT, FLANGE DEEP Price: $0.95 |
| 14 |
6GR-85887-00-00 |
SENSOR ANGLE Price: $101.05 |
| 15 |
93210-17MF9-00 |
O-RING Price: $8.49 |
| 16 |
97595-05516-00 |
BOLT, WITH WASHER Price: $1.55 |
| 17 |
6GR-82553-00-00 |
EXTENSION, WIRE LEAD Price: $49.10 |
| 18 |
90464-36005-00 |
CLAMP Price: $0.99 |
| 19 |
90464-55002-00 |
CLAMP Price: $1.80 |
| 20 |
6GR-4381J-00-00 |
PLATE Price: $8.25 |
| 21 |
90111-06144-00 |
BOLT,HEX. SOCKET BUTTON Price: $4.15 |
| 22 |
6GR-4382A-00-00 |
ADAPTOR 1 Price: $20.55 |
| 23 |
90149-05044-00 |
SCREW Price: $3.45 |
| 24 |
6GR-43126-00-00 |
PIN, UPPER SHOCK MOU Price: $120.35 |
| 25 |
93210-06ME6-00 |
O-RING Price: $3.55 |
| 26 |
6GR-42401-23-00 |
POWER STEERING CYL Price: $11,610.65 |
| 27 |
6GR-44331-00-00 |
BOLT, 1 Price: $11.35 |
| 28 |
6GR-44332-00-00 |
BOLT, 2 Price: $6.15 |
| 29 |
97580-08535-00 |
BOLT, WITH WASHER Price: $10.90 |
| 30 |
6GR-42134-00-00 |
COVER Price: $29.50 |
| 31 |
91380-04010-00 |
BOLT Price: $8.49 |
| 32 |
6GR-438A0-02-00 |
STEERING, WIRE HARNESS ASSY Price: $666.10 |
| 33 |
6GR-48538-00-00 |
CLAMP, CABLE 1 Price: $12.30 |
| 34 |
97D95-06018-00 |
BOLT, HEXAGON DEEP R Price: $0.80 |
| 35 |
6GR-47716-00-00 |
COVER Price: $17.85 |
| 36 |
90110-06191-00 |
BOLT, HEXAGON SOCKET HEAD Price: $3.20 |
| 37 |
6GR-43121-00-00 |
PROTECTOR Price: $12.15 |
| 38 |
6GR-47445-00-00 |
PROTECTOR Price: $10.35 |
| 39 |
95D95-06012-00 |
BOLT, FLANGE DEEP Price: $0.95 |
| 40 |
90464-12183-00 |
CLAMP Price: $3.50 |
| 41 |
6GR-48539-00-00 |
CLAMP, CABLE 2 Price: $12.70 |
| 42 |
95D95-06012-00 |
BOLT, FLANGE DEEP Price: $0.95 |
| 43 |
90179-14009-00 |
NUT Price: $27.25 |
| 44 |
6GR-43378-10-00 |
WASHER Price: $12.30 |
