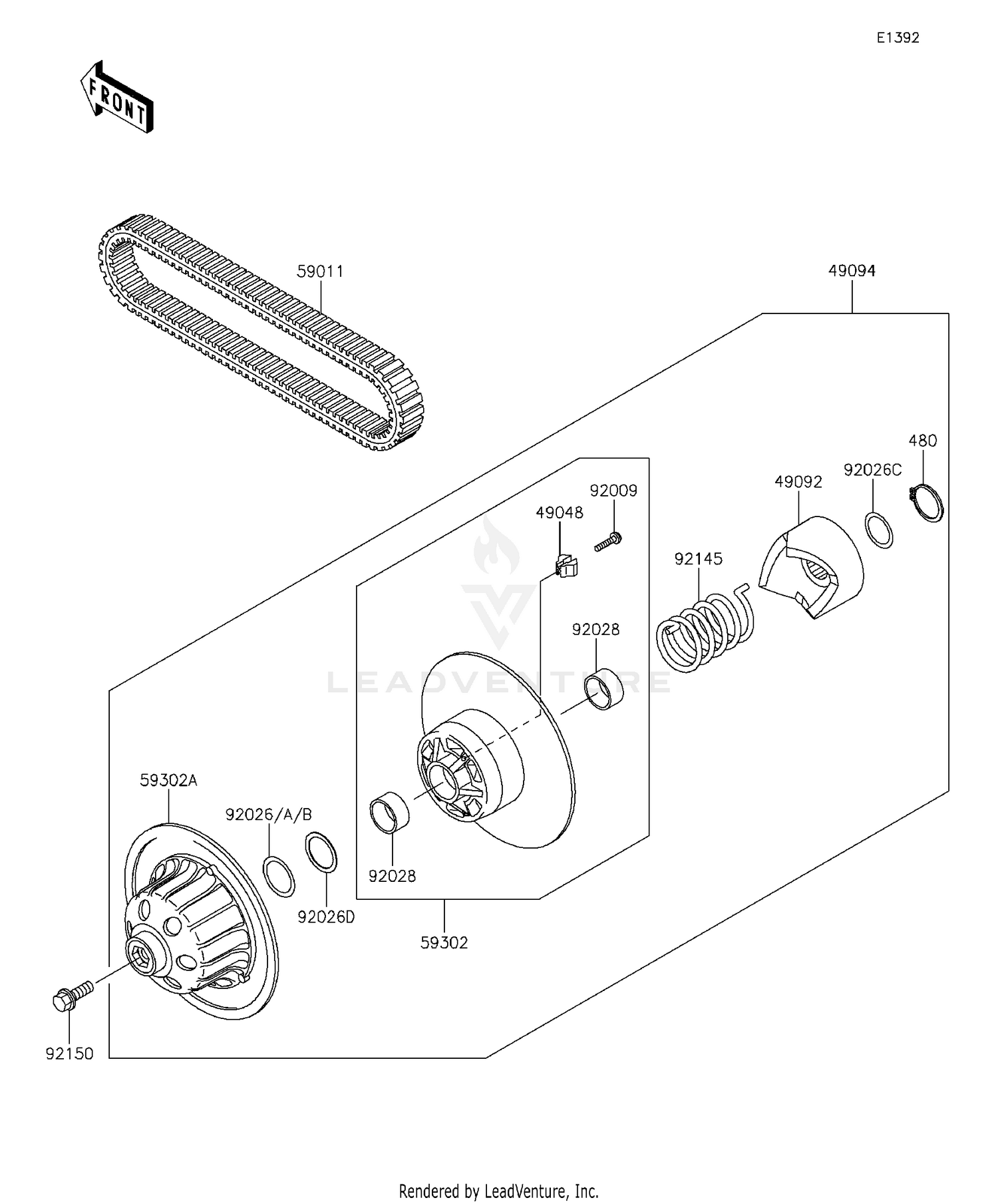

Driven Converter/Drive Belt
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 480 | 480J3400 | CIRCLIP-TYPE-C,34MM Price: $2.31 |
| 49048 | 49048-1060 | SHOE Price: $6.22 |
| 49092 | 49092-1068 | RAMP Price: $54.18 |
| 49094 | 49094-0045 | CONVERTER-ASSY-DRIVEN Price: $666.17 |
| 59011 | 59011-1077 | BELT,CONVERTER Price: $122.72 |
| 59302 | 59302-0031 | SHEAVE-COMP,MOVABLE Price: $335.78 |
| 59302A | 59302-0032 | SHEAVE-COMP Price: $365.73 |
| 92009 | 92009-1849 | SCREW,SHOE Price: $2.46 |
| 92026 | 92026-1507 | SPACER,39X50X0.50 Price: $7.68 |
| 92026A | 92026-1508 | SPACER,39X50X0.60 Price: $7.68 |
| 92026B | 92026-1510 | SPACER,39X50X0.80 Price: $7.68 |
| 92026C | 92026-1521 | SPACER,34X44X0.80 Price: $5.00 |
| 92026D | 92026-1603 | SPACER,39X49.5X1.0 Price: $7.63 |
| 92028 | 92028-1864 | BUSHING Price: $8.90 |
| 92145 | 92145-1404 | SPRING Price: $13.39 |
