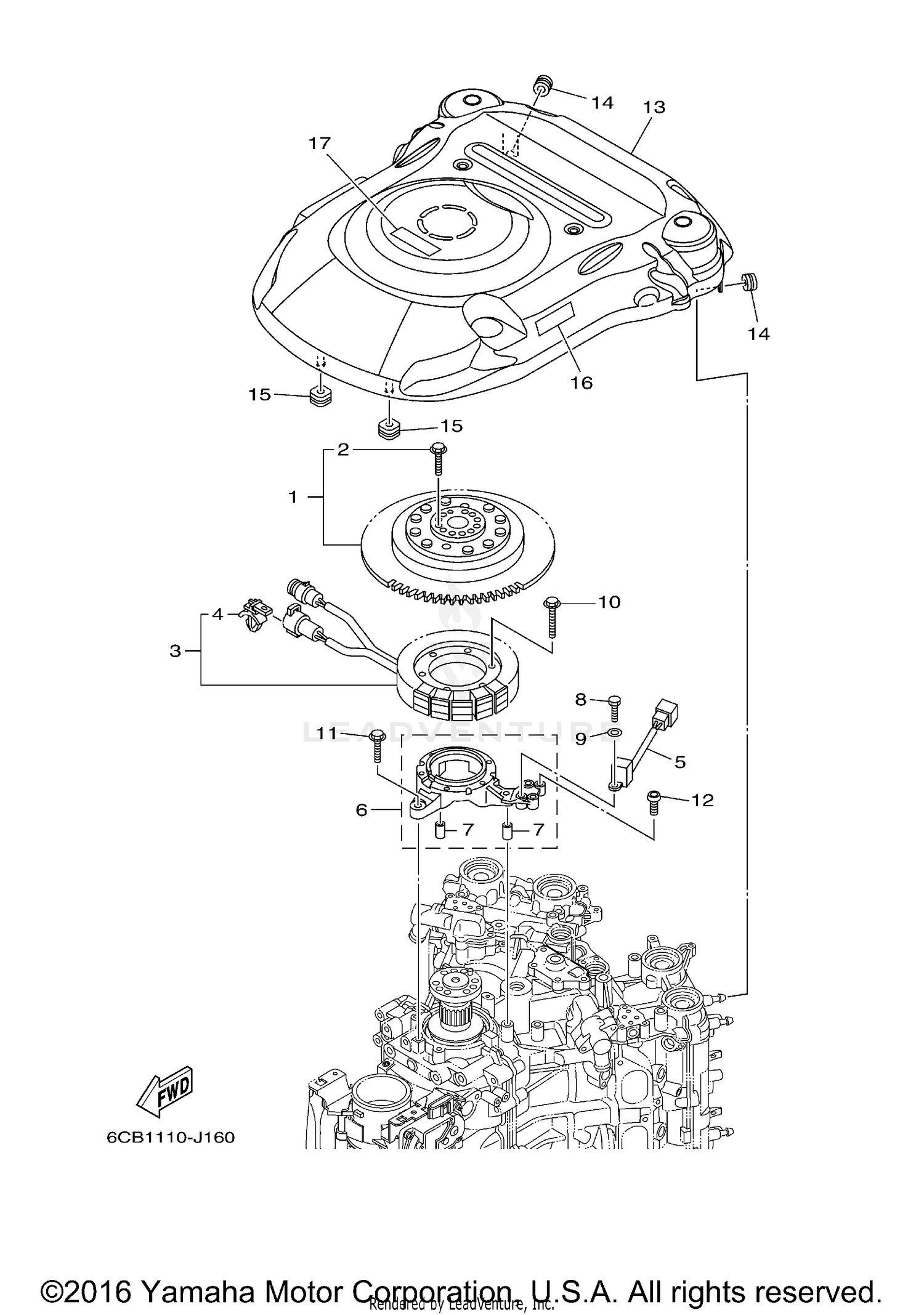

GENERATOR
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6CB-W8145-00-00 | ROTOR ASSY WITH BOLTS Price: $910.50 |
| 2 | 6EK-W9010-00-00 | BOLT SET This part replaces 6AW-W9011-00-00. Price: $79.90 |
| 3 | 6CB-81410-00-00 | STATOR ASSY Price: $658.50 |
| 4 | 90464-12002-00 | CLAMP Price: $4.75 |
| 5 | 6CB-85580-01-00 | COIL, PULSER This part replaces 6CB-85580-00-00. Price: $98.10 |
| 6 | 6CB-85561-00-00 | BASE, MAGNETO Price: $129.85 |
| 7 | 99530-08012-00 | PIN, DOWEL Price: $6.60 |
| 8 | 97095-05020-00 | BOLT Price: $2.10 |
| 9 | 92990-05600-00 | WASHER, PLATE This part replaces 92995-05600-00. Price: $0.80 |
| 10 | 95022-06030-00 | BOLT, FLANGE Price: $1.80 |
| 11 | 95D95-06030-00 | BOLT, FLANGE DEEP This part replaces 95895-06030-00. Price: $5.35 |
| 12 | 92014-05012-00 | BOLT, BUTTON HEAD Price: $4.10 |
| 13 | 6CB-81337-09-00 | COVER, FLYWHEEL This part replaces 6CB-81337-00-00. Price: $107.60 |
| 14 | 90480-12X00-00 | GROMMET This part replaces 90480-12314-00. Price: $1.25 |
| 15 | 6CB-85516-01-00 | SPACER This part replaces 6CB-85516-00-00. Price: $4.40 |
| 16 | 6CB-13437-40-00 | MARK, CAUTION Price: $5.50 |
