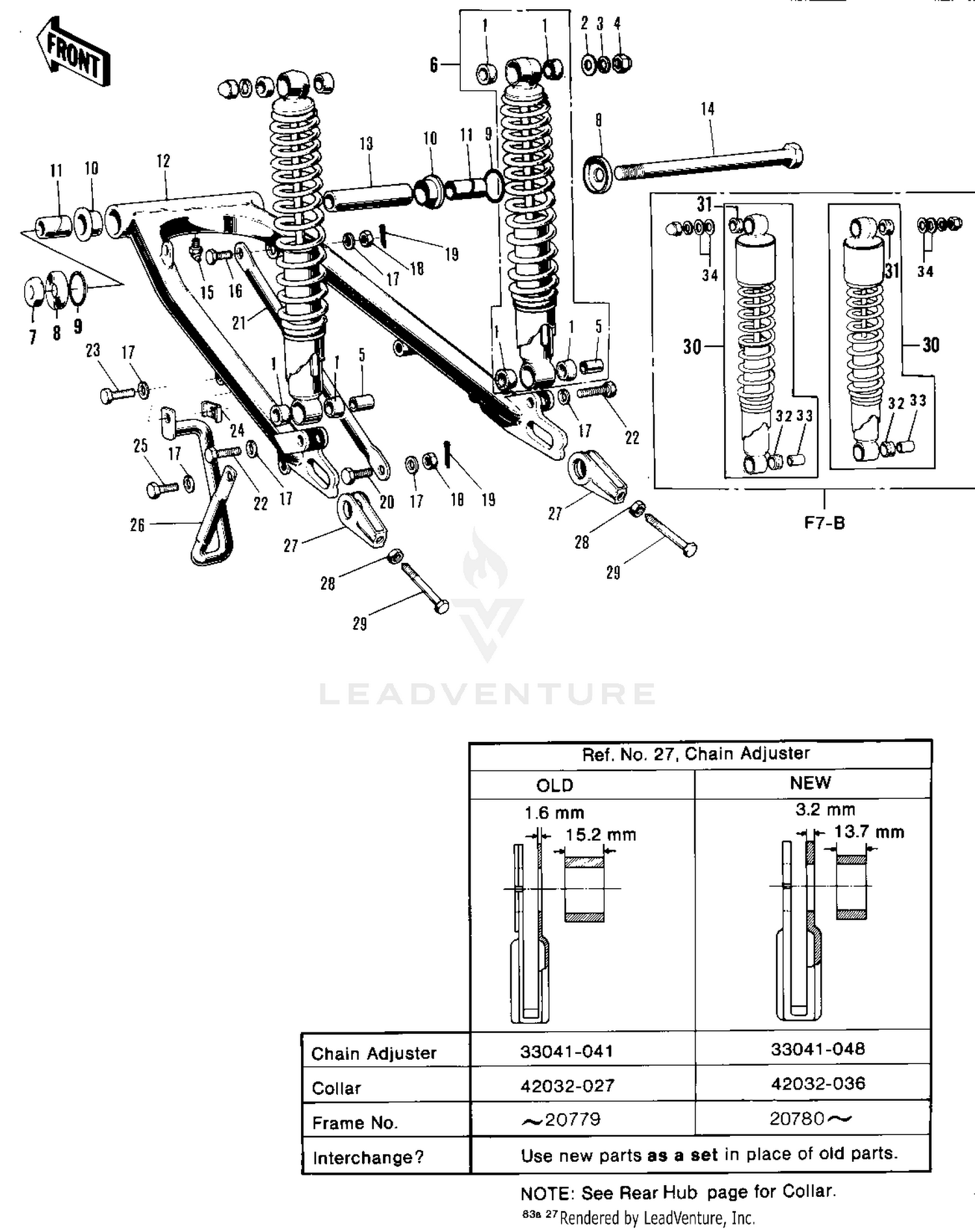

| Ref | Part Number | Description |
|---|
| 3 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 4 |
92020-003 |
NUT,CAP,10MM Price: $6.52 |
| 7 |
92210-1373 |
NUT,LOCK,12MM This part replaces 92019-009. Price: $7.29 |
| 8 |
33035-005 |
CAP-SWINGING ARM Price: $8.37 |
| 10 |
33033-009 |
BUSHING-SWING ARM Price: $99.19 |
| 11 |
33034-016 |
SLEEVE-SWINGING ARM Price: $21.33 |
| 12 |
33001-035 |
ARM-SWING Price: $110.06 |
| 13 |
33036-002 |
COLLAR SWING ARM Price: $12.51 |
| 14 |
33032-029 |
SHAFT-SWING ARM PIVOT Price: $30.47 |
| 15 |
92005-002 |
GREASE NIPPLE Price: $8.07 |
| 16 |
92003-017 |
BOLT TORQUE LINK FIT Price: $5.68 |
| 17 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 18 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 19 |
550AA2015 |
PIN-COTTER,2.0X15 This part replaces 550D2015. Price: $1.12 |
| 20 |
92150-1872 |
BOLT,10X32 This part replaces 92003-003. Price: $6.22 |
| 21 |
43007-018 |
TORQUE LINK REAR BRK Price: $12.67 |
| 22 |
112N1035 |
BOLT-UPSET This part replaces 113N1035. Price: $9.83 |
| 23 |
92151-1369 |
BOLT,FLANGED,10X50 This part replaces 92001-1254. Price: $4.38 |
| 24 |
92017-009 |
NUT-CHAIN GUARD FIT Price: $1.23 |
| 25 |
113G1018 |
BOLT,HEX HEAD,10X18 Price: $5.21 |
| 26 |
55020-005 |
GUARD-CHAIN Price: $20.38 |
| 28 |
318AA0800 |
NUT-HEX-SMALL,8MM This part replaces 312B0800. Price: $0.59 |
| 29 |
92002-1076 |
BOLT,8X50 This part replaces 92001-1399. Price: $9.48 |
