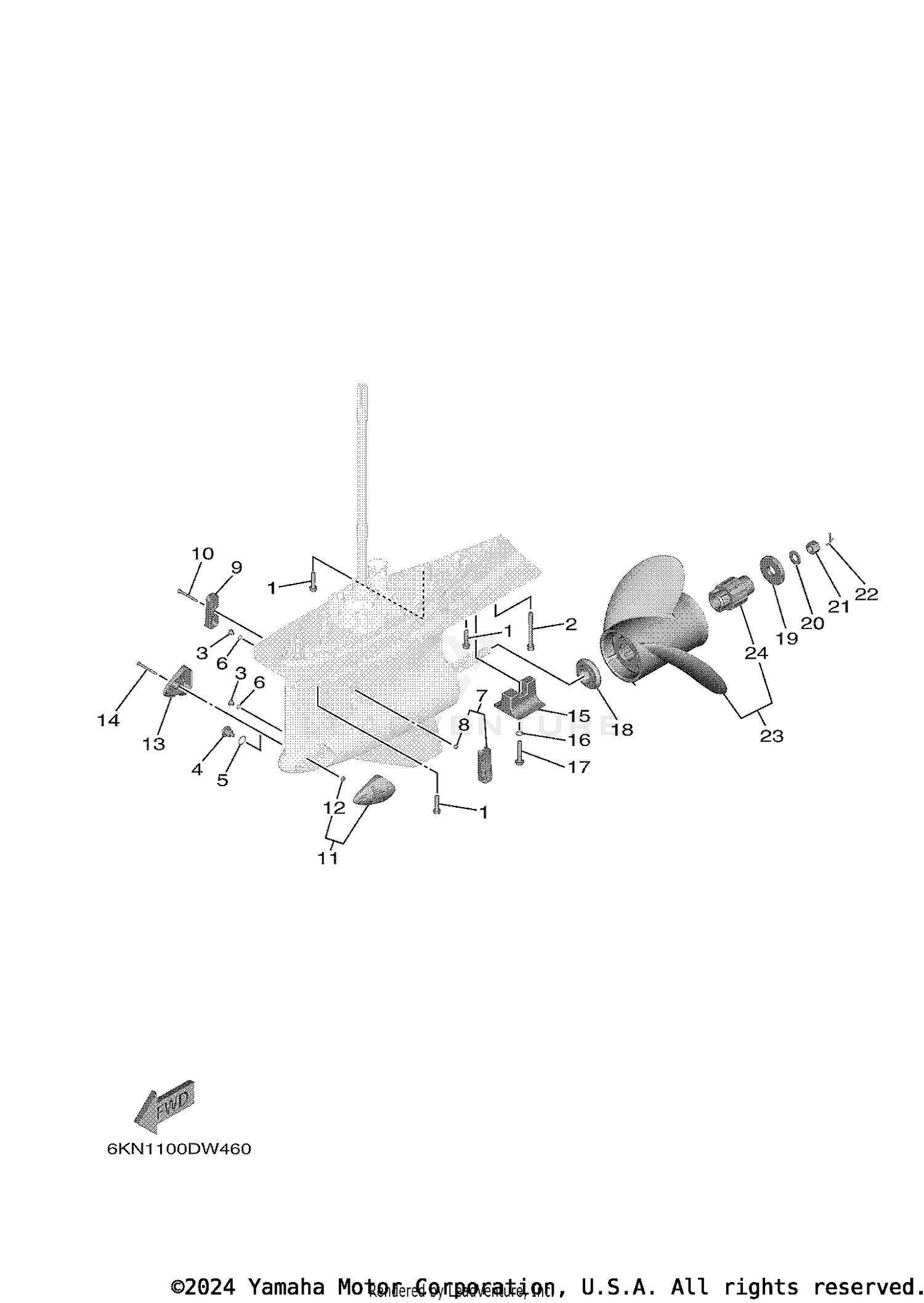

| Ref | Part Number | Description |
|---|
| 3 |
90340-08003-00 |
PLUG, STRAIGHT SCREW Price: $4.40 |
| 4 |
6GR-45341-00-00 |
PLUG, DRAIN Price: $37.90 |
| 5 |
93210-19123-00 |
O-RING Price: $8.99 |
| 6 |
93210-09350-00 |
O-RING This part replaces 93210-09165-00. Price: $7.49 |
| 7 |
6GR-45214-01-00 |
COVER, WATER INLET 1 Price: $11.35 |
| 8 |
90185-06M07-00 |
NUT, SELF-LOCKING Price: $3.15 |
| 9 |
6GR-45215-01-00 |
COVER, WATER INLET 2 Price: $10.00 |
| 10 |
90110-06425-00 |
BOLT, HEXAGON SOCKET Price: $2.15 |
| 11 |
6KN-45224-00-00 |
COVER, WATER INLET Price: $13.50 |
| 12 |
90185-06M07-00 |
NUT, SELF-LOCKING Price: $3.15 |
| 13 |
6KN-45225-00-00 |
COVER, WATER INLET Price: $14.05 |
| 14 |
90110-06425-00 |
BOLT, HEXAGON SOCKET Price: $2.15 |
| 15 |
6AW-45373-00-00 |
ANODE Price: $26.35 |
| 16 |
92990-10300-00 |
WASHER Price: $2.70 |
| 17 |
90105-10257-00 |
BOLT, FLANGE Price: $7.40 |
| 18 |
6GR-45987-00-00 |
SPACER 1 Price: $190.70 |
| 19 |
6GR-45997-00-00 |
SPACER 2 Price: $118.00 |
| 20 |
90201-19M01-00 |
WASHER, PLATE Price: $17.35 |
| 21 |
90171-18M04-00 |
NUT, CASTLE Price: $20.20 |
| 22 |
91490-40030-00 |
PIN. COTTER Price: $4.50 |
