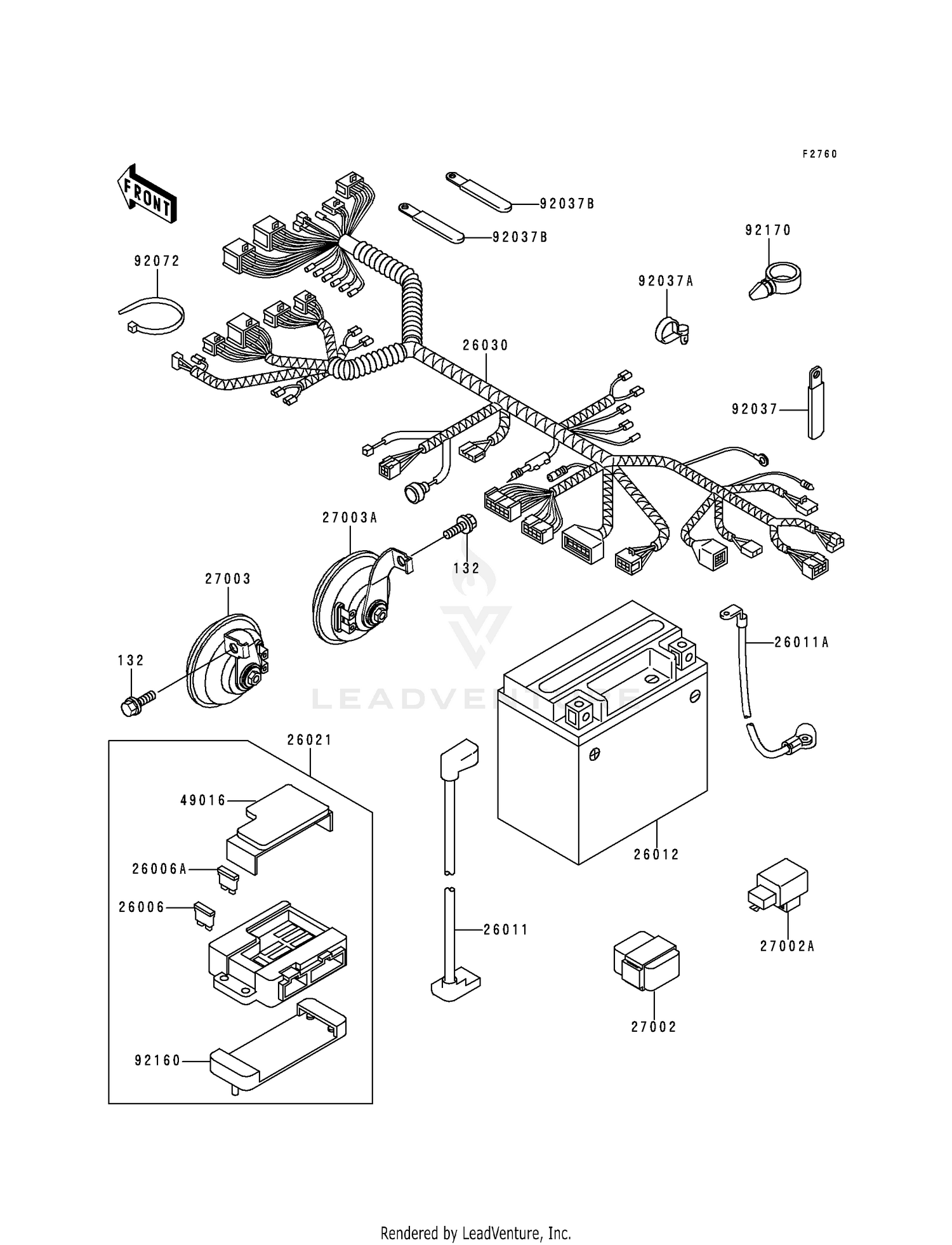

CHASSIS ELECTRICAL EQUIPMENT

CHASSIS ELECTRICAL EQUIPMENT

Parts (18)

RefPart NumberDescription
132 132BB0812 BOLT-FLANGED-SMALL,8X12 This part replaces 132J0812. Price: $1.81
26006 26006-1006 FUSE,BLADE,30A,GREEN This part replaces 26006-1067. Price: $4.96
26006A 26006-1007 FUSE,BLADE,10A,RED This part replaces 26006-1068. Price: $4.96
26011 26011-1652 WIRE-LEAD,BATTERY(+) Price: $33.02
26011A 26011-1653 WIRE-LEAD,BATTERY(-) Price: $35.21
26012 26012-1279 YTX14-BS,12V 12AH This part replaces 26012-1334. Price: $123.84
26021 26021-0070 JUNCTION BOX This part replaces 26021-1096. Price: $168.61
26030 26030-1629 HARNESS,MAIN Price: $352.70
27002 27002-1078 RELAY-ASSY,HEAD LAMP Price: $85.74
27002A 27002-1101 RELAY-ASSY,TURN SIGNAL Price: $72.36
27003 27003-1402 HORN,LH Price: $92.47
27003A 27003-1403 HORN,RH Price: $92.47
49016 49016-1177 COVER-SEAL,FUSE Price: $9.54
92037 92171-0652 CLAMP,L=60 This part replaces 92037-1069. Price: $2.61
92037A 92037-1903 CLAMP,SPEED,L=80.5 Price: $7.84
92037B 92037-1993 CLAMP Price: $5.52
92072 92072-1237 BAND,L=250 Price: $2.14
92160 92160-1650 DAMPER,JUNCTION BOX Price: $13.44
