| Ref | Part Number | Description |
|---|
| 2 |
420640836 |
Hex. Collar Screw M8 X 75 Price: $13.49 |
| 3 |
420640433 |
Collar Hex Screw M8 X 45 This part replaces 420640431. Price: $2.09 |
| 4 |
420640312 |
Allen Screw M6 x 45 This part replaces 420640311. Price: $4.49 |
| 5 |
420840403 |
Allen Screw M6 x 22 This part replaces 420840401. Price: $1.49 |
| 6 |
205063044 |
Socket Head Screw M6 X 30 Price: $1.69 |
| 7 |
420632010 |
Center Pin 8 X 12 Price: $4.09 |
| 8 |
420860965 |
Cable Grommet Price: $14.49 |
| 9 |
420960770 |
Cap Price: $4.19 |
| 10 |
420232100 |
Ball Bearing Price: $20.99 |
| 11 |
420956511 |
Check Valve This part replaces 420956510. Price: $36.99 |
| 13 |
Not |
Available As Spare Part - Step Collar |
| 14 |
420230195 |
Oil Seal Price: $15.99 |
| 15 |
420232100 |
Ball Bearing Price: $20.99 |
| 16 |
420650371 |
Rotary Seal This part replaces 420650370. Price: $44.99 |
| 17 |
420950890 |
O-Ring Price: $4.49 |
| 18 |
Not |
Available As Spare Part - Water Pump/Oil Pump Shaft |
| 19 |
420840514 |
Allen Screw M5 x 16 This part replaces 420840511. Price: $1.99 |
| 20 |
420227945 |
Thrust Washer Price: $4.09 |
| 21 |
420222505 |
Water Impeller Price: $19.99 |
| 22 |
420931811 |
Gasket This part replaces 420931810. Price: $13.99 |
| 23 |
420922630 |
Water Pump Housing Price: $62.99 |
| 24 |
420240034 |
Hex. Screw M6 X 25 This part replaces 420240031. Price: $1.99 |
| 25 |
293300041 |
O-Ring Price: $8.79 |
| 26 |
420888780 |
Oil Pump Ass'y Price: $419.99 |
| 27 |
420941928 |
Taptite Screw M5 X 16 This part replaces 420941925. Price: $0.50 |
| 28 |
219704404 |
Oil Hose 1500Mm Long Price: $17.49 |
| 29 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm Price: $124.99 |
| 30 |
420059312 |
Short Block 593 Price: $2,139.99 |
| 610 |
610A0408 |
ROLLER,4X8 Price: $4.31 |
| 11061 |
11061-0373 |
GASKET,10.5X16X1 Price: $3.67 |

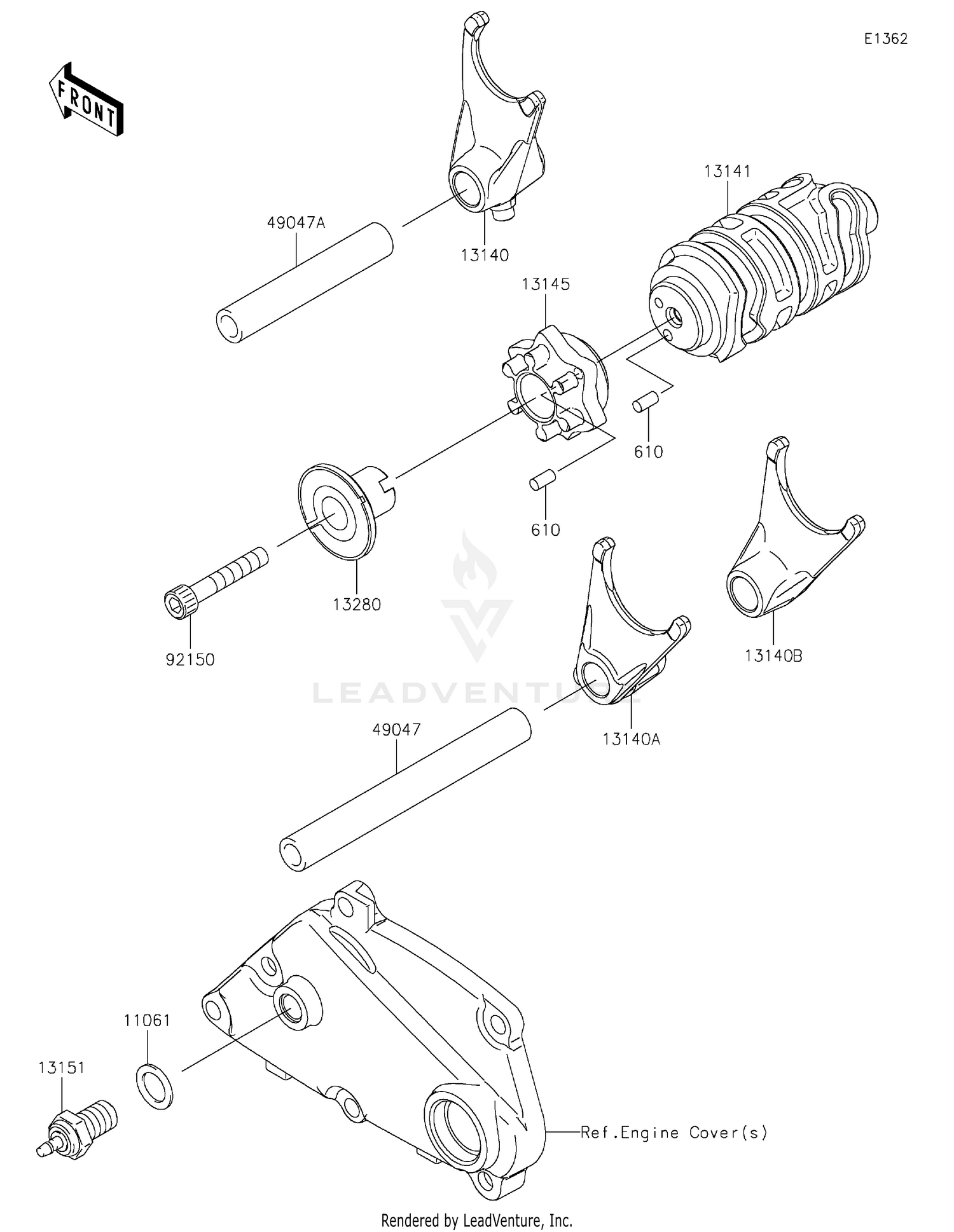

| 13140 |
13140-0632 |
FORK-SHIFT,5TH&6TH Price: $84.71 |
| 13140A |
13140-0633 |
FORK-SHIFT,2ND&4TH Price: $84.71 |
| 13140B |
13140-0634 |
FORK-SHIFT,1ST&3RD Price: $84.71 |
| 13141 |
13141-0578 |
DRUM-CHANGE Price: $116.68 |
| 13145 |
13145-0559 |
CAM-CHANGE DRUM Price: $41.62 |
| 13151 |
13151-1080 |
SWITCH-COMP,NEUTRAL This part replaces 13151-1102. Price: $10.38 |
| 13280 |
13280-0769 |
HOLDER,CHANGE DRUM Price: $30.87 |
| 49047 |
49047-1056 |
ROD-SHIFT,L=106.7 Price: $23.25 |
| 49047A |
49047-1057 |
ROD-SHIFT,L=71.7 Price: $17.44 |
