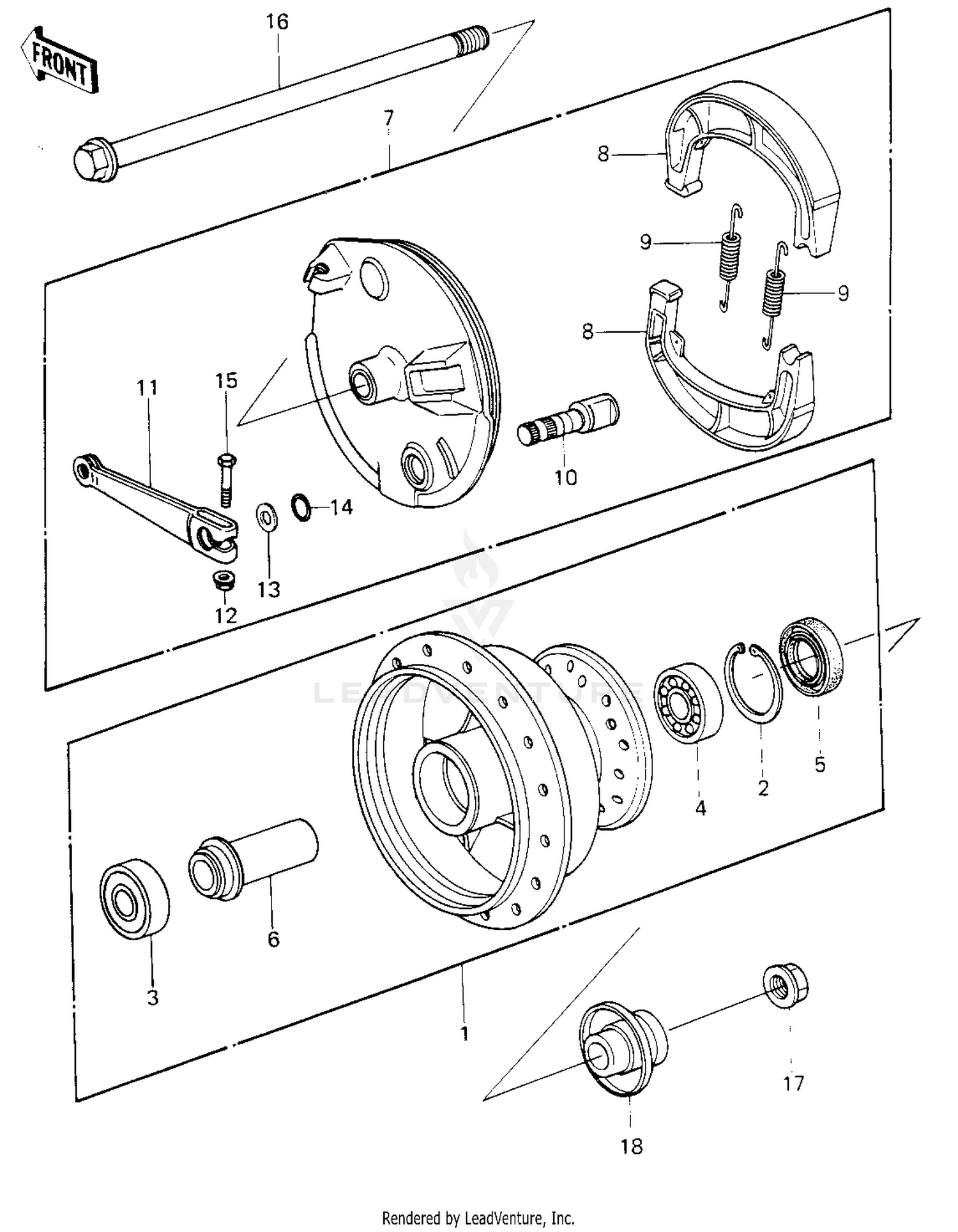

| Ref | Part Number | Description |
|---|
| 1 |
41034-1013 |
DRUM-ASSY,FR BRK Price: $150.27 |
| 2 |
481J3500 |
CIRCLIP-TYPE-C,35MM Price: $1.96 |
| 3 |
601B6200U |
BEARING,BALL,#6200U Price: $21.06 |
| 4 |
601B6300 |
BEARING,BALL,#6300 Price: $20.60 |
| 5 |
654A203507 |
OIL SEAL,20X35X7 Price: $11.40 |
| 6 |
92027-1093 |
COLLAR,FRONT BRAKE Price: $11.06 |
| 7 |
41035-1037 |
PANEL-ASY,FR BRK Price: $205.85 |
| 8 |
41048-1109 |
SHOE-BRAKE This part replaces 41048-1021. Price: $29.61 |
| 9 |
92081-1766 |
SPRING,BRAKE SHOE Price: $8.03 |
| 10 |
41050-1009 |
CAM,BRAKE,FRONT Price: $17.21 |
| 11 |
41053-1011 |
LEVER,BRAKE CAM,FRONT Price: $48.79 |
| 12 |
41072-007 |
NUT,6MM Price: $3.92 |
| 13 |
92022-257 |
WASHER Price: $13.20 |
| 14 |
670B2012 |
O RING,12MM Price: $3.23 |
| 15 |
92001-1135 |
BOLT,HEX HEAD,6X30 Price: $4.45 |
| 16 |
41068-1011 |
AXLE,FRONT Price: $35.00 |
| 17 |
92015-1415 |
NUT,FLANGED,10MM Price: $4.69 |
