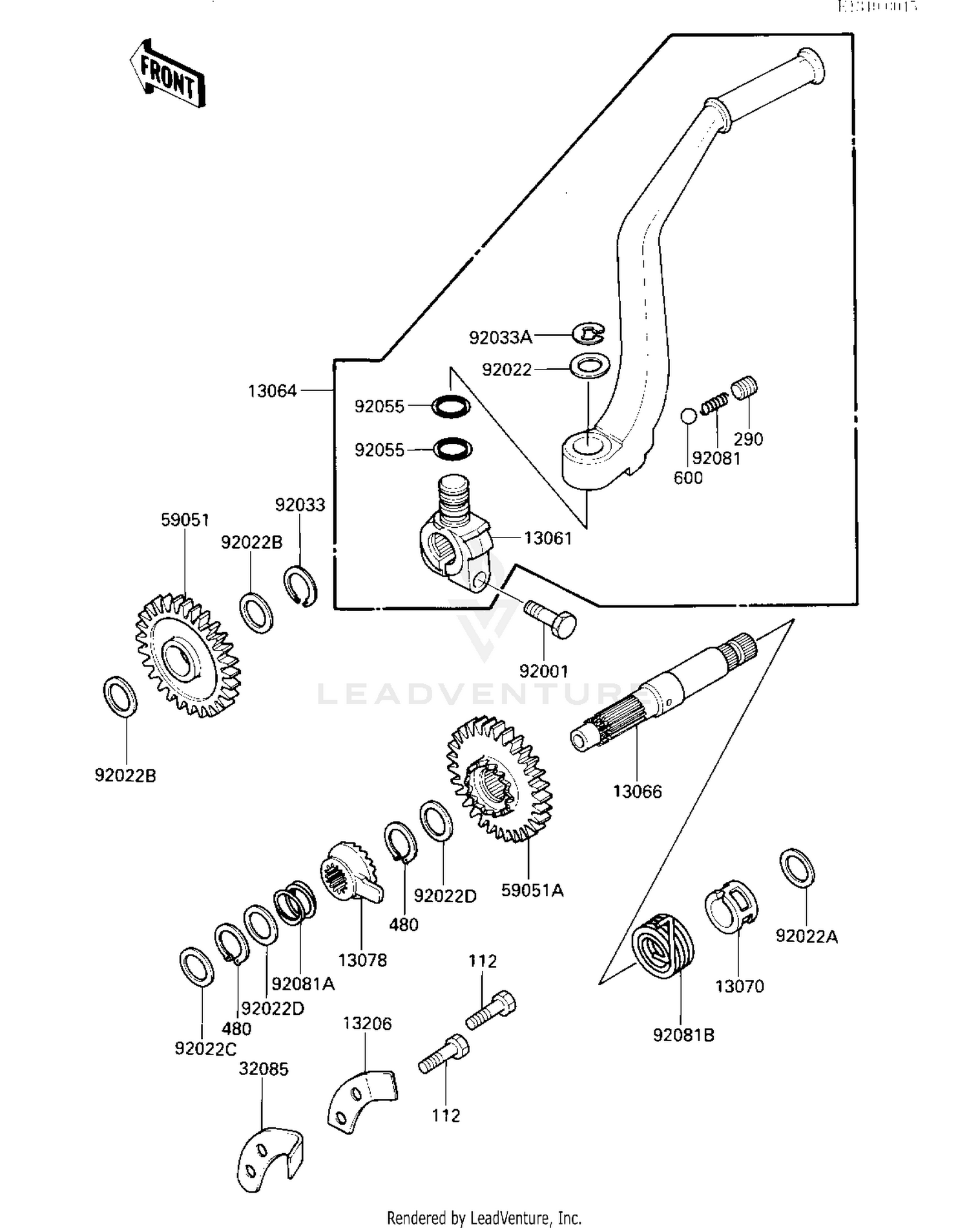

| Ref | Part Number | Description |
|---|
| 112 |
112BA0618 |
BOLT-UPSET This part replaces 112G0618. Price: $1.03 |
| 290 |
290Q0808 |
SCREW,8X8 Price: $4.78 |
| 480 |
480J1600 |
CIRCLIP-TYPE-C,16MM Price: $4.31 |
| 13061 |
13061-1131 |
BOSS,KICK PEDAL Price: $78.36 |
| 13064 |
13064-1121 |
LEVER-ASSY-KICK,PEDAL Price: $132.86 |
| 13066 |
13066-1088 |
SHAFT-KICK This part replaces 13066-1059. Price: $106.55 |
| 13070 |
13070-011 |
GUID,KICKSTARTER SPRG Price: $9.82 |
| 13078 |
13078-1052 |
RATCHET,KL250-D2 Price: $66.54 |
| 13206 |
13206-1054 |
GUIDE-KICK Price: $11.80 |
| 32085 |
32085-1027 |
STOPPER,KICK Price: $9.05 |
| 59051 |
59051-1120 |
GEAR-SPUR,IDLE,28T Price: $150.55 |
| 59051A |
59051-1131 |
GEAR-SPUR,KICK,29T Price: $128.52 |
| 92001 |
92001-1042 |
BOLT,HEX HEAD,8X28 Price: $6.69 |
| 92022 |
92022-1019 |
WASHER,PLAIN Price: $5.23 |
| 92022A |
92022-118 |
WASHER THRUST Price: $4.69 |
| 92022B |
92022-1614 |
WASHER,17.3X25X0.5 Price: $4.31 |
| 92022C |
92022-269 |
WASHER,PLAIN Price: $1.25 |
| 92022D |
92022-315 |
WASHER,16.8X22X0.5 Price: $6.22 |
| 92033 |
92033-032 |
RING-SNAP Price: $4.96 |
| 92033A |
92033-1166 |
RING-SNAP,10MM Price: $3.89 |
| 92055 |
92055-061 |
O RING Price: $4.78 |
| 92081 |
92081-020 |
SPRING,KICK PEDAL Price: $4.26 |
| 92081A |
92081-122 |
SPRING,RATCHET Price: $8.79 |
| 92081B |
92082-003 |
SPRING-KICKSTARTER Price: $28.46 |
