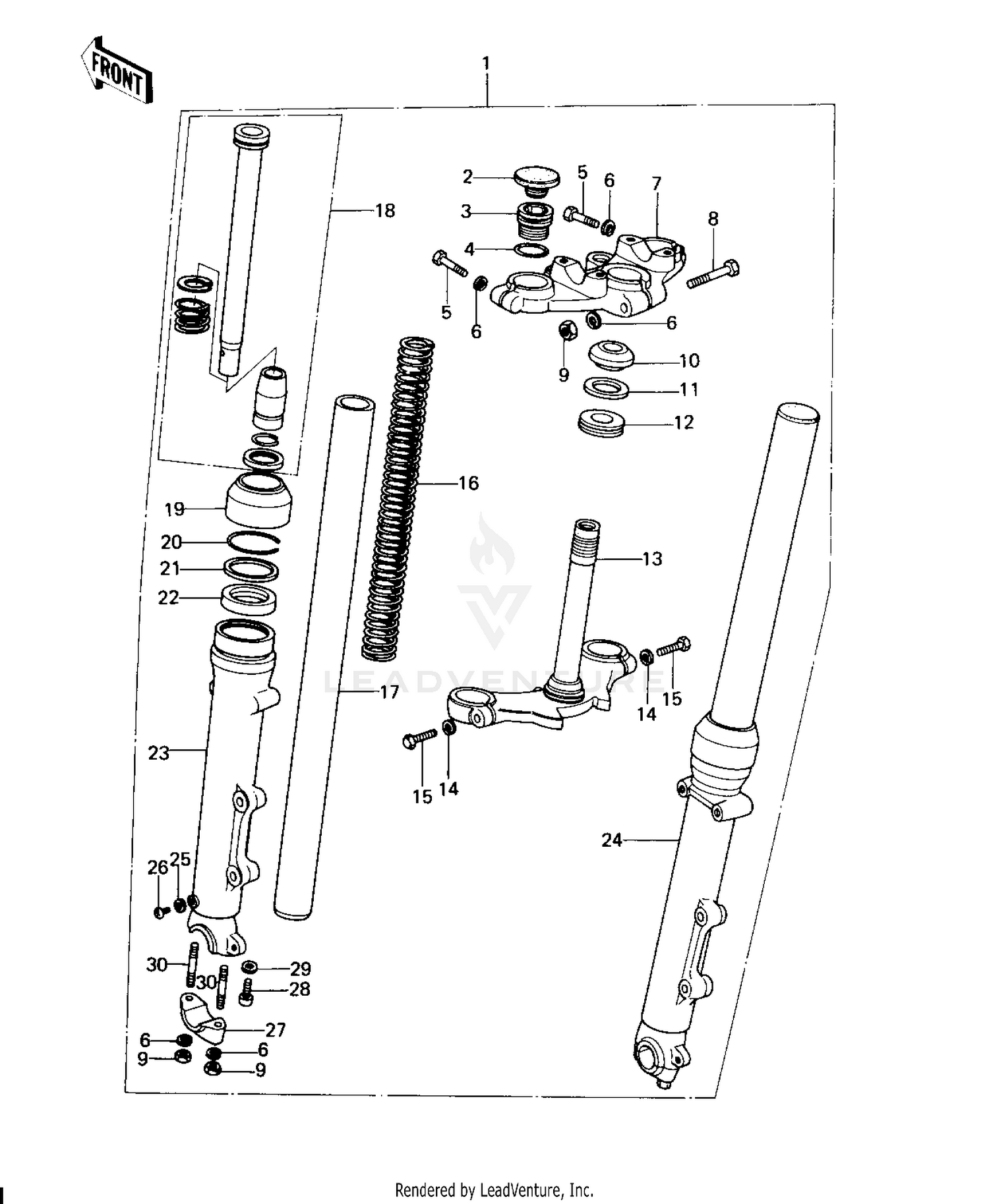

| Ref | Part Number | Description |
|---|
| 1 |
44001-1200 |
FORK-FRONT Price: $945.07 |
| 2 |
11012-1017 |
CAP,RUBBER Price: $11.49 |
| 3 |
44029-1046 |
SEAT-FORK SPRING Price: $22.33 |
| 4 |
92055-1012 |
O RING,FORK TOP Price: $8.50 |
| 5 |
44041-045 |
BOLT-HEX HEAD.8M/M Price: $25.59 |
| 6 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 7 |
44039-076 |
HEAD,STEERING STEM Price: $214.50 |
| 8 |
44041-042 |
BOLT-STEERING STEM HD Price: $5.13 |
| 9 |
92015-1124 |
NUT,LOCK,8MM Price: $5.42 |
| 10 |
92048-0033 |
RACE,STEERING STEM BEARING This part replaces 92047-012. Price: $14.60 |
| 11 |
92022-231 |
WASHER,30.5X50X0.6 Price: $4.69 |
| 12 |
92056-003 |
SEAL-OIL,STEERING STEM Price: $8.86 |
| 13 |
44037-108 |
STEM,STEERING This part replaces 44037-107. Price: $453.37 |
| 14 |
461DA1200 |
WASHER-SPRING,12MM This part replaces 461F1200. Price: $1.03 |
| 15 |
92003-064 |
BOLT-HEX HEAD,12X36 Price: $25.59 |
| 16 |
44026-1012 |
SPRING,FORK Price: $75.70 |
| 17 |
44013-1011 |
TUBE,FORK INNER Price: $291.02 |
| 18 |
44022-1009 |
CYLINDER-FORK Price: $96.58 |
| 19 |
44010-032 |
DUST SHEILD,FORK Price: $39.46 |
| 20 |
44044-012 |
CIRCLIP-OIL SEAL FIT Price: $29.65 |
| 21 |
44043-044 |
WASHER-OIL SEAL FIT Price: $13.51 |
| 22 |
92049-1216 |
SEAL-OIL,FORK OUTER P Price: $23.21 |
| 23 |
44005-1012 |
TUBE,LH,FORK OUTER Price: $220.81 |
| 24 |
44006-1012 |
TUBE,RH,FORK OUTER Price: $214.03 |
| 25 |
44045-002 |
GASKET,FORK DRAIN PLUG Price: $5.18 |
| 26 |
220AA0408 |
SCREW-PAN-CROS,4X8 This part replaces 220B0408. Price: $0.68 |
| 27 |
44063-014 |
HOLDER,FRONT AXLE Price: $33.28 |
| 28 |
44041-040 |
BOLT,SOCKET,FORK CYLINDER Price: $6.57 |
| 29 |
44045-057 |
GASKET,FORK CYLINDER Price: $4.86 |
