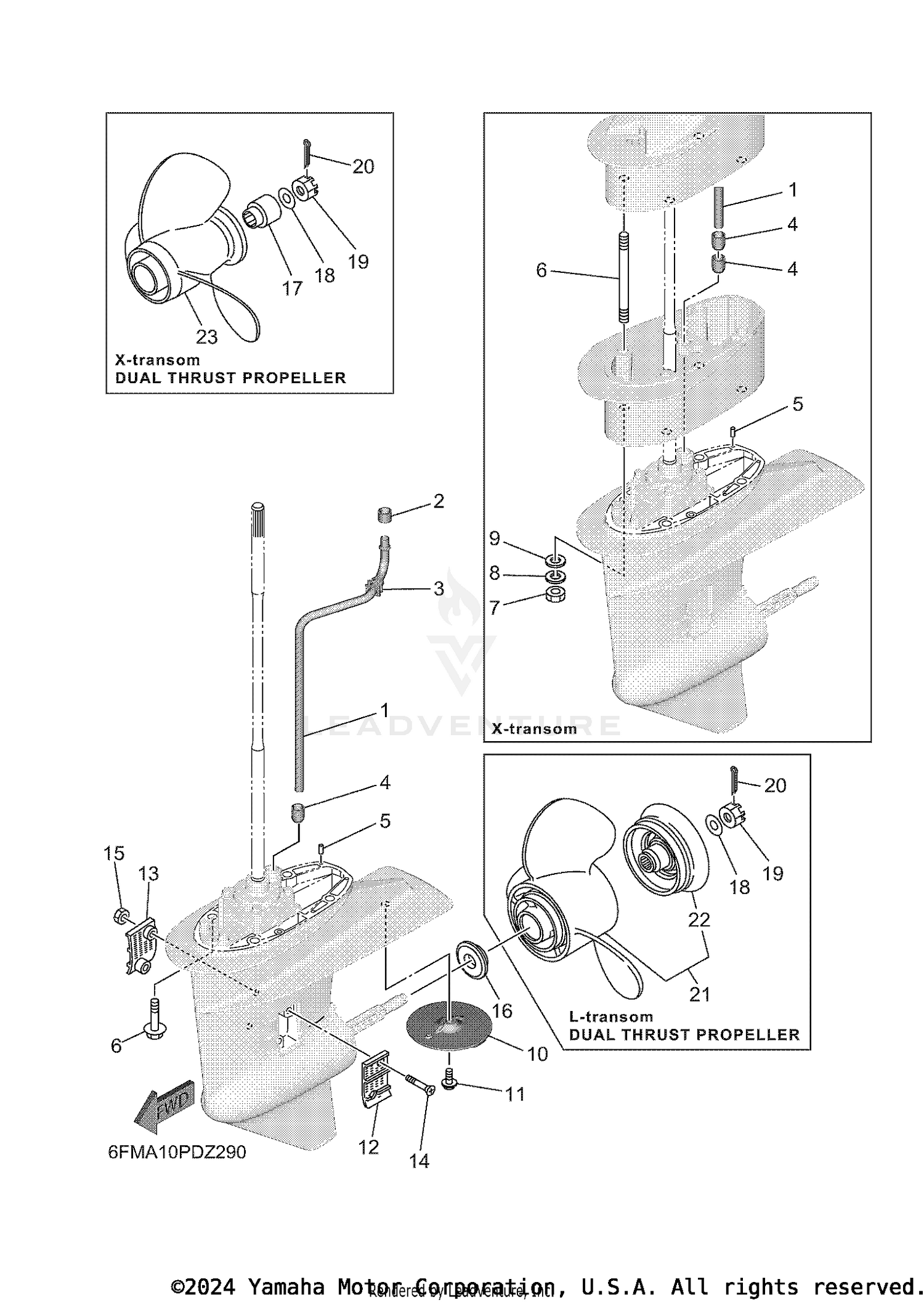

LOWER CASING DRIVE 2
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 682-44365-01-00 | WATER SEAL Price: $6.55 |
| 3 | 6AH-44365-01-00 | DAMPER, WATER SEAL 1 Price: $2.05 |
| 5 | 93604-10M03-00 | PIN, DOWEL This part replaces 93604-12M07-00. Price: $5.20 |
| 10 | 664-45371-01-00 | TAB-TRIM Price: $19.15 |
| 11 | 90105-08M02-00 | BOLT, FLANGE Price: $6.30 |
| 12 | 6L2-45214-00-00 | COVER, WATER INLET 1 Price: $10.70 |
| 13 | 6L2-45215-00-00 | COVER, WATER INLET 2 Price: $12.75 |
| 14 | 90151-05M05-00 | SCREW, COUNTERSUNK Price: $3.20 |
| 15 | 90185-05904-00 | NUT, SELF-LOCKING This part replaces 90185-05002-00. Price: $2.25 |
| 16 | 6L2-45987-01-00 | SPACER 1 Price: $29.40 |
| 18 | 92990-14200-00 | WASHER, PLAIN Price: $2.65 |
| 19 | 90171-14013-00 | NUT, CASTLE Price: $6.75 |
| 20 | 91490-30030-00 | PIN. COTTER This part replaces 91490-30025-00. Price: $8.49 |
