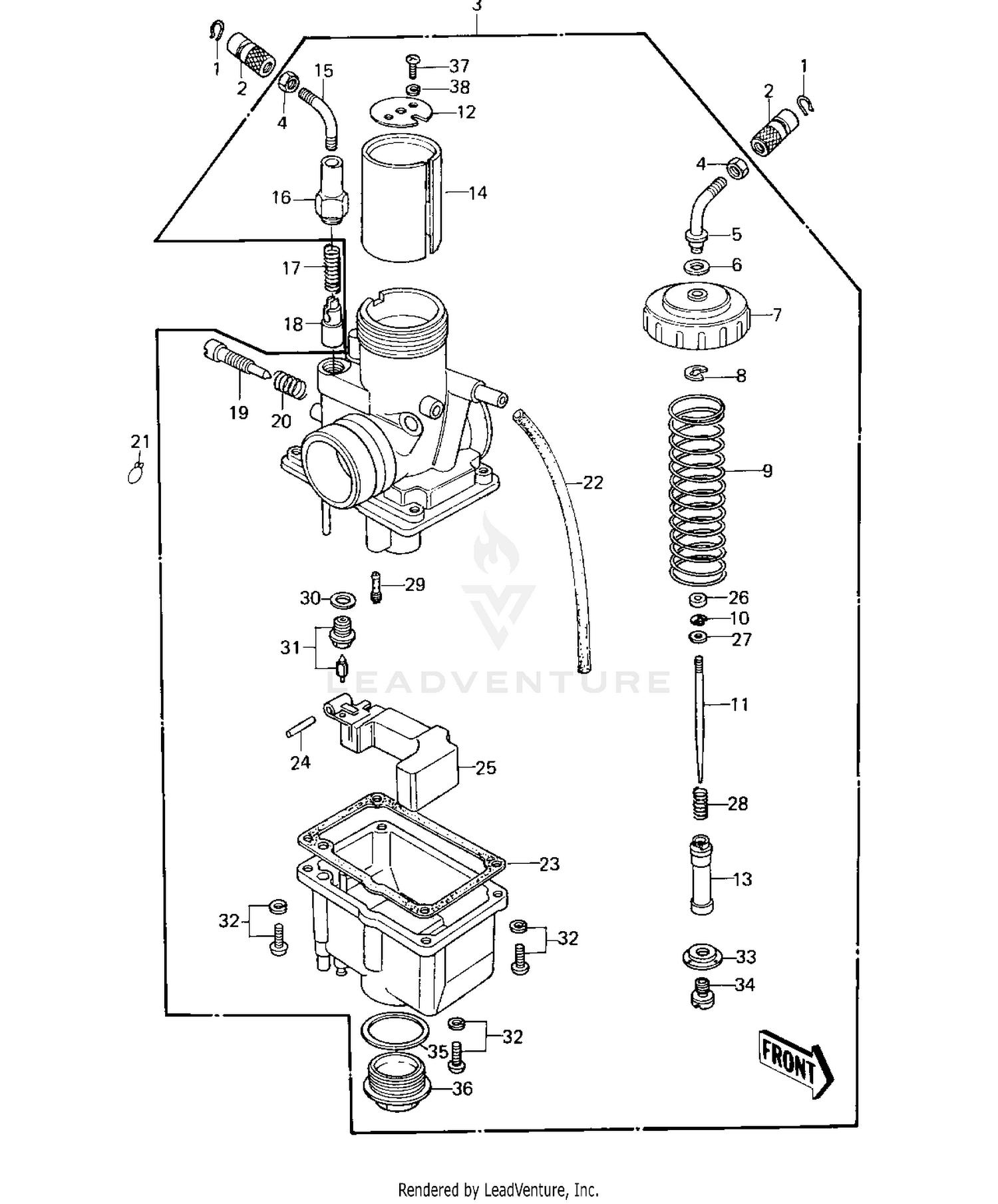

| Ref | Part Number | Description |
|---|
| 1 |
92036-018 |
RING-SNAP Price: $3.89 |
| 2 |
16002-007 |
CABLE ADJUSTER Price: $11.09 |
| 3 |
16001-1243 |
CARBURETOR ASSY Price: $277.29 |
| 4 |
16003-004 |
NUT CABLE ADJUST LOCK Price: $7.34 |
| 5 |
16077-011 |
GUIDE,CABLE Price: $20.65 |
| 6 |
16029-007 |
GASKET,CABLE GUIDE Price: $10.37 |
| 7 |
16004-024 |
CAP,MIXING CHAMBER Price: $15.77 |
| 8 |
16008-011 |
CIRCLIP,CABLE GUIDE Price: $6.85 |
| 9 |
16006-024 |
SPRING,THROTTLE VALV Price: $11.13 |
| 10 |
16008-010 |
CIRCLIP Price: $9.21 |
| 11 |
16009-1066 |
JET NEEDLE,5EL24 Price: $37.40 |
| 12 |
13169-1123 |
PLATE,THROTTLE VALVE Price: $6.63 |
| 13 |
16017-1062 |
NEEDLE JET,AO-0 Price: $42.25 |
| 14 |
16025-1018 |
VALVE,THROTTLE,CA2.5 Price: $63.71 |
| 15 |
16077-010 |
GUIDE,CABLE Price: $21.56 |
| 16 |
16012-017 |
CAP,STARTER PLUNGER Price: $23.04 |
| 17 |
16013-003 |
SPRING-PLUNGER Price: $6.16 |
| 18 |
16016-002 |
PLUNGER-ENRICHNER Price: $31.85 |
| 19 |
16021-023 |
SCREW,THROTTLE STOP Price: $23.41 |
| 20 |
16022-005 |
SPRING THR STOP SCREW Price: $8.68 |
| 21 |
92037-010 |
CLAMP,TUBE Price: $3.92 |
| 22 |
92059-1011 |
TUBE,CARB BREATHER Price: $10.78 |
| 23 |
16019-023 |
GASKET,FLOAT CHAMBER Price: $19.49 |
| 24 |
16032-006 |
FLOAT PIN Price: $7.29 |
| 25 |
16031-026 |
FLOAT Price: $67.26 |
| 26 |
92027-1403 |
COLLAR,25.2X29.8X10.4 Price: $11.39 |
| 27 |
92022-1024 |
WASHER,THROTTLE VALVE Price: $6.61 |
| 28 |
92081-1072 |
SPRING,JET NEEDLE Price: $5.54 |
| 29 |
92064-1020 |
PILOT JET,#A25 Price: $19.34 |
| 30 |
16029-004 |
GASKET,FLOAT VALVE SEAT Price: $3.89 |
| 31 |
16030-024 |
FLOAT VALVE ASSY Price: $53.06 |
| 32 |
223AA0414 |
SCREW-PAN-WS-CROS,4X14 This part replaces 223B0414. Price: $1.52 |
| 33 |
16008-012 |
RING,MAIN JET Price: $24.24 |
| 34 |
92063-1085 |
MAIN JET,#A92.5R Price: $12.14 |
| 35 |
16034-008 |
GASKET,MAIN JET COVER Price: $6.60 |
| 36 |
92001-146 |
BOLT,BANJO Price: $17.35 |
| 37 |
220AA0308 |
SCREW-PAN-CROS,3X8 This part replaces 220B0308. Price: $0.59 |
