| Ref | Part Number | Description |
|---|
| 2 |
420632010 |
Center Pin 8 X 12 Price: $4.09 |
| 3 |
420840415 |
Plug Screw M18 X 1.5 Price: $13.49 |
| 4 |
420240170 |
Plug Screw M18 X 1.5 - Call your local BRP dealership Price: $7.59 |
| 5 |
420956826 |
OIL SPRAY NOZZLE - Call your local BRP dealership This part replaces 420956774. Price: $16.49 |
| 6 |
420933852 |
Plain Bearing Price: $19.49 |
| 7 |
420933862 |
Plain Bearing Price: $20.49 |
| 8 |
420933140 |
Ring Half Price: $11.49 |
| 9 |
420240178 |
SCREW PLUG M16 X 1.5 - Call your local BRP dealership Price: $14.49 |
| 10 |
420940945 |
Torx Flange Screw M9 X 113 Price: $13.99 |
| 11 |
420840211 |
Torx Flange Screw M8 X 70 Price: $9.49 |
| 12 |
420440274 |
Torx Flange Screw M6 X 35 Price: $1.09 |
| 13 |
420430770 |
Gasket Price: $24.49 |
| 14 |
420611822 |
OIL SUMP COVER - Call your local BRP dealership Price: $104.99 |
| 15 |
420440649 |
FLANGED TORX SCREW M6 X 30 - Call your local BRP dealership Price: $0.95 |
| 16 |
420230150 |
Oil Seal Price: $2.79 |
| 17 |
420641733 |
Plug Screw M10 X 1 Price: $12.99 |
| 18 |
420241537 |
Hex Flat Head Screw M6 X 13 T30 This part replaces 420241535. Price: $3.29 |
| 19 |
420432125 |
Ball Bearing Price: $121.49 |
| 20 |
420431402 |
Oil Seal This part replaces 420431401. Price: $19.49 |
| 21 |
420430760 |
Gasket Price: $18.49 |
| 22 |
420611845 |
PTO Cover Price: $204.99 |
| 23 |
420440647 |
Torx Flange Screw M6 X 30 Price: $2.09 |
| 24 |
420641213 |
Torx Flange Screw M8 X 55 Price: $7.59 |
| 25 |
420910240 |
Oil Seal Cover Price: $17.49 |
| 26 |
420440906 |
Countersunk Screw M6 X 16 Price: $3.29 |
| 27 |
420893054 |
Engine Gasket Kit Price: $649.99 |
| 28 |
420120303 |
Long Block 1203 Price: $7,224.99 |

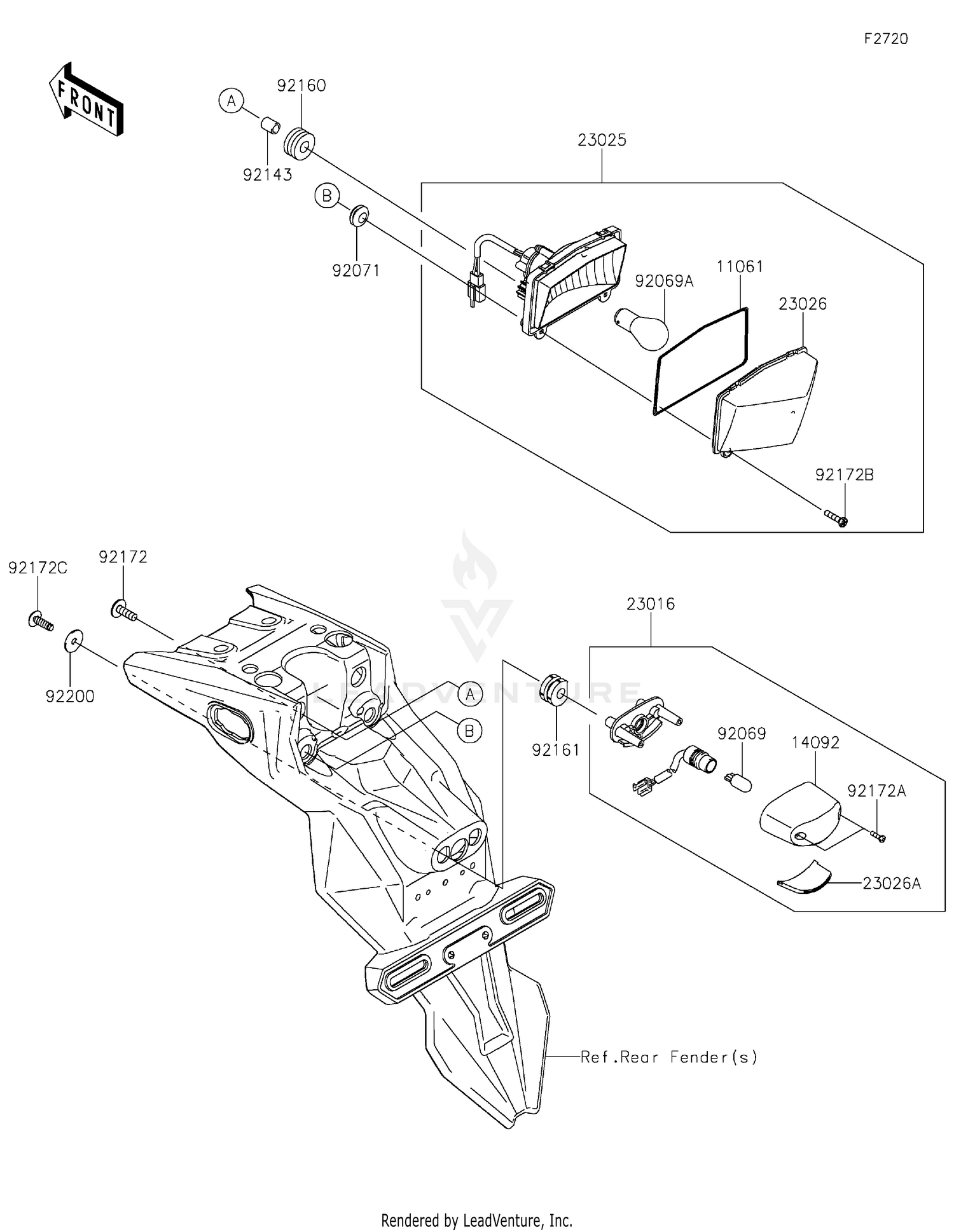

| 11061 |
11061-0393 |
GASKET,TAIL LAMP LENS Price: $9.64 |
| 14092 |
14092-0001 |
COVER,LICENSE LAMP Price: $21.52 |
| 23016 |
23016-0657 |
LAMP-ASSY,LICENCE This part replaces 23016-0608. Price: $71.76 |
| 23025 |
23025-0392 |
LAMP-TAIL This part replaces 23025-0355. Price: $64.38 |
| 23026 |
23026-0036 |
LENS,TAIL LAMP This part replaces 23026-0024. Price: $21.96 |
| 23026A |
23026-0035 |
LENS,LICENCE LAMP This part replaces 23026-0028. Price: $28.78 |
| 92069 |
92069-1016 |
BULB,12V 5W Price: $6.52 |
| 92069A |
92069-1084 |
BULB,12V 21/5W Price: $7.33 |
| 92071 |
92071-024 |
GROMMET Price: $4.65 |
| 92143 |
92143-1825 |
COLLAR,6.8X10X13 Price: $0.74 |
| 92160 |
92160-1162 |
DAMPER Price: $5.00 |
| 92161 |
92161-0776 |
DAMPER Price: $5.54 |
| 92172 |
92172-0192 |
SCREW,6X18 Price: $11.28 |
| 92172A |
92172-0343 |
SCREW,TAPPING,2.9X13 Price: $1.78 |
| 92172B |
92172-0411 |
SCREW,4.2X19 Price: $4.72 |
| 92172C |
92172-0834 |
SCREW,5X16 Price: $2.67 |
