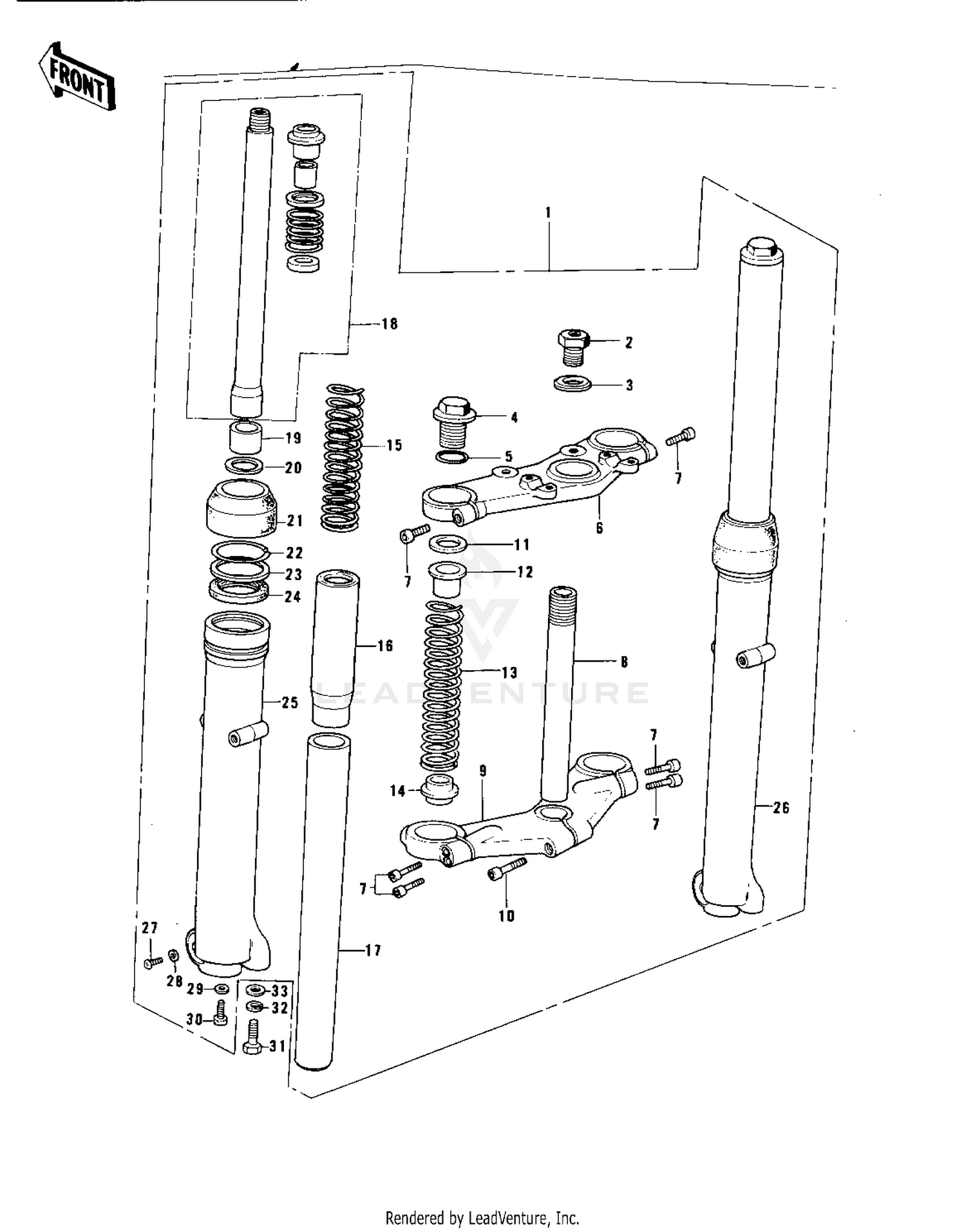

| Ref | Part Number | Description |
|---|
| 1 |
44001-157 |
FORK-FRONT Price: $1,085.21 |
| 2 |
44041-065 |
BOLT,FORK TOP Price: $27.12 |
| 3 |
44043-052 |
WASHER Price: $8.01 |
| 4 |
44041-080 |
BOLT,FORK TOP Price: $25.47 |
| 6 |
44039-067 |
HEAD,STEERING STEM Price: $136.00 |
| 7 |
44041-061 |
BOLT Price: $5.80 |
| 8 |
44052-010 |
SHAFT,STEERING STEM Price: $118.11 |
| 9 |
44038-009 |
STEM,STEERING Price: $244.23 |
| 10 |
44041-043 |
BOLT-STEERING STEM Price: $4.12 |
| 12 |
44028-035 |
SPACER,FORK SPRING Price: $9.60 |
| 13 |
44026-065 |
SPRING,FORK INNER UPP Price: $38.49 |
| 14 |
44028-037 |
GUIDE,FORK SPRING Price: $5.71 |
| 15 |
44026-064 |
SPRING,FORK INNER LOW Price: $29.43 |
| 16 |
44028-036 |
SPACER,FORK SPRING Price: $9.81 |
| 17 |
44013-050 |
TUBE,FORK INNER Price: $177.89 |
| 18 |
44022-025 |
CYLINDER-FORK Price: $102.86 |
| 19 |
44018-009 |
PISTON,FORK Price: $25.98 |
| 20 |
44044-019 |
CIRCLIP,FORK PISTON Price: $7.96 |
| 21 |
44010-031 |
DUST SHIELD,FORK Price: $14.80 |
| 22 |
44044-005 |
CIRCLIP OIL SEAL FIT Price: $9.20 |
| 23 |
44043-023 |
WASHER OIL SEAL FIT Price: $3.76 |
| 24 |
44009-026 |
OIL SEAL Price: $60.50 |
| 25 |
44005-059 |
TUBE,LH,FORK OUTER Price: $164.67 |
| 26 |
44006-057 |
TUBE,RH,FORK OUTER Price: $182.46 |
| 27 |
44041-062 |
SCREW Price: $3.64 |
| 28 |
44045-045 |
GASKET Price: $2.12 |
| 29 |
44045-057 |
GASKET,FORK CYLINDER Price: $4.86 |
| 30 |
44041-040 |
BOLT,SOCKET,FORK CYLINDER Price: $6.57 |
| 31 |
113N1232A |
BOLT,12X32 Price: $4.45 |
| 32 |
461DA1200 |
WASHER-SPRING,12MM This part replaces 461F1200. Price: $1.03 |
