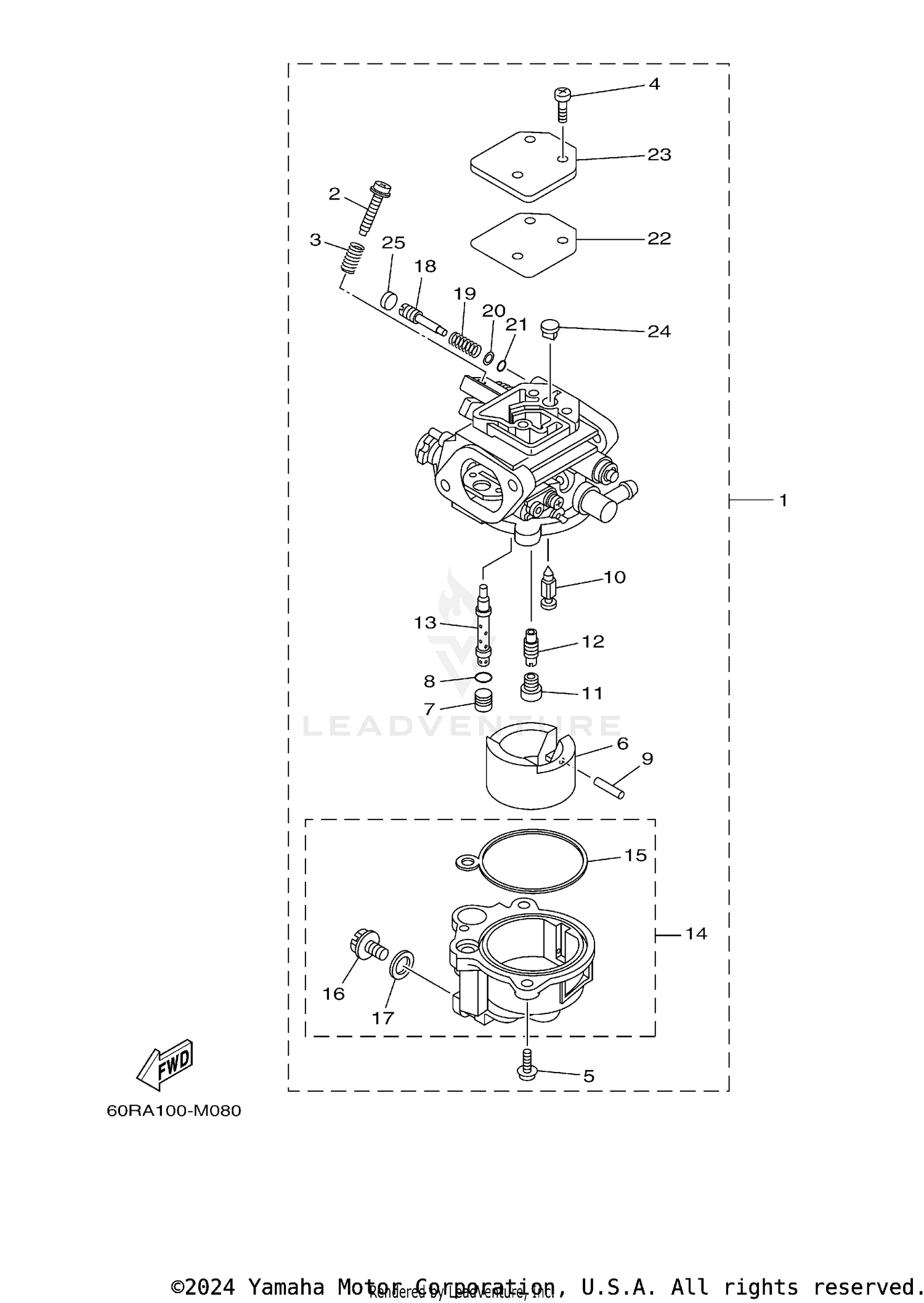

| Ref | Part Number | Description |
|---|
| 1 |
6FW-14301-60-00 |
CARBURETOR ASSY 1 This part replaces 6FW-14301-11-00. Price: $346.20 |
| 2 |
69W-14321-00-00 |
SCREW, THROTTLE Price: $13.45 |
| 3 |
62Y-14212-00-00 |
SPRING, PILOT ADJUSTING Price: $6.75 |
| 4 |
6DR-14321-00-00 |
SCREW, THROTTLE Price: $11.10 |
| 5 |
62Y-14321-00-00 |
SCREW, THROTTLE Price: $14.90 |
| 6 |
6DR-14385-00-00 |
FLOAT Price: $45.25 |
| 7 |
6DR-1432A-00-00 |
PLUG Price: $8.55 |
| 8 |
6DR-14561-00-00 |
O-RING Price: $13.45 |
| 9 |
4FP-14386-00-00 |
PIN, FLOAT Price: $3.15 |
| 10 |
6DR-14336-00-00 |
NEEDLE Price: $15.80 |
| 11 |
6FW-14343-37-00 |
JET, MAIN (#74) Price: $46.40 |
| 12 |
6FW-14342-21-00 |
JET, PILOT (#41) Price: $36.30 |
| 13 |
6FW-14341-00-00 |
NOZZLE, MAIN Price: $76.05 |
| 14 |
60S-14381-00-00 |
BODY, FLOAT CHAMBER Price: $202.55 |
| 15 |
6DR-14984-00-00 |
GASKET, FLOAT CHAMBER Price: $13.45 |
| 16 |
62Y-14383-30-00 |
SCREW, DRAIN Price: $13.85 |
| 17 |
652-14397-00-00 |
O-RING Price: $5.35 |
| 18 |
6DR-14323-00-00 |
SCREW, AIR ADJUSTING Price: $20.55 |
| 19 |
6DR-14334-00-00 |
SPRING, AIR ADJUSTING Price: $6.70 |
| 20 |
6DR-14285-00-00 |
WASHER Price: $19.20 |
| 21 |
6DR-14397-00-00 |
O-RING Price: $8.30 |
| 22 |
6DR-14818-00-00 |
COVER GASKET Price: $13.45 |
| 23 |
6DR-14157-00-00 |
COVER, MIXING Price: $13.50 |
| 24 |
6DR-14862-00-00 |
PLUG Price: $8.55 |
