| Ref | Part Number | Description |
|---|
| 12 |
207564044 |
Hex. Flange Screw M6 X 40, Scotch Grip Price: $4.49 |
| 13 |
205862044 |
Socket Head Screw M6 X 20, Scotch Grip Price: $4.19 |
| 14 |
207089044 |
Hex. Screw M8 X 90 Price: $3.59 |
| 15 |
207503046 |
Hex. Flange Screw M10 X 30, Scotch Grip Price: $2.99 |
| 17 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 18 |
207564044 |
Hex. Flange Screw M6 X 40, Scotch Grip Price: $4.49 |
| 20 |
232006414 |
Hex. Nut M10 X 1.5 Price: $1.39 |
| 21 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 23 |
235381646 |
Torx Screw M8 X 16, Scotch Grip Price: $2.59 |
| 25 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 26 |
210263050 |
Hex. Flange Screw M6 X 30 This part replaces 210263080. Price: $2.09 |
| 28 |
250200100 |
Bonded Washer Price: $2.19 |
| 31 |
250400010 |
Rolled Pin M3 X 10 Price: $1.99 |
| 33 |
250400045 |
Spring Pin M5 X 16 Price: $4.69 |
| 34 |
250400048 |
Dowel Pin Price: $2.19 |
| 35 |
250500013 |
Hex. Countersunk Drain Plug This part replaces 250500012. Price: $8.09 |
| 39 |
293200168 |
Oil Seal This part replaces 293250175. Price: $14.99 |
| 40 |
293300122 |
O-Ring Price: $2.19 |
| 41 |
293300130 |
Tight Seal Price: $7.69 |
| 42 |
293350115 |
Ball Bearing This part replaces 293350055. Price: $12.11 |
| 45 |
293350059 |
Ball Bearing Price: $30.99 |
| 46 |
293350063 |
Needle Bearing Price: $23.99 |
| 47 |
293350064 |
Needle Bearing Price: $23.49 |
| 48 |
293350074 |
Ball Bearing Price: $38.49 |
| 49 |
293370054 |
Circlip Price: $8.29 |
| 50 |
293370055 |
Circlip Price: $8.29 |
| 53 |
293710035 |
Straight Fitting Price: $9.09 |
| 56 |
414115200 |
Tie-Rap 180 mm Price: $0.11 |
| 62 |
414484400 |
O-Ring Price: $7.69 |
| 63 |
414554800 |
Spring Clamp Price: $0.90 |
| 64 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 69 |
504077300 |
Spacer Price: $7.09 |
| 70 |
504078700 |
Ring Price: $21.99 |
| 72 |
504082900 |
Washer Price: $2.69 |
| 73 |
504083100 |
Reverse Shaft Price: $46.99 |
| 76 |
504152282 |
Circlip Price: $3.29 |
| 77 |
415129528 |
Track Guide Price: $3.39 |
| 78 |
504152651 |
Cleat This part replaces 415129529. Price: $9.69 |
| 79 |
293200159 |
Oil Seal This part replaces 504152571. Price: $16.49 |
| 80 |
504152572 |
Circlip Price: $7.09 |
| 81 |
504152576 |
Circlip Price: $10.99 |
| 82 |
504152582 |
Circlip Price: $10.99 |
| 83 |
861805539 |
Kit Sprocket This part replaces 504152581. Price: $164.99 |
| 84 |
504152602 |
Adjustment Screw Price: $12.99 |
| 86 |
504152619 |
Magnetic Cap Price: $24.49 |
| 87 |
504152619 |
Magnetic Cap Price: $24.49 |
| 89 |
504152630 |
Drive Chain, 106 Links Price: $184.99 |
| 91 |
504152854 |
Magnetic Plug 1/8 - 27 NPTF Price: $11.99 |
| 93 |
504152689 |
Washer Price: $7.79 |
| 94 |
504152766 |
Double Ball Joint Price: $18.49 |
| 97 |
504152724 |
Sprocket, 29 Teeth Price: $184.99 |
| 99 |
504153431 |
Chaine Tensionner This part replaces 504152748. Price: $16.49 |
| 100 |
504152766 |
Double Ball Joint Price: $18.49 |
| 105 |
504152784 |
Spring Washer M10 Price: $7.79 |
| 106 |
504153427 |
Lever This part replaces 504152788. Price: $31.99 |
| 108 |
504154359 |
Track_15 X 137 X 1 This part replaces 504153157. Price: $879.99 |
| 109 |
504152841 |
Tensioner Axle Price: $16.99 |
| 110 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 112 |
504152862 |
Washer Price: $10.99 |
| 113 |
504153269 |
Drive Axle Ass'y Price: $433.99 |
| 124 |
504152896 |
Rotation Sensor Price: $38.99 |
| 126 |
504153074 |
Tube Protector This part replaces 504152900. Price: $14.99 |
| 129 |
504152929 |
Cap Ass'y Price: Call Us |
| 132 |
504152930 |
Cap Price: $29.99 |
| 133 |
504153886 |
Retaining Ring This part replaces 504152949. Price: $21.99 |
| 135 |
504152951 |
Ball Joint Price: $46.49 |
| 136 |
504153432 |
Fork Ass'y This part replaces 504152954. Price: $38.99 |
| 138 |
504152956 |
Welded Axle Fork Price: $31.99 |
| 140 |
504152960 |
Slinding Gear, 27 Teeth Price: $109.99 |
| 141 |
504152961 |
Sprocket, 24 Teeth Price: $139.99 |
| 143 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 145 |
504152979 |
Coupling Price: $75.99 |
| 148 |
504153000 |
Countershaft Price: $593.49 |
| 149 |
504152739 |
Slider Chain Price: $67.99 |
| 163 |
504153122 |
Chain Slider Price: $16.99 |
| 165 |
504153412 |
Black Chaincase Cover Ass'y This part replaces 504153143. Price: $349.99 |
| 172 |
504153082 |
Grip Price: $34.99 |
| 175 |
504153179 |
Spring Release Price: $11.99 |
| 177 |
504153407 |
Chaincase This part replaces 504153183. Price: $349.99 |
| 178 |
504153187 |
Bearing Housing Price: $31.99 |
| 186 |
219704410 |
Polyurethane Hose 10000Mm Long Price: $57.99 |
| 190 |
570048600 |
Alignement Rod Price: $16.49 |
| 191 |
581096900 |
Sprock Ass'y, 19 Teeth Price: $114.99 |
| 212 |
207662034 |
Hex. Flange Screw M6 X 20 Price: $2.19 |
| 214 |
233261434 |
Flange Elastic Nut M6 Price: $4.49 |

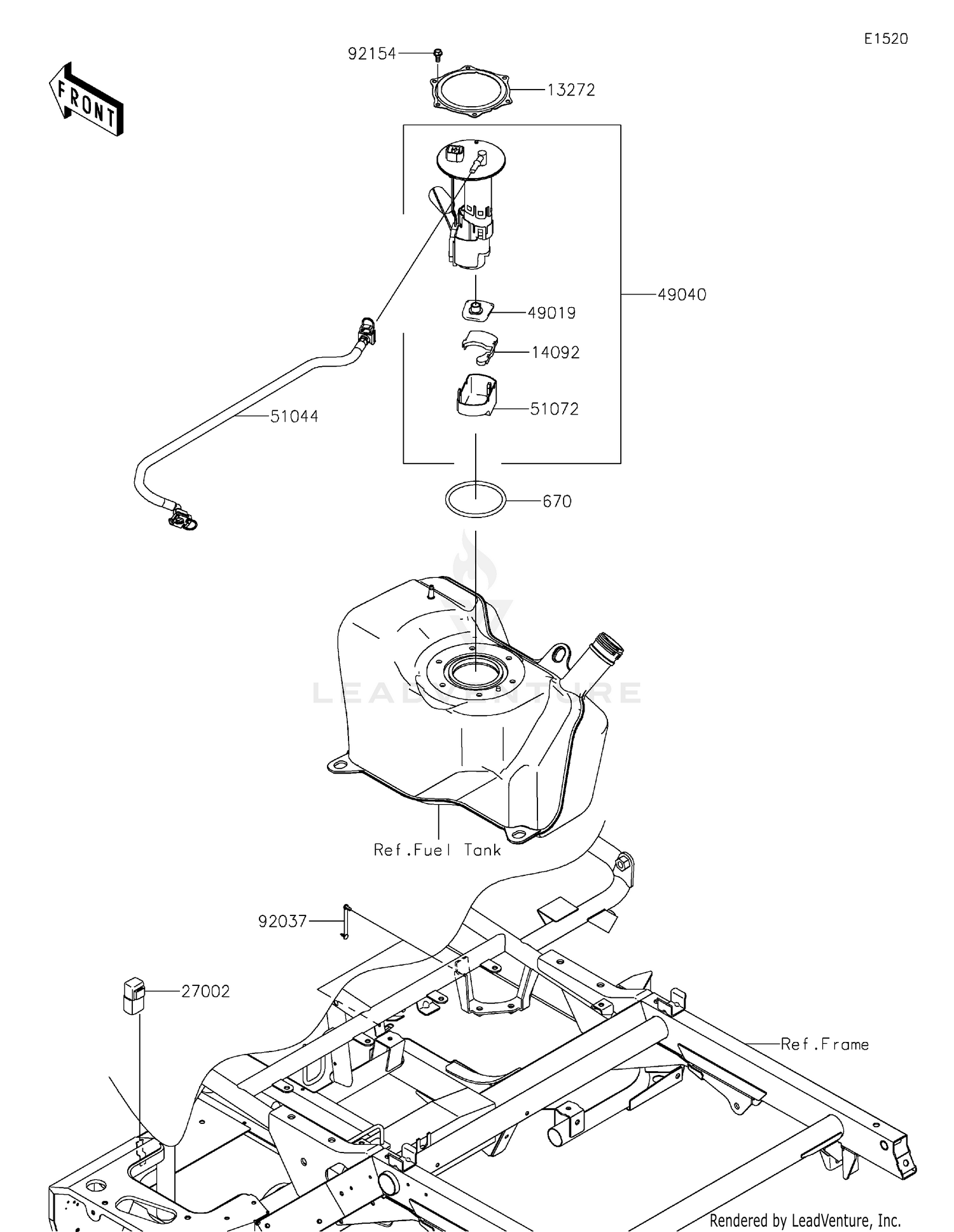

| 13272 |
13272-4226 |
PLATE This part replaces 13272-2501. Price: $12.29 |
| 14092 |
14092-1044 |
COVER Price: $30.60 |
| 27002 |
27002-1088 |
RELAY-ASSY Price: $42.06 |
| 49019 |
49019-0013 |
FILTER-FUEL Price: $16.56 |
| 49040 |
49040-0834 |
PUMP-FUEL This part replaces 49040-0718. Price: $824.04 |
| 51044 |
51044-1243 |
TUBE-ASSY This part replaces 51044-0928. Price: $115.35 |
| 51072 |
51072-0003 |
CHAMBER-FUEL Price: $46.00 |
| 92037 |
92037-1163 |
CLAMP,SPEED,L=58 Price: $6.57 |
| 92154 |
92154-1326 |
BOLT,FUEL PUMP Price: $0.95 |
