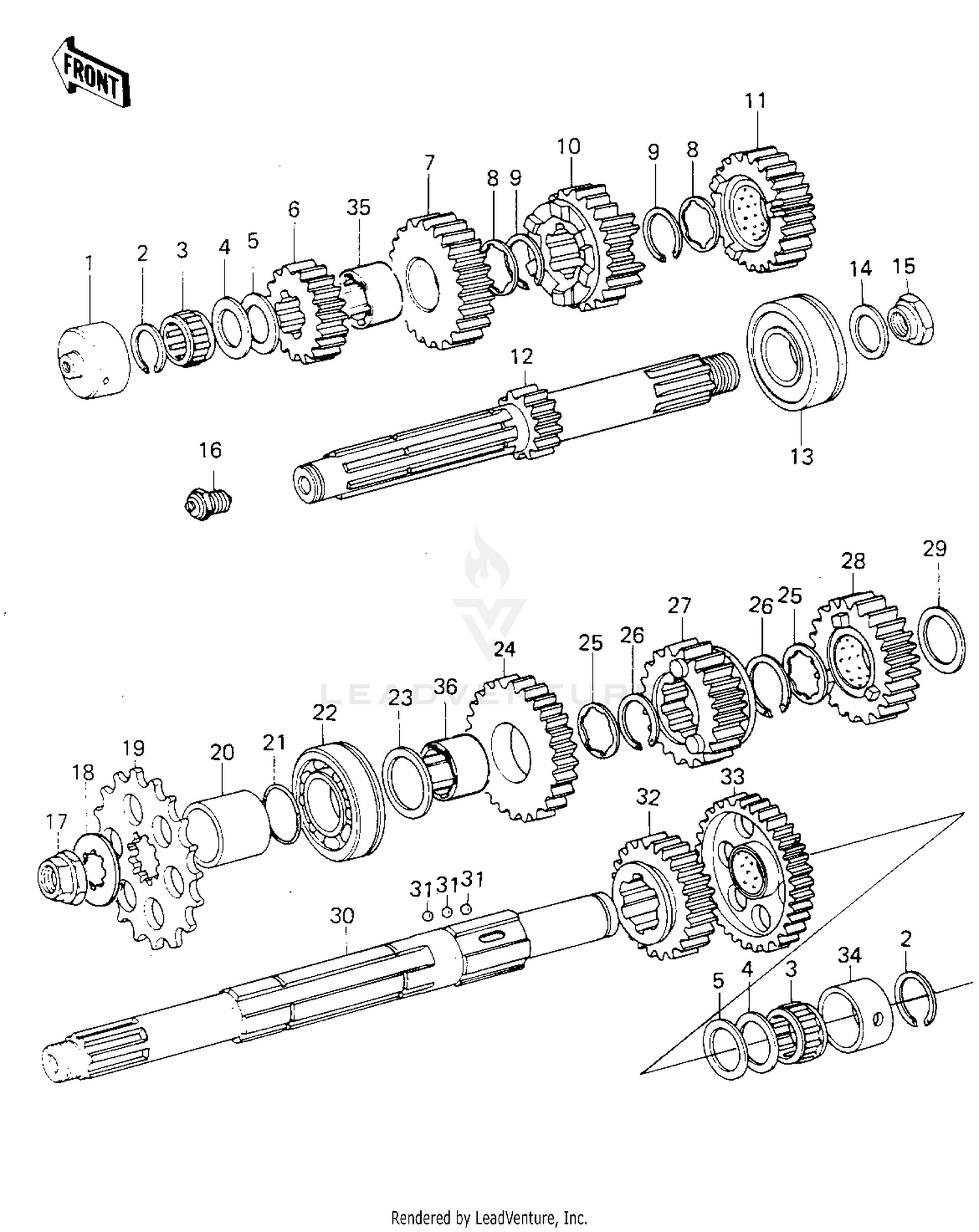

| Ref | Part Number | Description |
|---|
| 1 |
92028-122 |
BUSH,DRIVE SHAFT Price: $99.68 |
| 2 |
92033-025 |
RING-SNAP,20X25.5X1.2 Price: $4.96 |
| 3 |
92046-031 |
BEARING-NEEDLE,FWF-223014 Price: $19.72 |
| 4 |
92022-212 |
WASHER,22.3X35X1.6 Price: $9.91 |
| 4 |
92022-213 |
WASHER,22.3X35X1.2 Price: $10.35 |
| 5 |
92026-1020 |
SPACER (I.D=22 O.D=35 Price: $5.23 |
| 7 |
13136-042 |
TOP GEAR,DRIVE SHAFT Price: $145.29 |
| 8 |
92024-042 |
WASHER,THRUST,26MM This part replaces 92022-1077. Price: $11.07 |
| 9 |
480J2800 |
CIRCLIP-TYPE-C,28MM Price: $4.70 |
| 12 |
13127-042 |
SHAFT,DRIVE 12T Price: $306.48 |
| 13 |
92045-1028 |
BEARING,BALL,5305NSH2 Price: $132.72 |
| 14 |
92125-002 |
WASHER Price: $16.45 |
| 15 |
92015-1555 |
NUT,20MM Price: $13.08 |
| 16 |
13151-5003 |
SWITCH,NEUTRAL Price: $21.18 |
| 17 |
92015-1963 |
NUT,20MM This part replaces 92015-1254. Price: $14.90 |
| 18 |
92200-1065 |
WASHER Price: $6.63 |
| 19 |
13144-062 |
ENGINE SPROCKET 15T Price: $93.54 |
| 20 |
92027-288 |
COLLAR,ENG SPROCKET Price: $39.34 |
| 21 |
92055-035 |
RING-O Price: $5.00 |
| 22 |
92045-021 |
BEARING,BL305 256217 Price: $184.13 |
| 23 |
92022-210 |
WASHER,PLAIN,25MM Price: $8.37 |
| 25 |
92022-1078 |
WASHER,LOCK(O.D=40) Price: $4.36 |
| 26 |
480J3000 |
CIRCLIP-TYPE-C,30MM Price: $6.22 |
| 27 |
13129-1214 |
TOP GEAR,OUTPUT SHAFT Price: $320.30 |
| 29 |
92022-209 |
WASHER,PLAIN,30MM Price: $9.50 |
| 30 |
13128-1013 |
SHAFT,OUT PUT Price: $389.44 |
| 31 |
600A0600 |
BALL-STEEL,3/16 Price: $1.07 |
| 33 |
13129-046 |
LOW GER,OUTPUT SHAFT Price: $150.21 |
| 34 |
92028-123 |
BUSH,OUTPUT SHAFT Price: $54.72 |
| 35 |
92028-1124 |
BUSHING,TOP GEAR Price: $45.48 |
