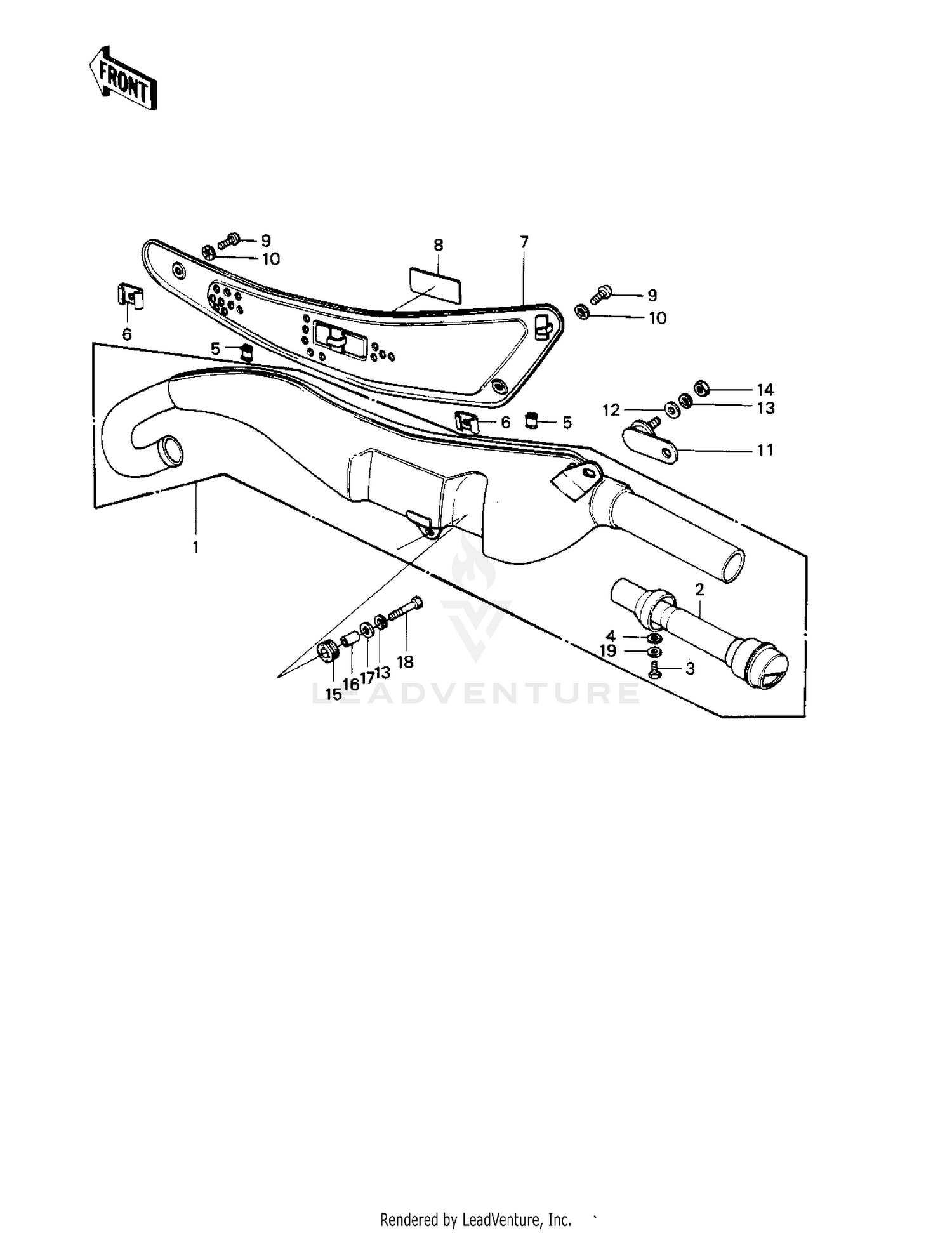

| Ref | Part Number | Description |
|---|
| 1 |
18001-150-21 |
MUFFLER ASSY,BLACK Price: $421.04 |
| 2 |
18033-091 |
BAFFLE TUBE Price: $85.25 |
| 3 |
112BA0612 |
BOLT-UPSET This part replaces 112G0612. Price: $1.49 |
| 5 |
18065-007 |
INSULATOR Price: $5.59 |
| 6 |
18065-010 |
INSULATOR,HEAT Price: $5.03 |
| 7 |
18064-014 |
COVER,MUFFLER Price: $51.19 |
| 9 |
220E0612 |
SCREW PAN HEAD 6X12 Price: $4.60 |
| 10 |
463H0600 |
WASHER LOCK 6MM Price: $0.81 |
| 11 |
18061-054 |
BRACKET,MUFFLER Price: $24.13 |
| 12 |
92022-1561 |
WASHER,8.5X20X1.6 Price: $4.31 |
| 13 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 14 |
317AA0800 |
NUT-HEX-SMALL,8MM This part replaces 311B0800. Price: $0.68 |
| 15 |
18063-005 |
DAMPER RUBBER-MUFFLER Price: $5.21 |
| 16 |
92027-102 |
COLLAR,8.8X12X10.7 Price: $1.08 |
| 17 |
92022-1564 |
WASHER,8X26X2.3 Price: $4.31 |
| 18 |
115BA0830 |
BOLT-SMALL-USET,8X30 This part replaces 115G0830. Price: $6.81 |
