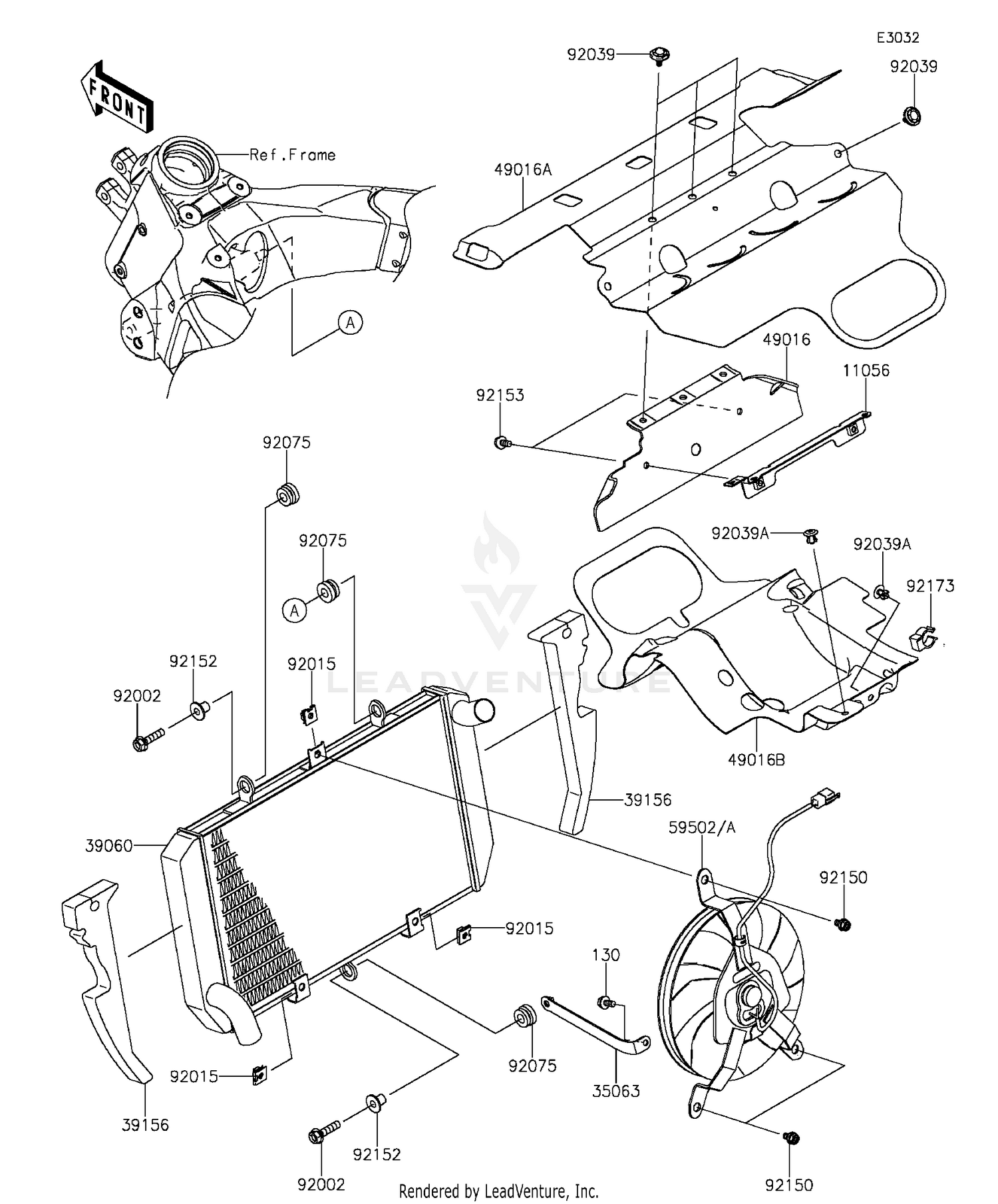

Radiator
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 130 | 130CC0616 | BOLT-FLANGED,6X16 Price: $1.94 |
| 11056 | 11056-0230 | BRACKET Price: $10.60 |
| 35063 | 35063-0761 | STAY Price: $6.77 |
| 39060 | 39060-0081 | RADIATOR Price: $828.85 |
| 39156 | 39156-1775 | PAD Price: $31.80 |
| 49016 | 49016-0082 | COVER-SEAL Price: $12.65 |
| 49016A | 49016-0614 | COVER-SEAL Price: $66.59 |
| 49016B | 49016-0615 | COVER-SEAL Price: $46.04 |
| 59502A | 59502-0612 | FAN-ASSY This part replaces 59502-0577. Price: $792.87 |
| 92002 | 92002-1086 | BOLT,FLANGED,6X25 Price: $5.52 |
| 92015 | 92015-1487 | NUT Price: $4.80 |
| 92039 | 92039-0014 | RIVET,HOLE 8MM Price: $3.29 |
| 92039A | 92039-0730 | RIVET Price: $2.49 |
| 92075 | 92075-1123 | DAMPER,RUBBER Price: $5.00 |
| 92150 | 92150-1186 | BOLT,6X12 Price: $3.37 |
| 92152 | 92152-0667 | COLLAR Price: $7.37 |
| 92153 | 92153-1660 | BOLT,FLANGED,6X12 Price: $1.78 |
