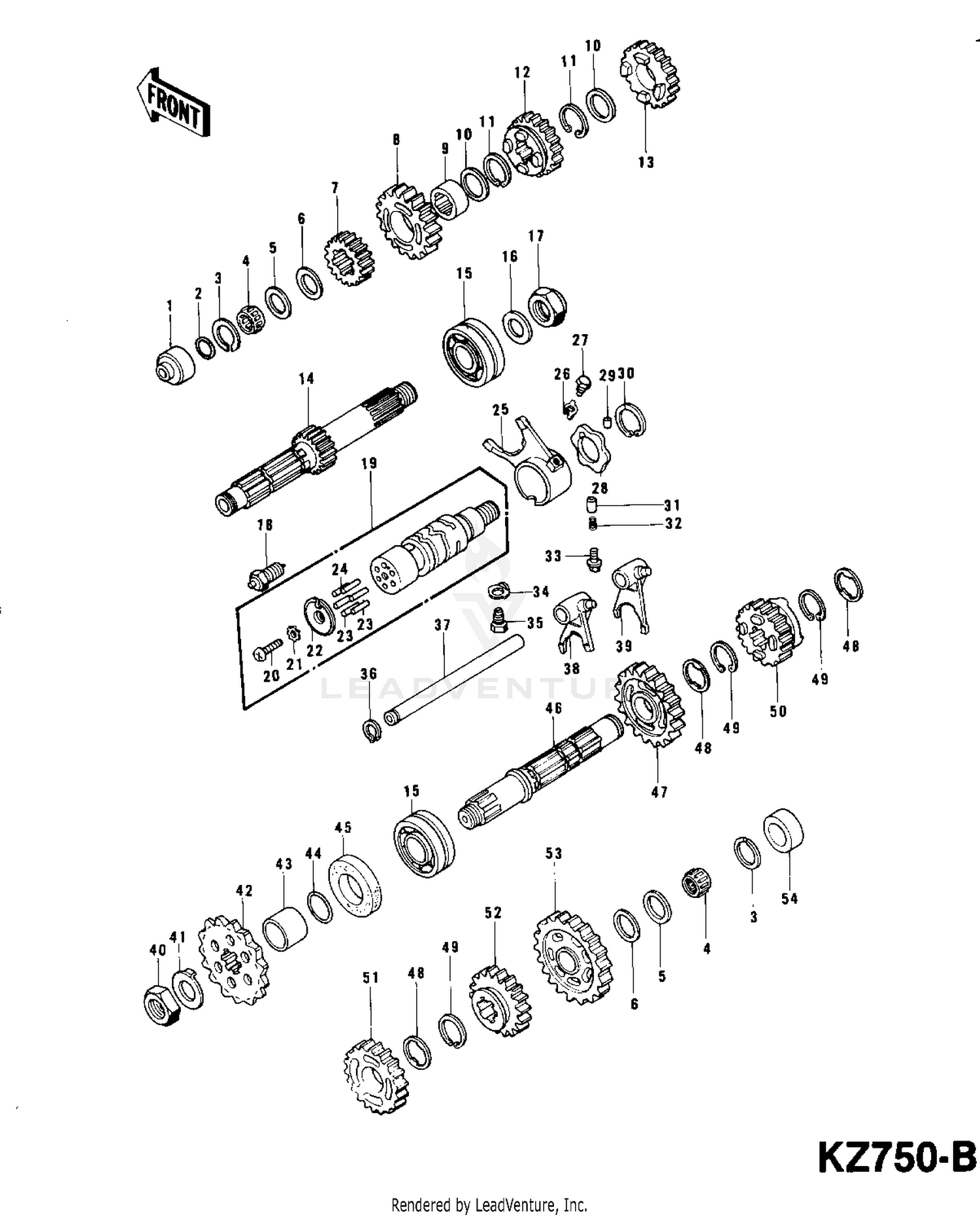

| Ref | Part Number | Description |
|---|
| 1 |
92028-179 |
BUSHING,DRIVE SHAFT Price: $92.24 |
| 2 |
670B1507 |
O RING,7MM Price: $1.28 |
| 3 |
92033-015 |
RING-SNAP,20MM Price: $4.26 |
| 4 |
92046-1030 |
BEARING,VS20/14A Price: $25.43 |
| 5 |
92022-112 |
WASHER,20.5X30X1,STEEL Price: $8.86 |
| 6 |
92022-113 |
WASHER THRUST Price: $11.66 |
| 7 |
13260-1511 |
GEAR,INPUT 2ND,19T This part replaces 13130-041. Price: $71.58 |
| 8 |
13136-060 |
TOP GEAR,DRIVE Price: $73.82 |
| 9 |
92028-1007 |
BUSHING,DRV SHFT TOP Price: $29.67 |
| 10 |
92022-161 |
WASHER,25.3X30X1 Price: $10.65 |
| 11 |
92033-026 |
RING-SNAP,24MM Price: $8.79 |
| 14 |
13127-051 |
SHAFT,DRIVE Price: $140.82 |
| 15 |
92045-035 |
BEARING,BALL Price: $73.57 |
| 16 |
92125-002 |
WASHER Price: $16.45 |
| 17 |
92015-1555 |
NUT,20MM Price: $13.08 |
| 18 |
13151-5002 |
SWITCH,NEUTRAL Price: $21.17 |
| 19 |
13239-021 |
DRUM ASSY,GEAR SHIFT Price: $112.59 |
| 20 |
220AA0614 |
SCREW-PAN-CROS,6X14 This part replaces 220B0614. Price: $1.48 |
| 21 |
464G0600 |
WASHER LOCK 6MM Price: $2.89 |
| 22 |
13142-018 |
HOLDER,SHIFT DRUM PIN Price: $4.88 |
| 23 |
92042-030 |
PIN,DOWEL,4X13.8 Price: $3.92 |
| 24 |
92042-014 |
PIN,DOWEL,4X15.8 Price: $0.43 |
| 25 |
13140-071 |
SHIFT FORK,4TH&TOP Price: $70.87 |
| 26 |
92031-001 |
WASHER LOCK 10MM Price: $11.45 |
| 27 |
92043-016 |
PIN SELECT FORK GUIDE Price: $26.54 |
| 28 |
13145-1058 |
CAM-CHANGE DRUM Price: $22.72 |
| 29 |
610A0406 |
ROLLER,4X6 Price: $4.31 |
| 30 |
480J3000 |
CIRCLIP-TYPE-C,30MM Price: $6.22 |
| 31 |
92043-076 |
PIN Price: $11.71 |
| 32 |
92081-112 |
SPRING Price: $6.16 |
| 33 |
92001-131 |
BOLT,10MM Price: $19.90 |
| 34 |
92024-047 |
WASHER,LOCK Price: $3.25 |
| 35 |
92001-112 |
BOLT,CHG DRUM POSITN Price: $53.14 |
| 36 |
480J1200 |
CIRCLIP-TYPE-C,12MM Price: $0.62 |
| 37 |
49047-5003 |
ROD-SHIFT Price: $24.34 |
| 38 |
13140-1008 |
SHIFT FORK,LOW,2&3RD Price: $109.81 |
| 39 |
13140-069 |
SHIFT FORK,LOW Price: $70.61 |
| 40 |
92016-043 |
NUT,20MM Price: $17.34 |
| 41 |
92024-044 |
WASHER,LOCK,20MM Price: $13.52 |
| 42 |
13144-1009 |
SPROCKET-OUTPUT,17T(#530) Price: $56.15 |
| 43 |
92027-288 |
COLLAR,ENG SPROCKET Price: $39.34 |
| 44 |
92055-035 |
RING-O Price: $5.00 |
| 45 |
92049-1506 |
SEAL-OIL,HTC 32 52 10 This part replaces 92050-024. Price: $8.17 |
| 46 |
13128-044 |
SHAFT,OUTPUT Price: $141.49 |
| 48 |
92024-069 |
WASHER,TOOTHED,30.5X38X1 Price: $6.15 |
| 49 |
480J3000 |
CIRCLIP-TYPE-C,30MM Price: $6.22 |
| 50 |
13137-039 |
TOP GEAR,OUTPUT Price: $85.61 |
| 53 |
13129-056 |
LOW GEAR,OUTPUT Price: $88.75 |
