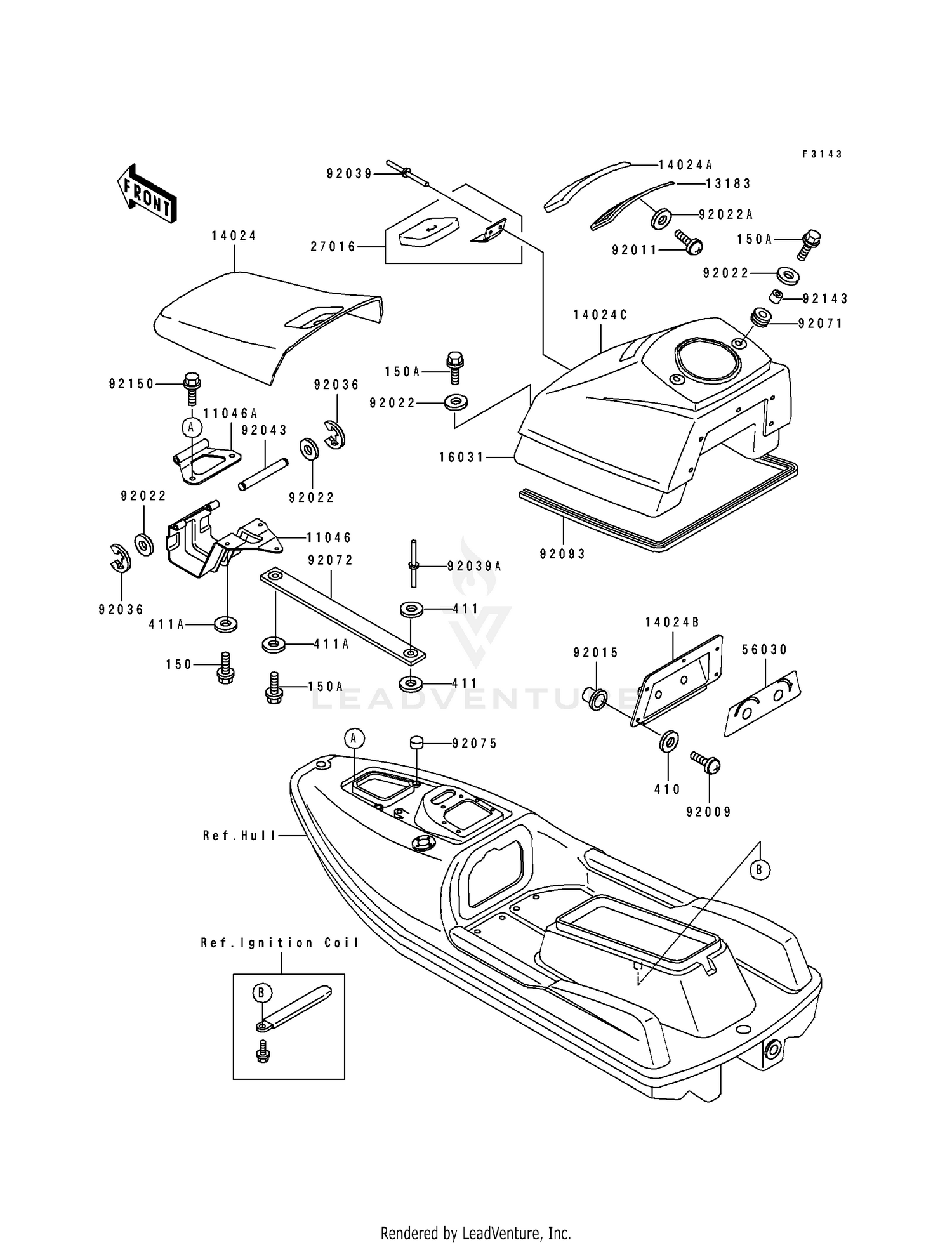

| Ref | Part Number | Description |
|---|
| 150 |
150R0618 |
BOLT-WS,6X18 Price: $4.67 |
| 150A |
150R0622 |
BOLT-WS Price: $4.67 |
| 410 |
410S0500 |
W-PLAIN-S,5MM Price: $1.59 |
| 411 |
411S0500 |
WASHER-PLAIN,5MM Price: $0.94 |
| 11046 |
11046-3838 |
BRACKET,HATCH COVER Price: $153.43 |
| 11046A |
11046-3839 |
BRACKET,DECK Price: $33.54 |
| 13183 |
13183-3743 |
PLATE,INLET-COVER Price: $7.44 |
| 14024 |
14024-3754-23 |
COVER,HATCH,J.S.VIOLET Price: $236.08 |
| 14024A |
14024-3756-23 |
COVER,INLET,J.S.VIOLET Price: $31.73 |
| 14024B |
14024-3757-23 |
COVER,CHOKE,J.S.VIOLET Price: $53.55 |
| 14024C |
14024-3758-23 |
COVER,HANDLE TOWER,J.S.VI Price: $458.57 |
| 16031 |
16031-3775 |
FLOAT Price: $61.99 |
| 27016 |
27016-3725 |
LOCK-ASSY,HATCH Price: $101.04 |
| 56030 |
56030-3799 |
LABEL, FUEL/CHOKE Price: $5.15 |
| 92009 |
92009-3749 |
SCREW,5X20 Price: $1.70 |
| 92011 |
92011-562 |
SCREW 0.16X0.5 Price: $1.65 |
| 92015 |
92015-3784 |
NUT,5MM Price: $2.25 |
| 92022 |
92022-3710 |
WASHER,6.5X20X1.5 Price: $3.65 |
| 92022A |
92022-563 |
WASHER Price: $1.13 |
| 92036 |
92036-518 |
RING-SNAP Price: $1.56 |
| 92039 |
92039-3703 |
RIVET Price: $4.69 |
| 92039A |
92039-0808 |
RIVET This part replaces 92039-3741. Price: $1.63 |
| 92043 |
92043-3726 |
PIN,6X110 Price: $15.55 |
| 92071 |
92071-3763 |
GROMMET Price: $1.38 |
| 92072 |
92072-3742 |
BAND Price: $16.91 |
| 92075 |
92075-3760 |
DAMPER Price: $6.12 |
| 92093 |
92093-3722 |
SEAL Price: $25.37 |
| 92143 |
92143-3720 |
COLLAR,6.2X8X7 Price: $2.55 |
| 92150 |
92150-3758 |
BOLT,6X20 Price: $5.11 |
