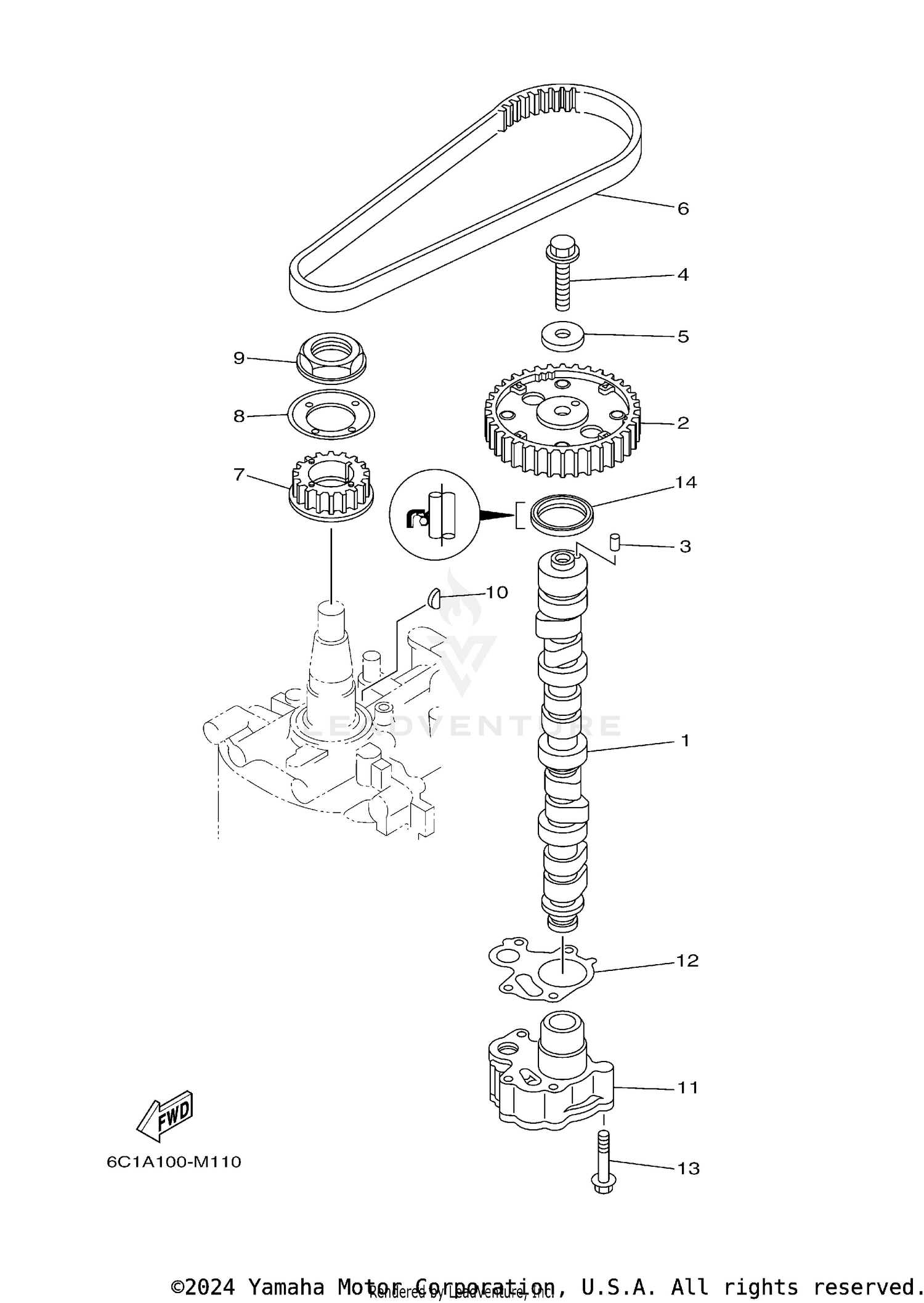

OIL PUMP
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6C5-12171-00-00 | CAMSHAFT 1 Price: $352.70 |
| 2 | 6C5-11537-10-00 | GEAR, DRIVEN Price: $57.80 |
| 3 | 93605-17002-00 | PIN, DOWEL Price: $5.55 |
| 4 | 95817-10035-00 | BOLT, FLANGE Price: $9.49 |
| 5 | 90201-10144-00 | WASHER, PLATE Price: $3.30 |
| 6 | 6C5-46241-00-00 | BELT Price: $84.65 |
| 7 | 6C5-11536-00-00 | GEAR, DRIVE Price: $52.50 |
| 8 | 62Y-11557-00-00 | WASHER 1 Price: $7.70 |
| 9 | 90179-35001-00 | NUT Price: $27.45 |
| 10 | 90280-03017-00 | KEY, WOODRUFF Price: $8.49 |
| 11 | 6C5-13300-01-00 | OIL PUMP ASSY Price: $221.35 |
| 12 | 6C5-13329-00-00 | GASKET, PUMP COVER Price: $6.75 |
| 13 | 90119-06025-00 | BOLT, WITH WASHER Price: $5.35 |
