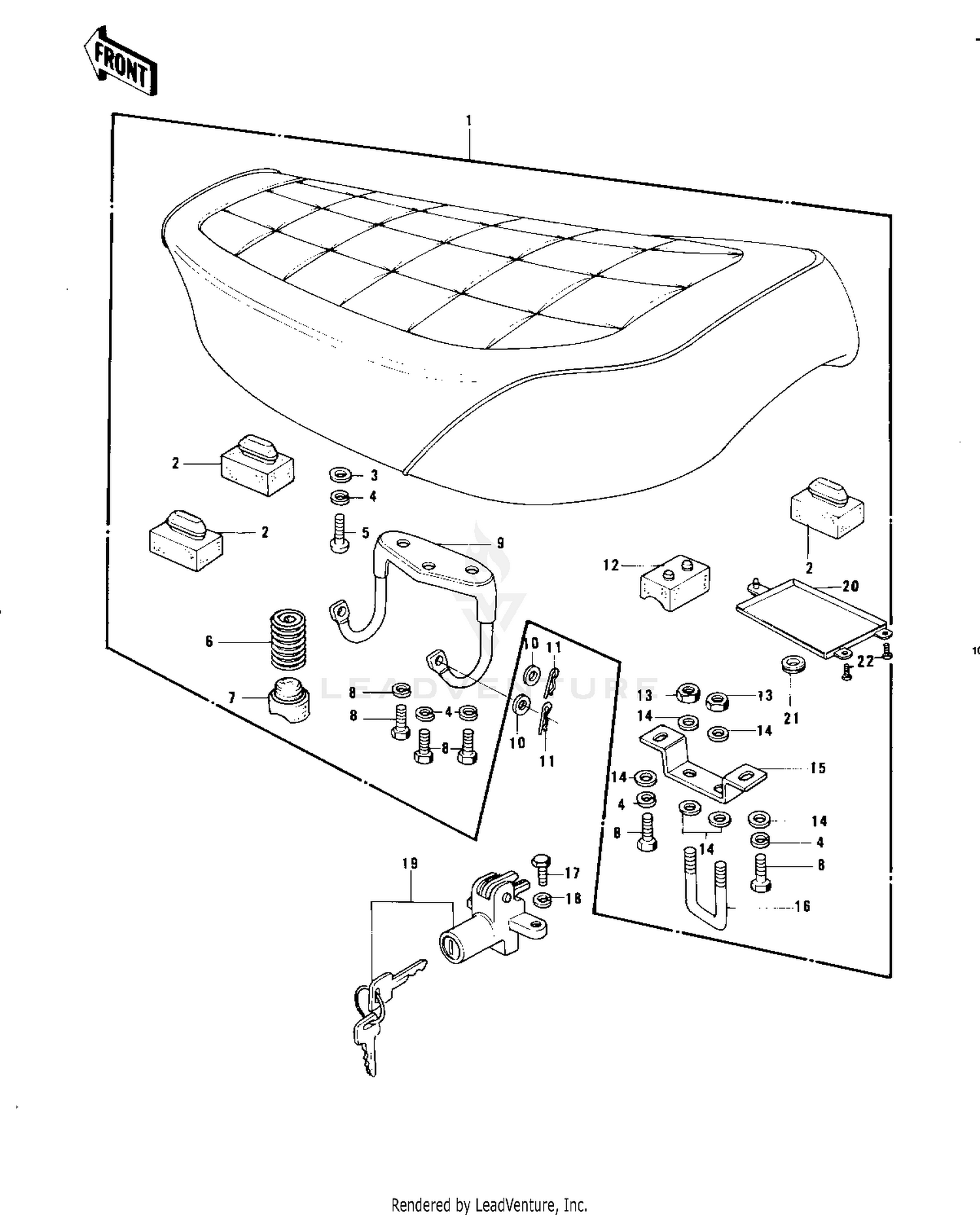

| Ref | Part Number | Description |
|---|
| 1 |
53001-114 |
SEAT-ASSY,DUAL Price: $391.48 |
| 2 |
92075-099 |
DAMPER Price: $5.52 |
| 3 |
411AA0600 |
WASHER-PLAIN,6MM This part replaces 411B0600. Price: $2.92 |
| 4 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 5 |
220AA0614 |
SCREW-PAN-CROS,6X14 This part replaces 220B0614. Price: $1.48 |
| 6 |
92081-147 |
SPRING Price: $5.27 |
| 7 |
92075-276 |
DAMPER RUBBER Price: $6.27 |
| 8 |
112AA0614 |
BOLT-UPSET This part replaces 112B0614. Price: $0.49 |
| 9 |
53009-029 |
HINGE Price: $24.57 |
| 10 |
411AA0800 |
WASHER-PLAIN,8MM This part replaces 411B0800. Price: $0.96 |
| 11 |
554DA0800 |
PIN-SNAP This part replaces 554A0800. Price: $1.36 |
| 12 |
92075-139 |
DAMPER RUBBER,SEAT Price: $11.46 |
| 13 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 14 |
92200-0283 |
WASHER,6.5X20X1.6 This part replaces 92022-125. Price: $1.40 |
| 15 |
53058-002 |
BRACKET,SEAT CATCH Price: $6.66 |
| 16 |
53056-002 |
CATCH, SEAT Price: $16.66 |
| 17 |
112BA0612 |
BOLT-UPSET This part replaces 112G0612. Price: $1.49 |
| 18 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 20 |
32099-011 |
CASE Price: $16.66 |
| 21 |
92071-056 |
GROMMET Price: $4.26 |
