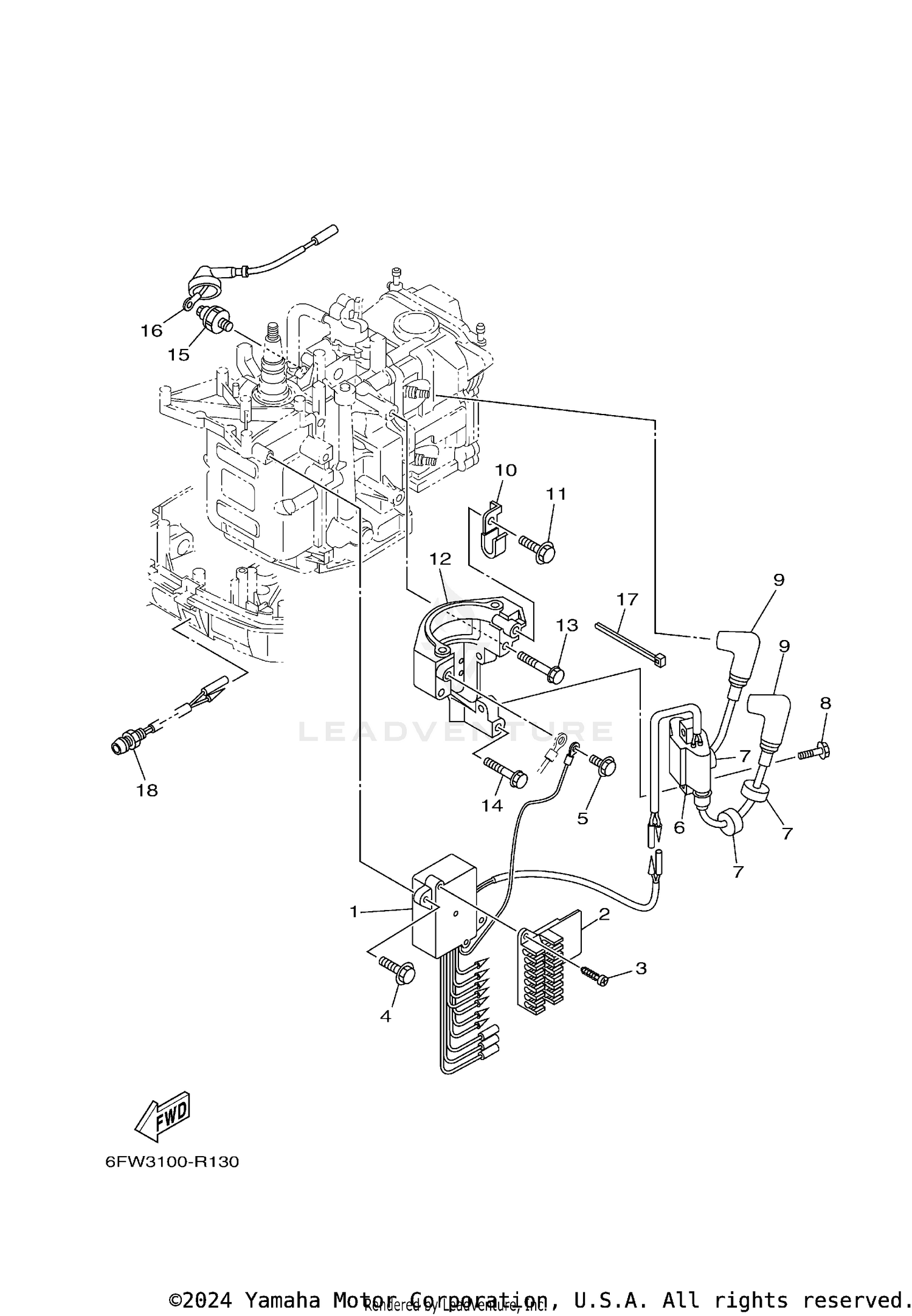

| Ref | Part Number | Description |
|---|
| 1 |
68T-85540-00-00 |
C.D.I. UNIT ASSY Price: $444.85 |
| 2 |
68T-82522-00-00 |
CLAMP, COUPLER Price: $6.85 |
| 3 |
97780-40112-00 |
SCREW, TAPPING This part replaces 97780-40512-00. Price: $4.20 |
| 4 |
97E95-06520-00 |
BOLT, HEXAGON W/W Price: $3.05 |
| 5 |
97E95-06512-00 |
BOLT, HEXAGON W/W Price: $2.05 |
| 6 |
680-85570-02-00 |
IGNITION COIL ASSY Price: $158.10 |
| 7 |
90480-25003-00 |
GROMMET Price: $5.50 |
| 8 |
90119-06MA3-00 |
BOLT, WITH WASHER Price: $3.20 |
| 9 |
6E3-82370-21-00 |
PLUG CAP ASSY Price: $22.40 |
| 10 |
90465-08M99-00 |
CLAMP Price: $11.40 |
| 11 |
97E95-06512-00 |
BOLT, HEXAGON W/W Price: $2.05 |
| 12 |
68T-81822-01-00 |
BRACKET, STARTING MOTOR Price: $56.85 |
| 13 |
90119-08046-00 |
BOLT, WITH WASHER Price: $6.25 |
| 14 |
90119-08020-00 |
BOLT, WITH WASHER Price: $4.75 |
| 15 |
67F-82504-00-00 |
OIL PRESSURE SWITCH ASSY Price: $76.25 |
| 16 |
68T-82127-11-00 |
WIRE, LEAD 2 Price: $19.30 |
| 17 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
