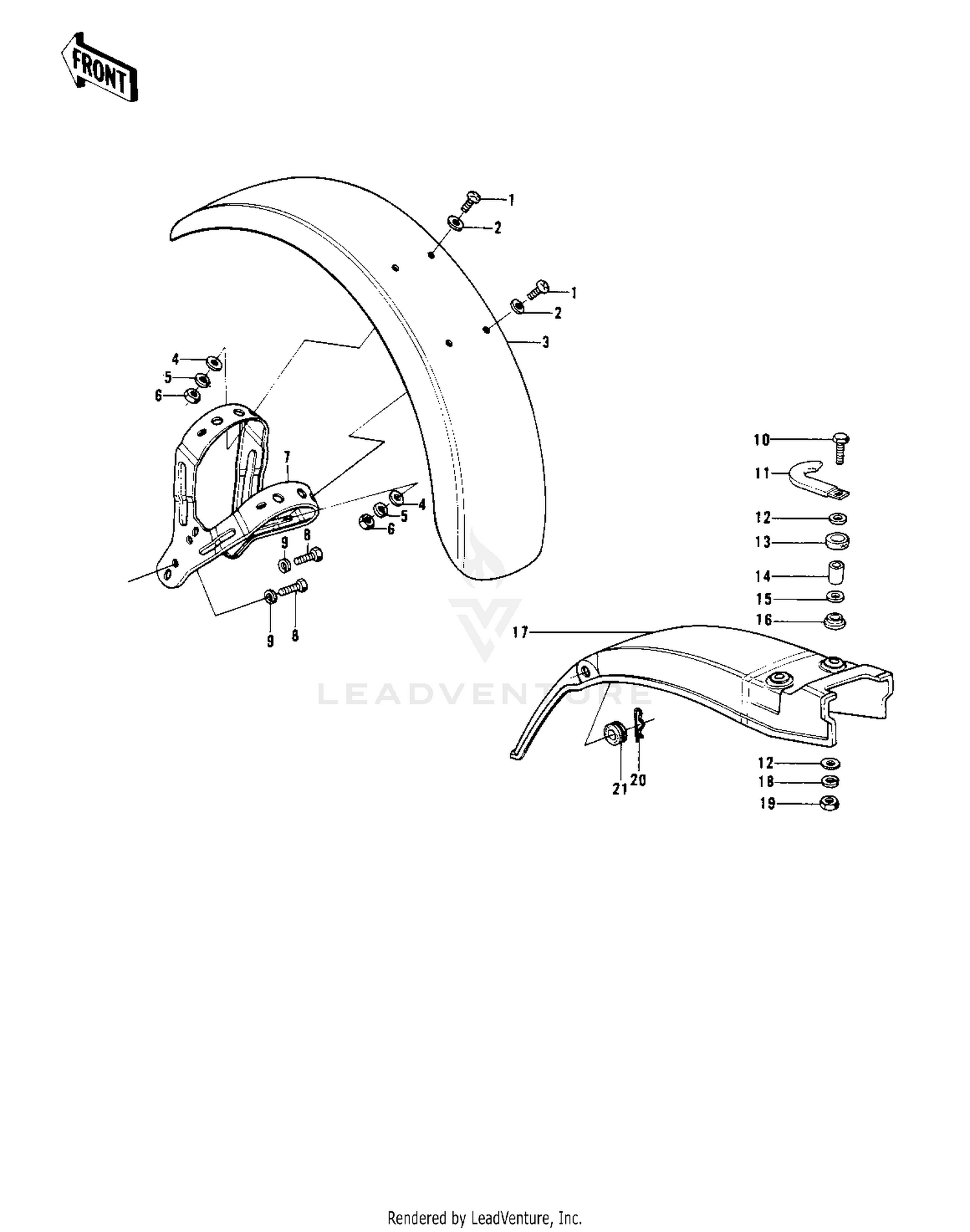

| Ref | Part Number | Description |
|---|
| 1 |
220E0614 |
SCREW PAN HEAD 6X14 Price: $3.42 |
| 2 |
92022-193 |
WASHER,6.5X20X1.6,WHITE Price: $5.33 |
| 3 |
35004-084 |
FENDER-FR Price: $177.43 |
| 4 |
411AA0600 |
WASHER-PLAIN,6MM This part replaces 411B0600. Price: $2.92 |
| 5 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 6 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 7 |
35009-036 |
BRACE,FRONT FENDER Price: $29.88 |
| 8 |
115G0812 |
BOLT-SMALL-UPSET,8X12 This part replaces 114G0812. Price: $4.16 |
| 9 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 10 |
110R0635 |
BOLT 6X35 Price: $5.96 |
| 11 |
92037-113 |
CLAMP,HARNESS Price: $6.15 |
| 12 |
92022-228 |
WASHER,7X24X1.6 Price: $3.92 |
| 13 |
92075-121 |
DAMPER RUBBER,RR FEND Price: $4.56 |
| 14 |
92027-162 |
COLLAR,6.8X10X12 Price: $6.57 |
| 15 |
92022-1282 |
WASHER,7X28X1.6 This part replaces 92022-227. Price: $4.69 |
| 16 |
92075-133 |
DAMPER RUBBER,RR FEND Price: $11.55 |
| 17 |
35022-099 |
FENDER-RR Price: $22.24 |
| 18 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 19 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 20 |
92041-003 |
COTTER PIN Price: $5.72 |
