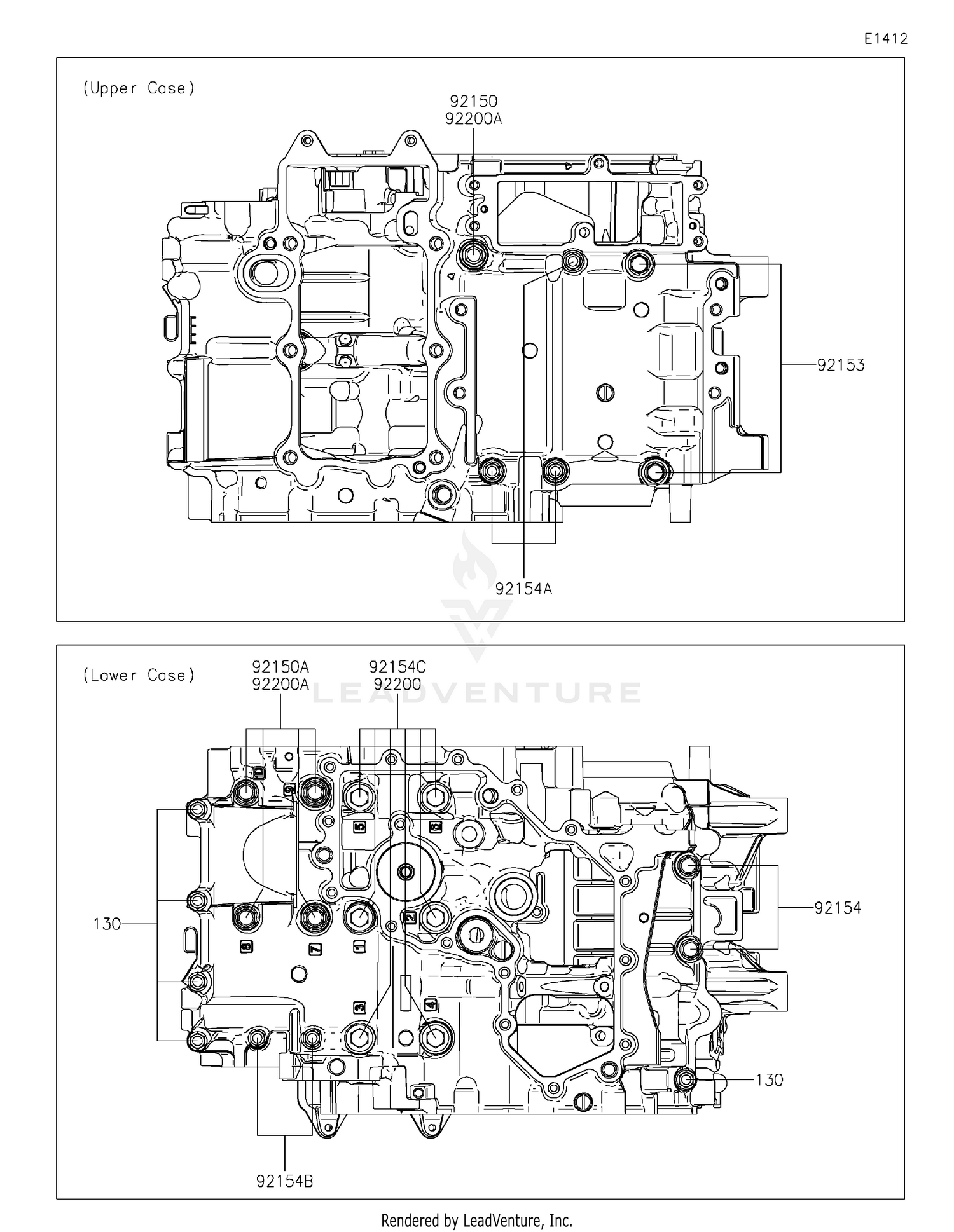

Crankcase Bolt Pattern
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 92150 | 92150-1162 | BOLT,8X80 Price: $6.61 |
| 92150A | 92150-1483 | BOLT,8X70 Price: $7.45 |
| 92153 | 92153-1110 | BOLT,8X63 Price: $4.18 |
| 92154 | 92154-0992 | BOLT,FLANGED,8X40 Price: $3.02 |
| 92154A | 92154-2680 | BOLT,FLANGED,6X52 Price: $1.42 |
| 92154B | 92154-2681 | BOLT,FLANGED,6X76 Price: $1.69 |
| 92154C | 92154-2986 | BOLT,FLANGED,9X105 Price: $8.98 |
| 92200 | 92200-0115 | WASHER,9.2X19X2.3 Price: $3.73 |
| 92200A | 92200-0273 | WASHER,HEAD Price: $2.61 |
