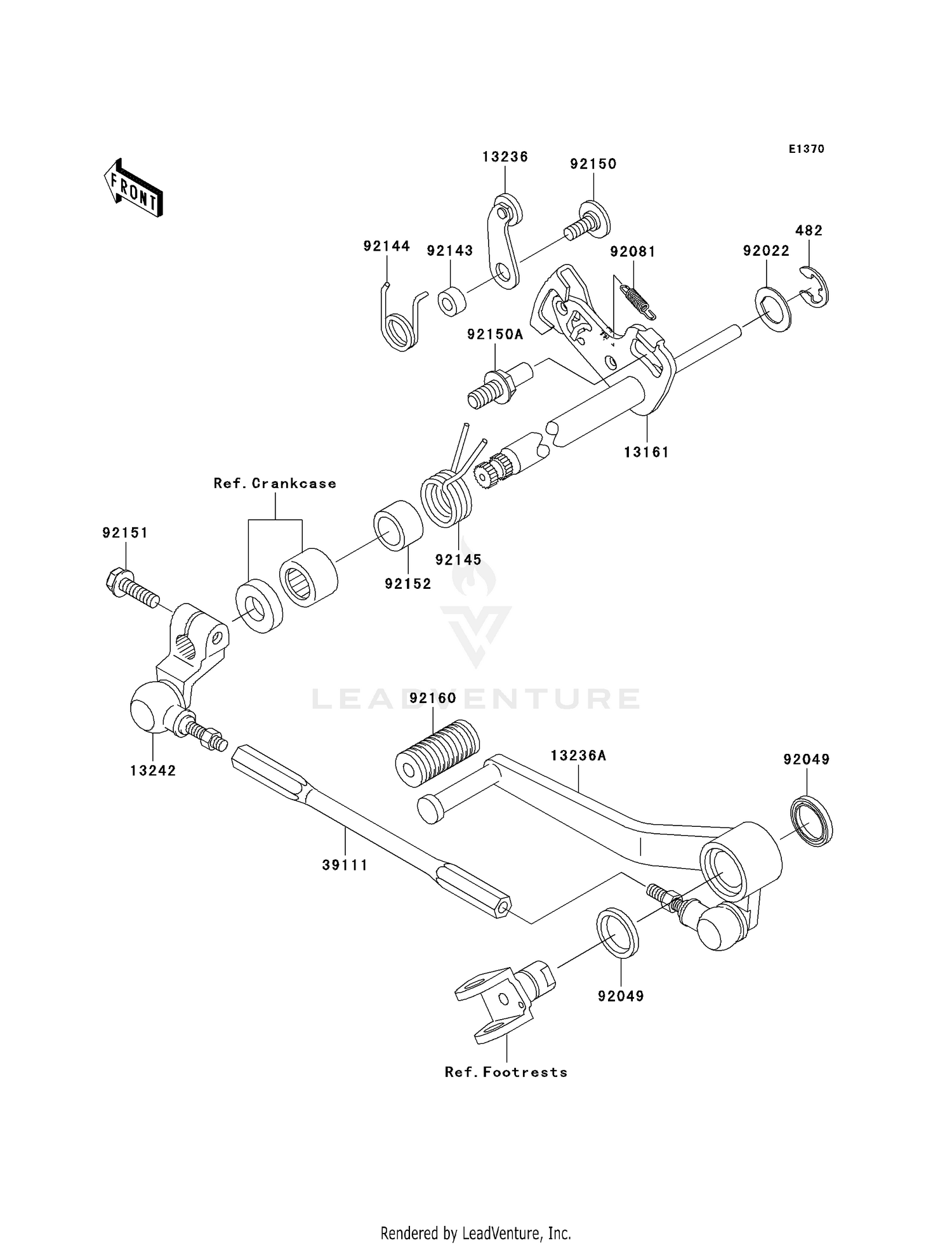

GEAR CHANGE MECHANISM
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 482 | 482J0200 | CIRCLIP-TYPE-E,12MM Price: $3.92 |
| 13161 | 13161-1282 | LEVER-COMP-CHANGE SHA Price: $101.11 |
| 13236 | 13236-1243 | LEVER-COMP Price: $19.66 |
| 13236A | 13236-1317 | LEVER-COMP,CHANGE PED Price: $94.08 |
| 13242 | 13242-1348 | LEVER-ASSY-CHANGE,BOS Price: $53.31 |
| 39111 | 39111-1157 | ROD-TIE Price: $47.88 |
| 92022 | 92022-1628 | WASHER,CHANGE SHAFT Price: $6.57 |
| 92049 | 92049-1492 | SEAL-OIL Price: $9.27 |
| 92081 | 92081-1708 | SPRING,PAWL RETURN Price: $6.51 |
| 92143 | 92143-1595 | COLLAR Price: $9.51 |
| 92144 | 92144-1856 | SPRING Price: $9.82 |
| 92145 | 92145-1122 | SPRING Price: $9.68 |
| 92150 | 92150-1737 | BOLT Price: $10.76 |
| 92150A | 92154-1885 | BOLT,RETURN SPRING This part replaces 92150-1869. Price: $8.58 |
| 92151 | 92151-1226 | BOLT,FLANGED,6X20 Price: $2.46 |
| 92152 | 92152-1383 | COLLAR,14.2X19.9X12.0 Price: $4.18 |
