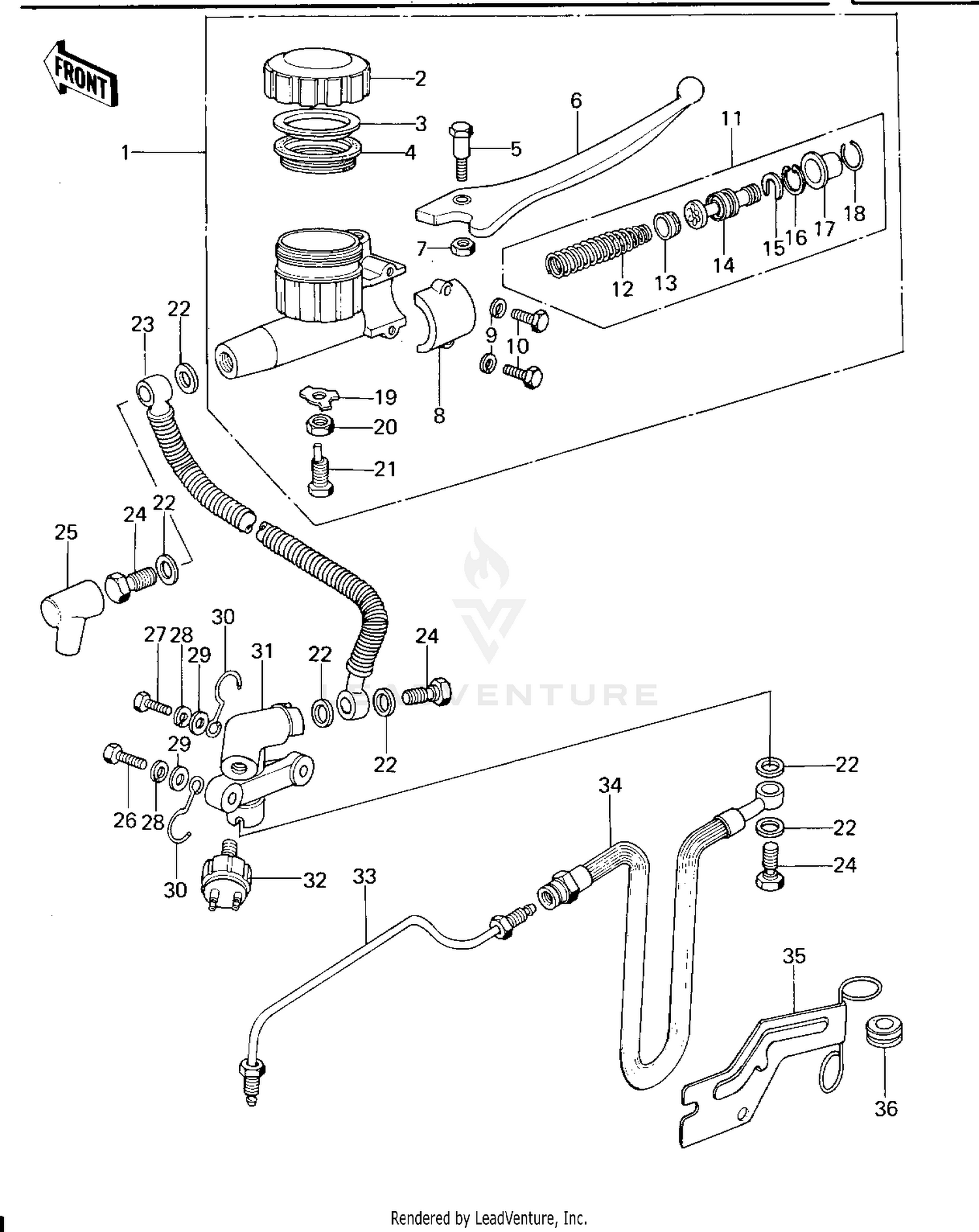

| Ref | Part Number | Description |
|---|
| 1 |
43015-032 |
CYLINDER ASSY,MASTER Price: $179.78 |
| 2 |
43026-1054 |
CAP-BRAKE This part replaces 43026-003. Price: $34.87 |
| 3 |
43027-001 |
PLATE-MASTER CYLINDER Price: $10.39 |
| 4 |
43028-001 |
DIAPHRAGM Price: $43.88 |
| 5 |
43033-004 |
BOLT Price: $27.05 |
| 6 |
43029-003 |
LEVER,FRONT BRAKE Price: $105.99 |
| 7 |
312AA0600 |
NUT-HEX This part replaces 312B0600. Price: $0.73 |
| 8 |
43034-001 |
HOLDER-MASTER CYL Price: $39.96 |
| 9 |
411AA0600 |
WASHER-PLAIN,6MM This part replaces 411B0600. Price: $2.92 |
| 10 |
112N0625 |
BOLT-UPSET This part replaces 110N0625. Price: $5.86 |
| 11 |
43073-001 |
REPAIR SET-MASTER CYL Price: $102.17 |
| 12 |
43018-001 |
SPRING ASSY-RETURN Price: $24.74 |
| 13 |
43019-001 |
CUP-PRIMARY Price: $16.61 |
| 14 |
43072-001 |
PISTON ASSY Price: $25.05 |
| 15 |
43022-001 |
STOPPER-PISTON Price: $4.05 |
| 16 |
481J1800 |
CIRCLIP-TYPE-C,18MM Price: $4.31 |
| 17 |
43024-001 |
BOOTS Price: $7.20 |
| 18 |
43025-001 |
STOPPER-BOOTS Price: $5.27 |
| 19 |
43031-001 |
WASHER-LOCK,8MM Price: $8.41 |
| 20 |
317AA0800 |
NUT-HEX-SMALL,8MM This part replaces 311B0800. Price: $0.68 |
| 21 |
43030-003 |
BOLT,LEVER ADJUSTING Price: $11.53 |
| 22 |
49091-0001 |
WASHER-SEAL,10.1X14.5X1.5 This part replaces 43067-001. Price: $2.15 |
| 24 |
92153-0627 |
BOLT,OIL,L=23 This part replaces 92002-1888. Price: $5.48 |
| 25 |
49006-1041 |
BOOT,DUST Price: $11.49 |
| 26 |
110N0632 |
BOLT-HEX HEAD,6X32 Price: $6.83 |
| 27 |
110N0622 |
BOLT, HEX HEAD 6X22 Price: $4.56 |
| 28 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 29 |
411AA0600 |
WASHER-PLAIN,6MM This part replaces 411B0600. Price: $2.92 |
| 30 |
92037-092 |
CLAMP,CABLE Price: $9.31 |
| 31 |
43061-002 |
JOINT,THREE WAY Price: $54.86 |
| 32 |
43065-001 |
SWITCH-FRONT BRAKE Price: $60.25 |
| 33 |
43060-021 |
PIPE,BRIDGE Price: $38.76 |
| 34 |
43095-1386 |
HOSE-BRAKE,CLUTCH,L=3 This part replaces 43059-1262. Price: $91.28 |
| 35 |
43063-001 |
BRACKET-BRAKE HOSE Price: $67.11 |
