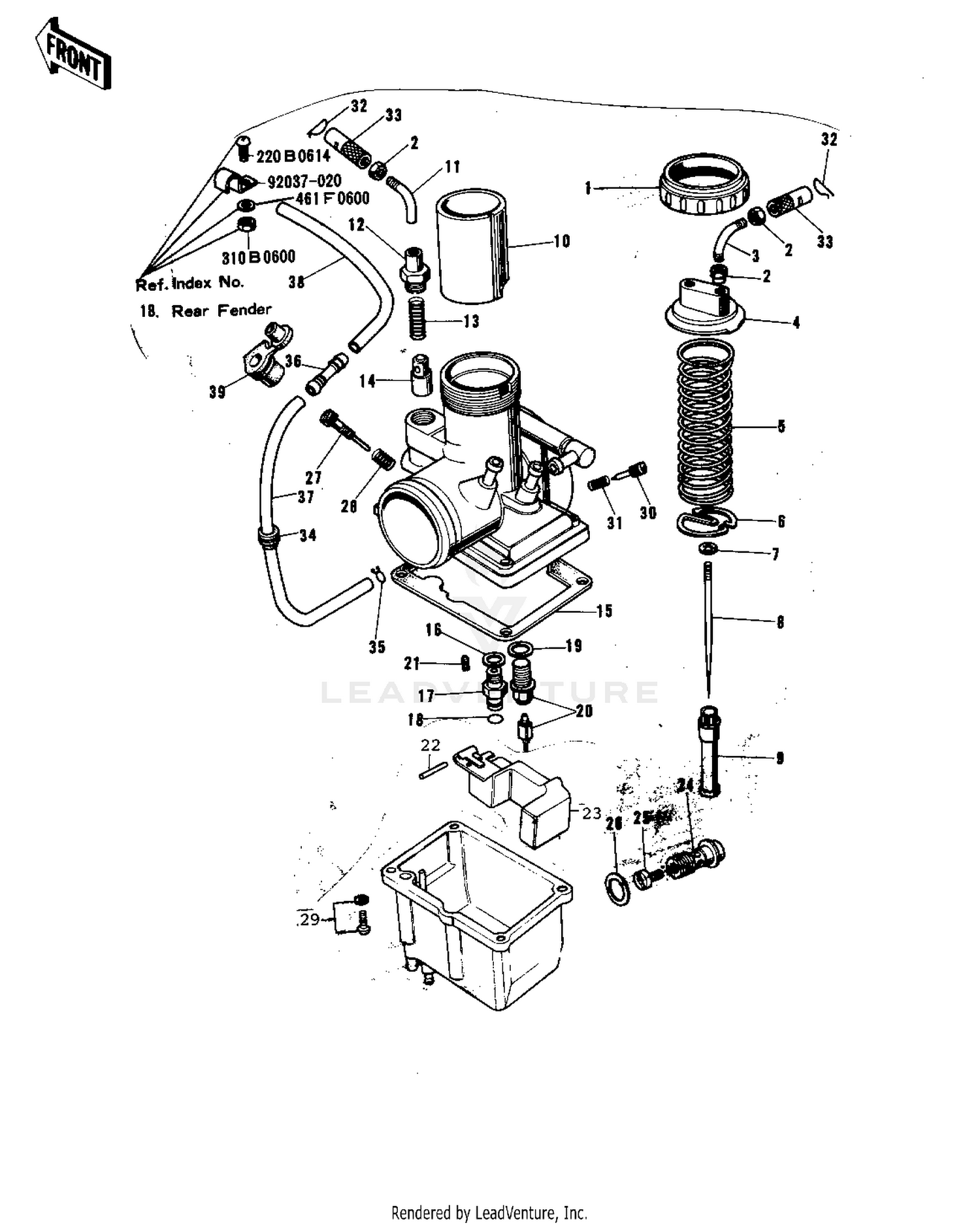

CARBURETOR ('74-'75 F9-B/F9-C 350)

Parts (35)

Ref	Part Number	Description
1	16004-006	CAP MIXING CHAMBER Price: $16.28
2	16003-004	NUT CABLE ADJUST LOCK Price: $7.34
3	16077-001	CABLE GUIDE Price: $9.02
4	16005-016	TOP MIXING CHAMBER Price: $12.92
5	16006-007	SPRING THROTTLE VALVE Price: $6.06
6	16007-007	SPRING SEAT THRTL VLV Price: $9.35
7	16008-010	CIRCLIP Price: $9.21
8	16009-048	JET NEEDLE,5EJ13 Price: $30.54
9	16017-057	NEEDLE JET,O-G Price: $37.32
10	16025-052	VALVE,THROTTLE CA2.0 Price: $46.69
11	16077-005	CABLE GUIDE Price: $5.54
12	16012-013	CAP-STARTER PLUNGER Price: $4.54
13	16013-003	SPRING-PLUNGER Price: $6.16
14	16016-002	PLUNGER-ENRICHNER Price: $31.85
15	16019-017	GASKET-FLOAT CHAMBER Price: $5.79
16	16034-001	WASHER MAIN JET Price: $4.31
17	16065-008	HOLDER-NEEDLE JET Price: $22.74
18	92055-044	RING-O Price: $10.38
19	16029-004	GASKET,FLOAT VALVE SEAT Price: $3.89
20	16030-005	FLOAT VALVE ASSY Price: $58.86
21	92064-046	PILOT JET,#17.5 Price: $7.83
22	16032-006	FLOAT PIN Price: $7.29
23	16031-022	FLOAT Price: $22.39
24	92001-097	BOLT-BANJO Price: $22.55
26	16034-005	GASKET-BANJO BOLT Price: $7.20
27	16021-014	SCREW-THROTTLE STOP Price: $6.52
28	16022-005	SPRING THR STOP SCREW Price: $8.68
29	223AA0414	SCREW-PAN-WS-CROS,4X14 This part replaces 223B0414. Price: $1.52
30	16014-011	SCREW-PILOT AIR ADJST Price: $5.62
31	16022-007	SPRING,PILOT AIR SCREW Price: $8.13
32	92036-018	RING-SNAP Price: $3.89
33	16002-007	CABLE ADJUSTER Price: $11.09
34	92071-038	GROMMET PIPE Price: $4.74
35	92037-010	CLAMP,TUBE Price: $3.92
36	92005-003	NIPPLE Price: $4.19
