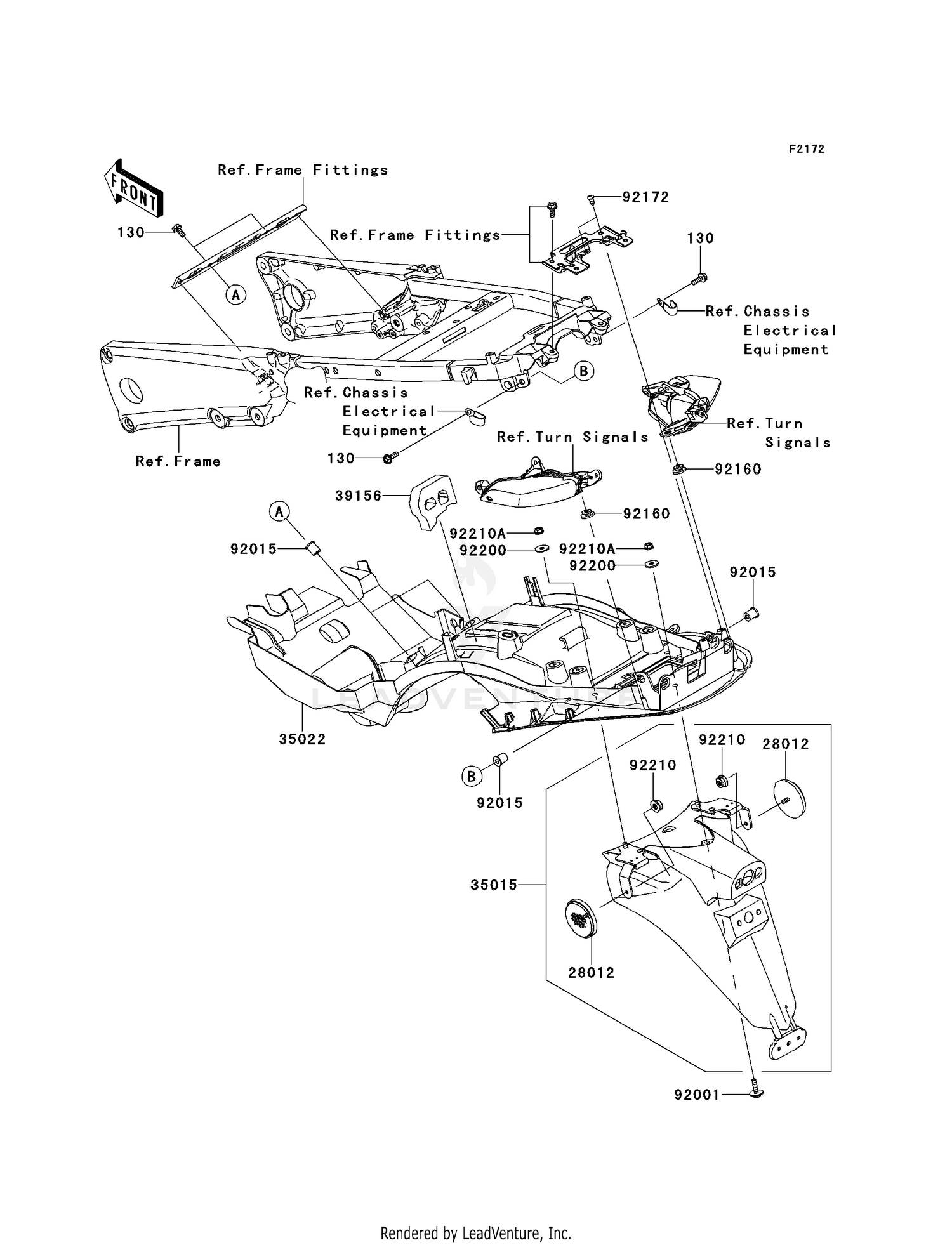

REAR FENDER(S)
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 130 | 130BA0618 | BOLT-FLANGED,6X18 Price: $1.54 |
| 28012 | 28012-0002 | REFLECTOR-REFLEX Price: $24.14 |
| 35015 | 35015-0052 | FLAP-COMP,RR Price: $164.27 |
| 35022 | 35022-0096 | FENDER-COMP-REAR Price: $180.86 |
| 39156 | 39156-0847 | PAD Price: $17.39 |
| 92001 | 92001-1774 | BOLT,UPSET-WP,6X22 Price: $3.65 |
| 92015 | 92015-1700 | NUT Price: $8.58 |
| 92160 | 92160-1613 | DAMPER Price: $3.74 |
| 92172 | 92172-0239 | SCREW,TAPPING,5X12 Price: $1.00 |
| 92200 | 92200-0283 | WASHER,6.5X20X1.6 Price: $1.40 |
| 92210 | 92210-0007 | NUT,FLANGED,5MM Price: $2.70 |
