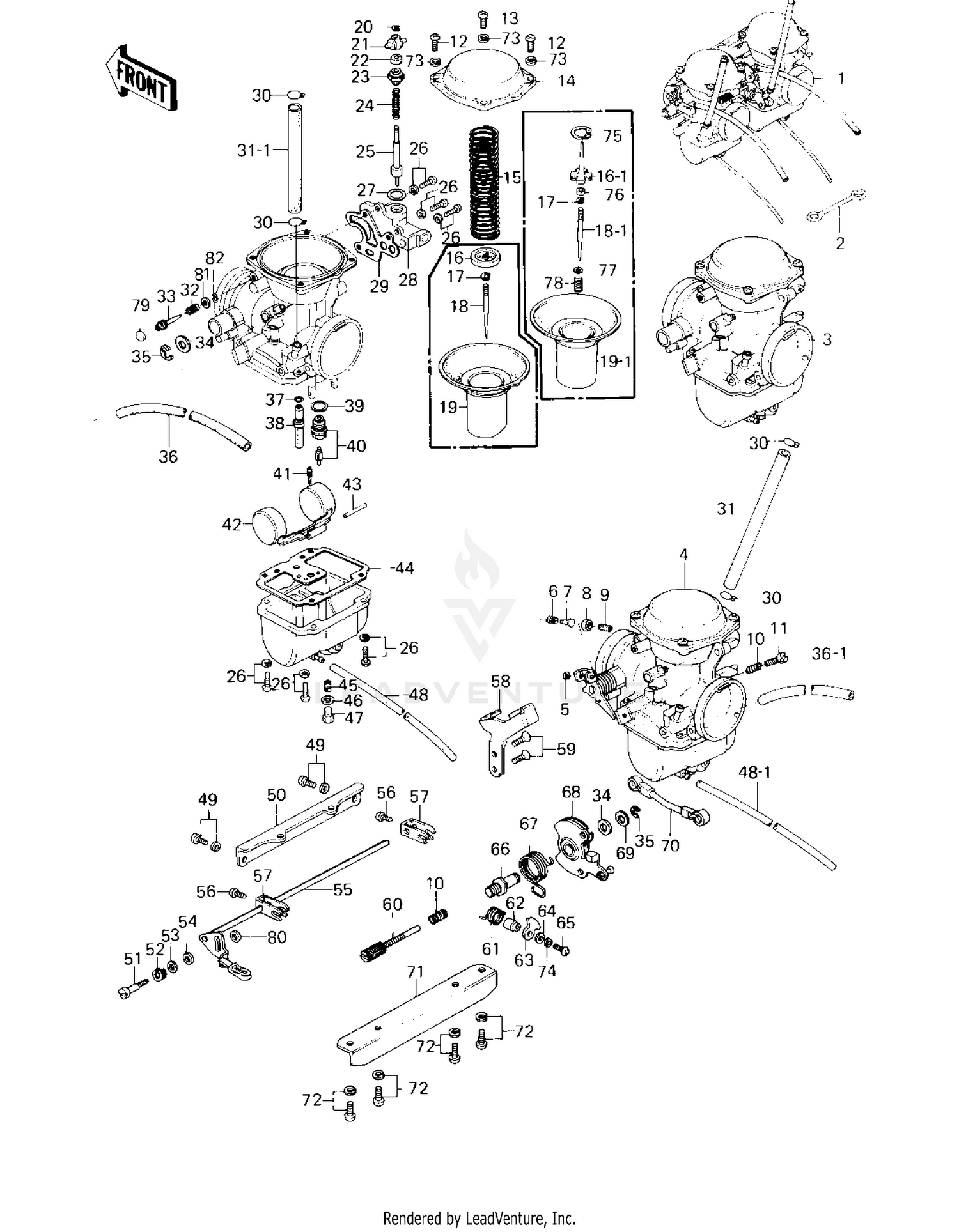

| Ref | Part Number | Description |
|---|
| 1 |
16001-1187 |
CARBURETOR ASSY Price: $627.17 |
| 1 |
16001-1295 |
CARBURETOR ASSY (Canada) Price: Call Us |
| 2 |
92037-134 |
CLAMP,OVER FLOW PIPE Price: $11.50 |
| 3 |
16001-1257 |
CARBURETOR,L.H. Price: $349.28 |
| 3 |
16001-1296 |
CARBURETOR,L.H. (Canada) Price: Call Us |
| 4 |
16001-1256 |
CARBURETOR,R.H. Price: $349.28 |
| 4 |
16001-1297 |
CARBURETOR,R.H. (Canada) Price: Call Us |
| 5 |
16008-017 |
CIRCLIP Price: $1.99 |
| 6 |
16040-019 |
SPRING,LEVER Price: $3.89 |
| 7 |
16042-008 |
PIN Price: $4.12 |
| 8 |
312AA0500 |
NUT-HEX,5MM This part replaces 312B0500. Price: $0.47 |
| 9 |
16033-025 |
SCREW,LEVER Price: $3.21 |
| 10 |
16022-010 |
SPRING,THROTTLE ADJST Price: $9.44 |
| 11 |
16021-020 |
ADJUSTER,THROTTLE LEV Price: $25.96 |
| 12 |
220AA0514 |
SCREW-PAN-CROS,5X14 This part replaces 220B0514. Price: $4.43 |
| 13 |
214AA0516 |
SCREW-PAN+- This part replaces 214B0516A. Price: $0.17 |
| 14 |
14030-1012 |
COVER,DIAPHRAGM Price: $14.77 |
| 14 |
16069-003 |
COVER,DIAPHRAGM Price: $14.49 |
| 15 |
16006-030 |
SPRING,THROTTLE Price: $14.69 |
| 15 |
92081-1080 |
SPRING,DIAPHRAGM Price: $13.09 |
| 16 |
16055-010 |
PLATE,NEEDLE Price: $12.37 |
| 17 |
16008-014 |
CIRCLIP Price: $9.64 |
| 18 |
16009-070 |
JET NEEDLE Price: $23.67 |
| 19 |
16059-004 |
DIAPHRAGM Price: $186.63 |
| 20 |
16076-003 |
CIRCLIP Price: $8.92 |
| 21 |
16073-1006 |
LEVER,CHOKE ADJUST Price: $7.03 |
| 22 |
16036-017 |
RUBBER CAP,STARTER PL Price: $10.67 |
| 23 |
16012-1008 |
GUIDE,PLUNGER Price: $7.06 |
| 24 |
16013-008 |
SPRING,STARTER PLUNGER Price: $6.46 |
| 25 |
16016-019 |
PLUNGER,STARTER Price: $31.36 |
| 26 |
223AA0412 |
SCREW-PAN-WS-CROS This part replaces 16033-027. Price: $4.60 |
| 27 |
16039-041 |
WASHER,PLAIN Price: $7.06 |
| 28 |
16131-1005 |
BODY,STARTER Price: $31.53 |
| 29 |
16029-011 |
GASKET- Price: $18.41 |
| 30 |
92037-072 |
CLAMP-PIPE Price: $7.22 |
| 31 |
92059-130 |
PIPE,FUEL Price: $24.48 |
| 32 |
92081-1216 |
SPRING,PILOT SCREW Price: $3.05 |
| 33 |
16014-1023 |
SCREW,PILOT ADJUST Price: $8.03 |
| 34 |
16039-032 |
WASHER Price: $4.04 |
| 35 |
16008-015 |
CIRCLIP Price: $3.67 |
| 36 |
92059-1096 |
HOSE,AIR VENT,4.5X250 Price: $13.09 |
| 37 |
16038-021 |
O RING,NEEDLE JET Price: $9.39 |
| 38 |
16017-1048 |
NEEDLE JET,#AY-3 Price: $34.25 |
| 38 |
16017-1049 |
NEEDLE JET,#Z-4 Price: $20.08 |
| 39 |
11009-1076 |
GASKET,FLOAT VALVE Price: $4.94 |
| 40 |
16030-026 |
FLOAT VALVE ASSY Price: $87.43 |
| 41 |
92064-045 |
PILOT JET,#45 Price: $25.96 |
| 41 |
92064-1012 |
PILOT JET,#40 Price: $16.58 |
| 42 |
16031-030 |
FLOAT Price: $64.25 |
| 43 |
16032-008 |
PIN,FLOAT This part replaces 16032-003. Price: $6.57 |
| 44 |
16019-029 |
GASKET,FLOAT CHAMBER Price: $30.60 |
| 45 |
92063-1061 |
MAIN JET,#A125 Price: $5.34 |
| 45 |
92063-141 |
JET-MAIN #115 Price: $7.30 |
| 45 |
92063-142 |
MAIN JET,#120 Price: $5.00 |
| 45 |
92063-143 |
MAIN JET,#125 Price: $8.77 |
| 45 |
92063-147 |
MAIN JET,#130 Price: $11.56 |
| 45 |
92063-148 |
MAIN JET,#135 Price: $11.68 |
| 46 |
16039-036 |
WASHER,PLAIN Price: $4.82 |
| 47 |
92009-1090 |
SCREW,MAIN JET PLUG Price: $11.03 |
| 48 |
92059-127 |
HOSE,FUEL OVERFLOW Price: $11.07 |
| 49 |
16033-028 |
SCREW,5X10 Price: $1.49 |
| 50 |
16041-014 |
SHAFT Price: $6.70 |
| 51 |
16046-005 |
SCREW Price: $6.83 |
| 52 |
16040-009 |
SPRING,F Price: $11.55 |
| 55 |
16041-1013 |
SHAFT,CHOKE LEVER Price: $23.41 |
| 56 |
16046-007 |
SCREW,PAN HEAD,5X7 Price: $11.39 |
| 57 |
13168-1062 |
LEVER,CHOKE ADJUST Price: $4.12 |
| 58 |
16070-004 |
BRACKET Price: $17.20 |
| 59 |
16033-024 |
SCREW,5X8 Price: $7.47 |
| 60 |
16021-027 |
THROTTLE ADJUSTER Price: $13.48 |
| 61 |
16040-018 |
SPRING Price: $4.38 |
| 62 |
16073-012 |
COLLAR Price: $4.12 |
| 63 |
16063-010 |
LEVER Price: $6.36 |
| 64 |
16039-038 |
WASHER,PLAIN Price: $5.88 |
| 65 |
220E0420A |
SCREW-PAN HEAD,4X20 Price: $2.76 |
| 66 |
16041-015 |
SHAFT Price: $9.67 |
| 67 |
16040-017 |
SPRING,THROTTLE CABLE Price: $4.38 |
| 68 |
16074-004 |
PULLY,THROTTLE CABLE Price: $46.10 |
| 69 |
16039-037 |
WASHER,PLAIN Price: $2.50 |
| 70 |
16046-008 |
JOINT Price: $26.72 |
| 71 |
16055-011 |
PLATE Price: $11.06 |
| 72 |
16033-026 |
SCREW Price: $3.21 |
| 73 |
461DA0500 |
WASHER-SPRING,5MM This part replaces 461F0500. Price: $0.71 |
| 74 |
461F0400 |
WASHER SPRING 4MM Price: $0.47 |
| 75 |
92033-1009 |
CIRCLIP Price: $9.39 |
| 76 |
92027-1115 |
RING,JET NEEDLE Price: $5.94 |
| 77 |
92022-1123 |
WASHER,JET NEEDLE Price: $8.98 |
| 78 |
92081-1126 |
SPRING,JET NEEDLE Price: $8.36 |
| 79 |
92066-1051 |
PLUG,PILOT AIR SCREW,6.9X2 Price: $5.05 |
| 80 |
92022-1152 |
WASHER,PLAIN Price: $4.04 |
| 81 |
92022-1187 |
WASHER,ADJUST SCREW Price: $6.22 |
