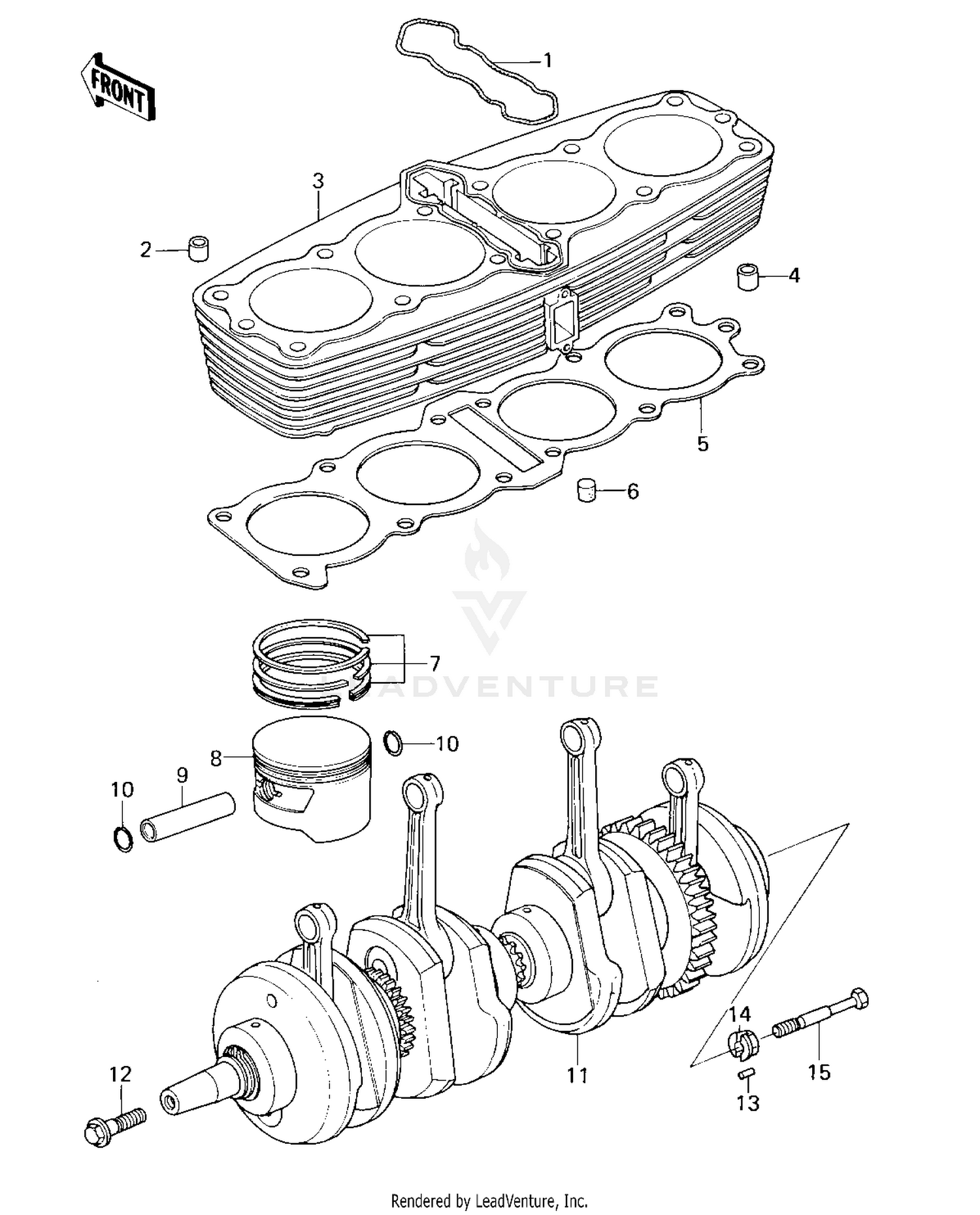

| Ref | Part Number | Description |
|---|
| 1 |
92055-062 |
GASKET,CYLINDER RUBER Price: $153.96 |
| 2 |
92043-1037 |
PIN,DOWEL,10X14 Price: $0.74 |
| 4 |
92043-1266 |
PIN,11X14X12.3 Price: $1.08 |
| 5 |
11060-1579 |
GASKET,CYLINDER BASE This part replaces 11009-030. Price: $67.50 |
| 6 |
92074-030 |
RUBBER PLUG,CYLINDER Price: $8.88 |
| 7 |
13008-5012 |
RING SET,STD Price: $151.39 |
| 7 |
13024-5008 |
RING SET,0.040"O/S Price: $116.76 |
| 7 |
13025-5007 |
RING SET,0.020"O/S Price: $144.46 |
| 8 |
13001-1005 |
PISTON,S.T.D Price: $139.66 |
| 8 |
13027-1005 |
PISTON,0.040 O/S Price: $134.01 |
| 8 |
13029-1003 |
PISTON,0.020 O/S Price: $190.48 |
| 9 |
13002-022 |
PIN-PISTON Price: $58.36 |
| 10 |
92036-021 |
RING-SNAP,PISTON PIN Price: $0.49 |
| 11 |
13031-1040 |
CRANKSHAFT ASSY Price: $873.16 |
| 12 |
92001-1146 |
BOLT,FLANGED,12X40 Price: $9.91 |
| 13 |
555A0408 |
PIN-SPRING,4X8 Price: $3.92 |
| 14 |
92022-244 |
WASHER,SPARK ADVANCER Price: $14.09 |
