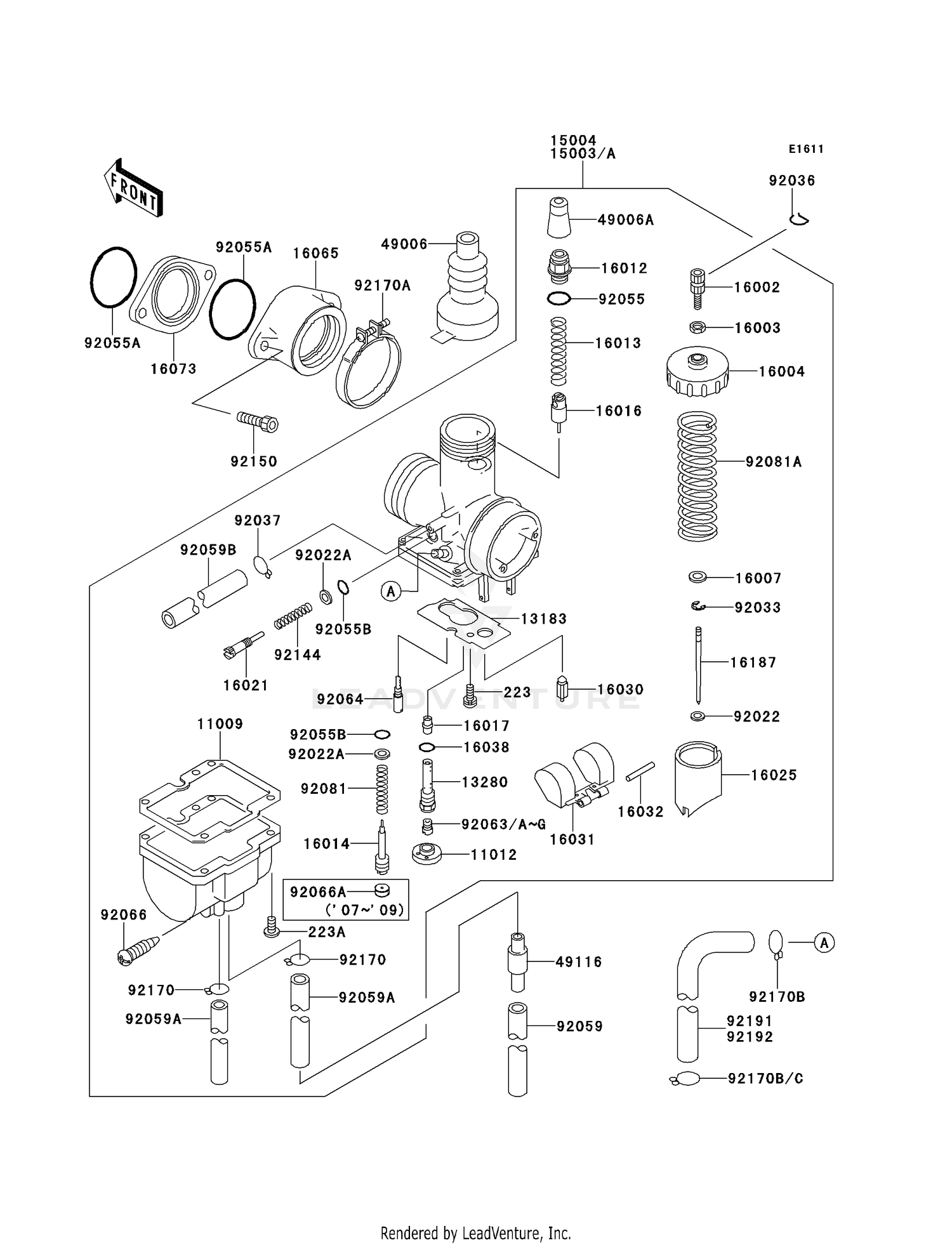

| Ref | Part Number | Description |
|---|
| 223 |
223AA0308 |
SCREW-PAN-WS-CROS Price: $1.86 |
| 223A |
223AA0414 |
SCREW-PAN-WS-CROS,4X14 Price: $1.52 |
| 11009 |
11009-1676 |
GASKET,FLOAT CHAMBER Price: $17.74 |
| 11012 |
11012-1659 |
CAP Price: $27.80 |
| 13183 |
13183-1273 |
PLATE Price: $22.40 |
| 13280 |
13280-1167 |
HOLDER,NEEDLE JET Price: $33.37 |
| 15003 |
15003-0013 |
CARBURETOR-ASSY Price: $566.69 |
| 16002 |
16002-011 |
ADJUSTER-CABLE Price: $13.97 |
| 16003 |
16003-006 |
NUT,ADJUST LOCK Price: $7.34 |
| 16004 |
16004-1055 |
CAP-CHAMBER Price: $34.18 |
| 16007 |
16007-1111 |
SEAT-SPRING,THROTTLE Price: $5.83 |
| 16012 |
16012-1056 |
CAP-STARTER PLUNGER Price: $15.45 |
| 16013 |
16013-003 |
SPRING-PLUNGER Price: $6.16 |
| 16014 |
16014-0003 |
SCREW-PILOT AIR Price: $26.45 |
| 16016 |
16016-1074 |
PLUNGER,STARTER Price: $65.10 |
| 16017 |
16017-0003 |
JET-NEEDLE,O-2M Price: $50.29 |
| 16021 |
16021-1126 |
SCREW-THROTTLE STOP Price: $16.18 |
| 16025 |
16025-0005 |
VALVE-THROTTLE,CA 3.5 Price: $122.95 |
| 16030 |
16030-1066 |
VALVE-FLOAT,#1.5 Price: $53.57 |
| 16031 |
16031-1055 |
FLOAT Price: $53.59 |
| 16032 |
16032-008 |
PIN,FLOAT This part replaces 16032-003. Price: $6.57 |
| 16065 |
16065-1157 |
HOLDER-CARBURETOR Price: $42.77 |
| 16073 |
16073-1053 |
INSULATOR Price: $10.56 |
| 16187 |
16187-0020 |
NEEDLE-JET,5GN74 Price: $38.30 |
| 49006 |
49006-1230 |
BOOT Price: $11.27 |
| 49006A |
49006-1235 |
BOOT,STARTER PLUNGER Price: $11.27 |
| 49116 |
49116-1126 |
VALVE-ASSY Price: $20.77 |
| 92022 |
92022-1024 |
WASHER,THROTTLE VALVE Price: $6.61 |
| 92022A |
92022-1187 |
WASHER,ADJUST SCREW Price: $6.22 |
| 92033 |
92033-1290 |
RING-SNAP Price: $4.65 |
| 92036 |
92036-018 |
RING-SNAP Price: $3.89 |
| 92037 |
92037-1610 |
CLAMP This part replaces 92037-174. Price: $2.00 |
| 92055 |
92055-1252 |
RING-O,STARTER PLUNGER Price: $5.29 |
| 92055A |
92055-1256 |
RING-O,32MM Price: $13.08 |
| 92055B |
92055-1658 |
RING-O,AIR SCREW Price: $6.00 |
| 92059 |
92059-1736 |
TUBE,7X10X100 Price: $4.46 |
| 92059A |
92059-1937 |
TUBE,6X8X650 This part replaces 92059-1843. Price: $23.83 |
| 92059B |
92059-1937 |
TUBE,6X8X650 Price: $23.83 |
| 92063B |
92063-1106 |
JET-MAIN,#A120 Price: $18.50 |
| 92064 |
92064-0003 |
JET-PILOT,22.5 Price: $19.41 |
| 92066 |
92066-0050 |
PLUG,DRAIN Price: $16.09 |
| 92081 |
92081-1690 |
SPRING,PILOT AIR SCREW Price: $6.16 |
| 92081A |
92081-1691 |
SPRING,THROTTLE VALVE Price: $14.10 |
| 92144 |
92144-1183 |
SPRING,THROTTLE STOP Price: $5.46 |
| 92150 |
92150-1654 |
BOLT Price: $5.33 |
| 92170 |
92170-1004 |
CLAMP Price: $4.60 |
| 92170A |
92170-1438 |
CLAMP Price: $8.98 |
| 92170B |
92170-1834 |
CLAMP,TUBE Price: $4.67 |
