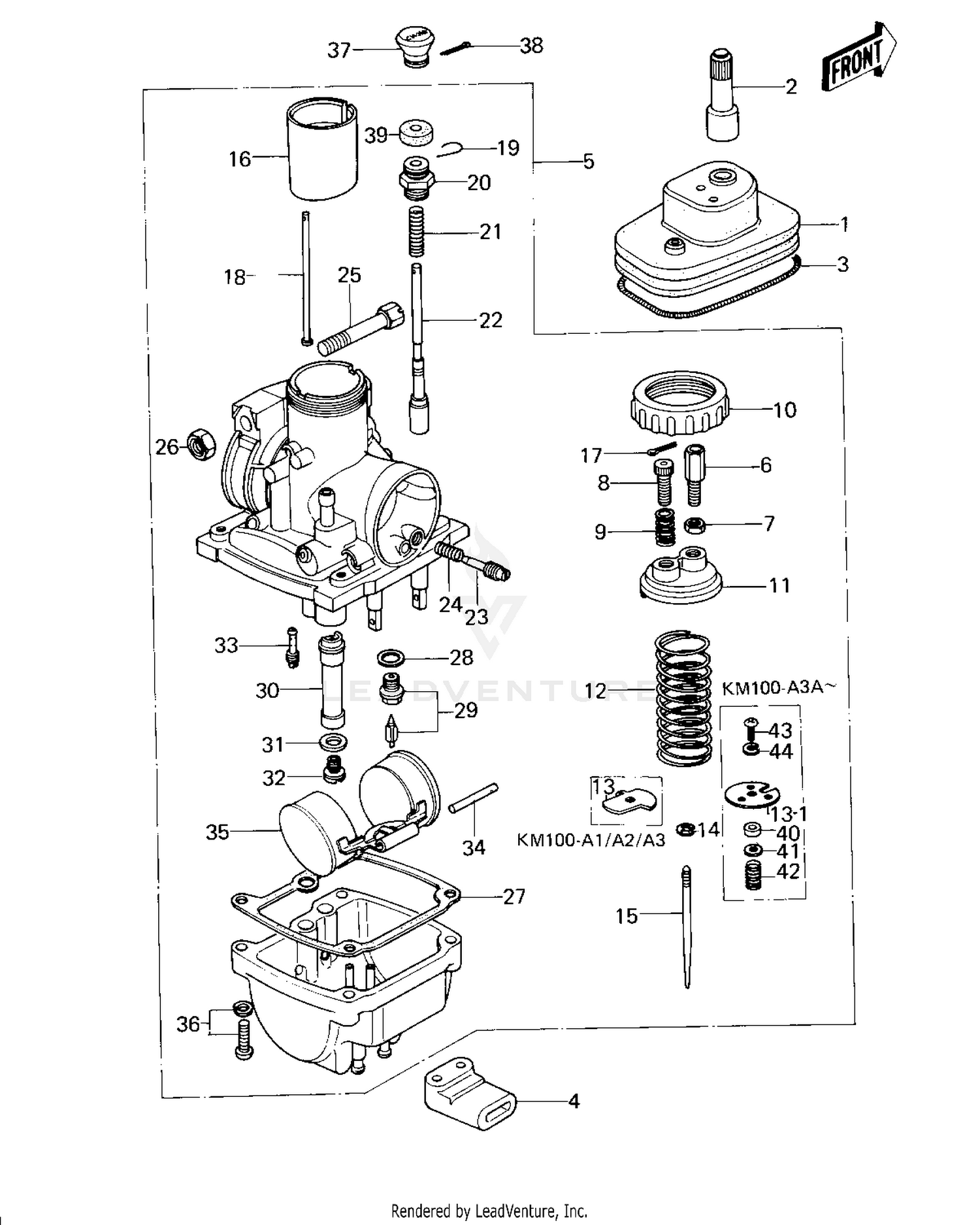

| Ref | Part Number | Description |
|---|
| 1 |
14038-035 |
CAP,CARBURETOR Price: $15.50 |
| 2 |
16147-001 |
PLUG,CARBURETOR CAP Price: $5.17 |
| 3 |
92081-047 |
SPRING COIL Price: $11.29 |
| 4 |
16136-007 |
GROMMET,OVER FLOW Price: $9.50 |
| 6 |
16002-017 |
ADJUSTER,CABLE Price: $13.38 |
| 7 |
16003-004 |
NUT CABLE ADJUST LOCK Price: $7.34 |
| 8 |
16021-002 |
SCREW,THROTTLE STOP Price: $18.22 |
| 9 |
16022-005 |
SPRING THR STOP SCREW Price: $8.68 |
| 10 |
16004-010 |
CAP MIXING CHAMBER Price: $20.59 |
| 11 |
16005-005 |
TOP MIXING CHAMBER Price: $20.79 |
| 12 |
16006-013 |
SPRING THROTTLE VALVE Price: $15.02 |
| 14 |
16008-010 |
CIRCLIP Price: $9.21 |
| 17 |
550AA1210 |
PIN-COTTER,1.2X10 This part replaces 550D1210. Price: $2.65 |
| 18 |
16024-012 |
ROD,THROTTLE VLV STP Price: $10.79 |
| 20 |
16012-021 |
CAP,STARTER PLUNGER Price: $15.94 |
| 21 |
16013-010 |
SPRING,STARTER PLUNGR Price: $5.68 |
| 22 |
16016-012 |
PLUNGER,STARTER Price: $40.35 |
| 23 |
16014-002 |
SCREW PILOT AIR ADJST Price: $18.22 |
| 24 |
16022-007 |
SPRING,PILOT AIR SCREW Price: $8.13 |
| 25 |
16010-004 |
SCREW CLAMP Price: $5.57 |
| 27 |
16019-021 |
GASKET,FLOAT CHAMBER Price: $20.79 |
| 28 |
16029-002 |
WASHER VALVE SEAT Price: $4.46 |
| 29 |
16030-001 |
FLOAT VALVE ASSY Price: $56.16 |
| 31 |
16034-001 |
WASHER MAIN JET Price: $4.31 |
| 34 |
16032-008 |
PIN,FLOAT This part replaces 16032-003. Price: $6.57 |
| 35 |
16031-015 |
FLOAT Price: $56.16 |
| 36 |
223AA0418 |
SCREW-PAN-WS-CROS This part replaces 16033-012. Price: $1.88 |
| 37 |
92077-022 |
KNOB,CARBURETOR Price: $10.64 |
| 38 |
550AA1615 |
PIN-COTTER,1.6X15 This part replaces 550D1615. Price: $2.51 |
| 39 |
16036-012 |
CAP,STARTER PLUNGER Price: $11.46 |
