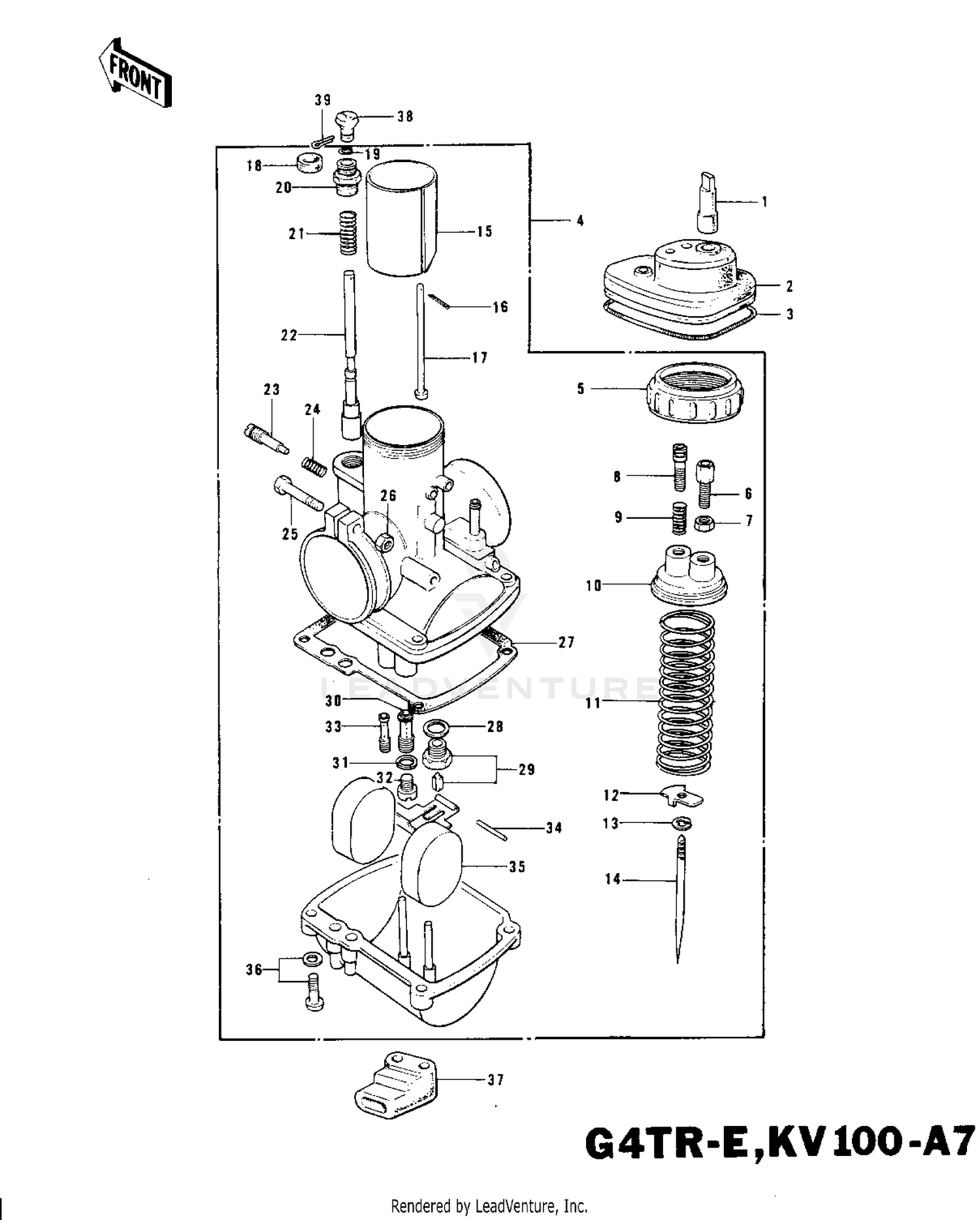

CARBURETOR G4TR-E,KV100-A7 ('74-'75)

CARBURETOR G4TR-E,KV100-A7 ('74-'75)

Parts (37)

RefPart NumberDescription
1 16147-001 PLUG,CARBURETOR CAP Price: $5.17
2 14038-035 CAP,CARBURETOR Price: $15.50
3 92081-047 SPRING COIL Price: $11.29
4 16001-233 CARBURETOR ASSY Price: $135.35
5 16004-010 CAP MIXING CHAMBER Price: $20.59
6 16002-002 CABLE ADJUSTER Price: $11.83
7 16003-004 NUT CABLE ADJUST LOCK Price: $7.34
8 16021-002 SCREW,THROTTLE STOP Price: $18.22
9 16022-005 SPRING THR STOP SCREW Price: $8.68
10 16005-005 TOP MIXING CHAMBER Price: $20.79
11 16006-013 SPRING THROTTLE VALVE Price: $15.02
12 16007-020 SPRING SEAT,THRTL TL Price: $10.97
13 16008-010 CIRCLIP Price: $9.21
14 16009-059 JET NEEDLE 4EJ7 Price: $37.51
15 16025-057 VALVE,THROTTLE CA2.0 Price: $91.39
16 550AA1210 PIN-COTTER,1.2X10 This part replaces 550D1210. Price: $2.65
17 16024-012 ROD,THROTTLE VLV STP Price: $10.79
18 16036-012 CAP,STARTER PLUNGER Price: $11.46
19 92037-1077 CIRCLIP Price: $5.73
20 16012-010 CAP STARTER PLUNGER Price: $14.79
21 16013-010 SPRING,STARTER PLUNGR Price: $5.68
22 16016-012 PLUNGER,STARTER Price: $40.35
23 16014-002 SCREW PILOT AIR ADJST Price: $18.22
24 16022-007 SPRING,PILOT AIR SCREW Price: $8.13
25 16010-004 SCREW CLAMP Price: $5.57
26 311AA0600 NUT-HEX,6MM This part replaces 311B0600. Price: $0.96
27 16019-021 GASKET,FLOAT CHAMBER Price: $20.79
28 16029-002 WASHER VALVE SEAT Price: $4.46
29 16030-001 FLOAT VALVE ASSY Price: $56.16
30 16017-081 NEEDLE JET O-4 Price: $37.97
31 16034-001 WASHER MAIN JET Price: $4.31
33 92064-020 PILOT JET #17.5 ISO Price: $19.96
34 16032-008 PIN,FLOAT This part replaces 16032-003. Price: $6.57
35 16031-015 FLOAT Price: $56.16
36 223AA0418 SCREW-PAN-WS-CROS This part replaces 16033-012. Price: $1.88
37 16136-007 GROMMET,OVER FLOW Price: $9.50
38 92077-022 KNOB,CARBURETOR Price: $10.64
