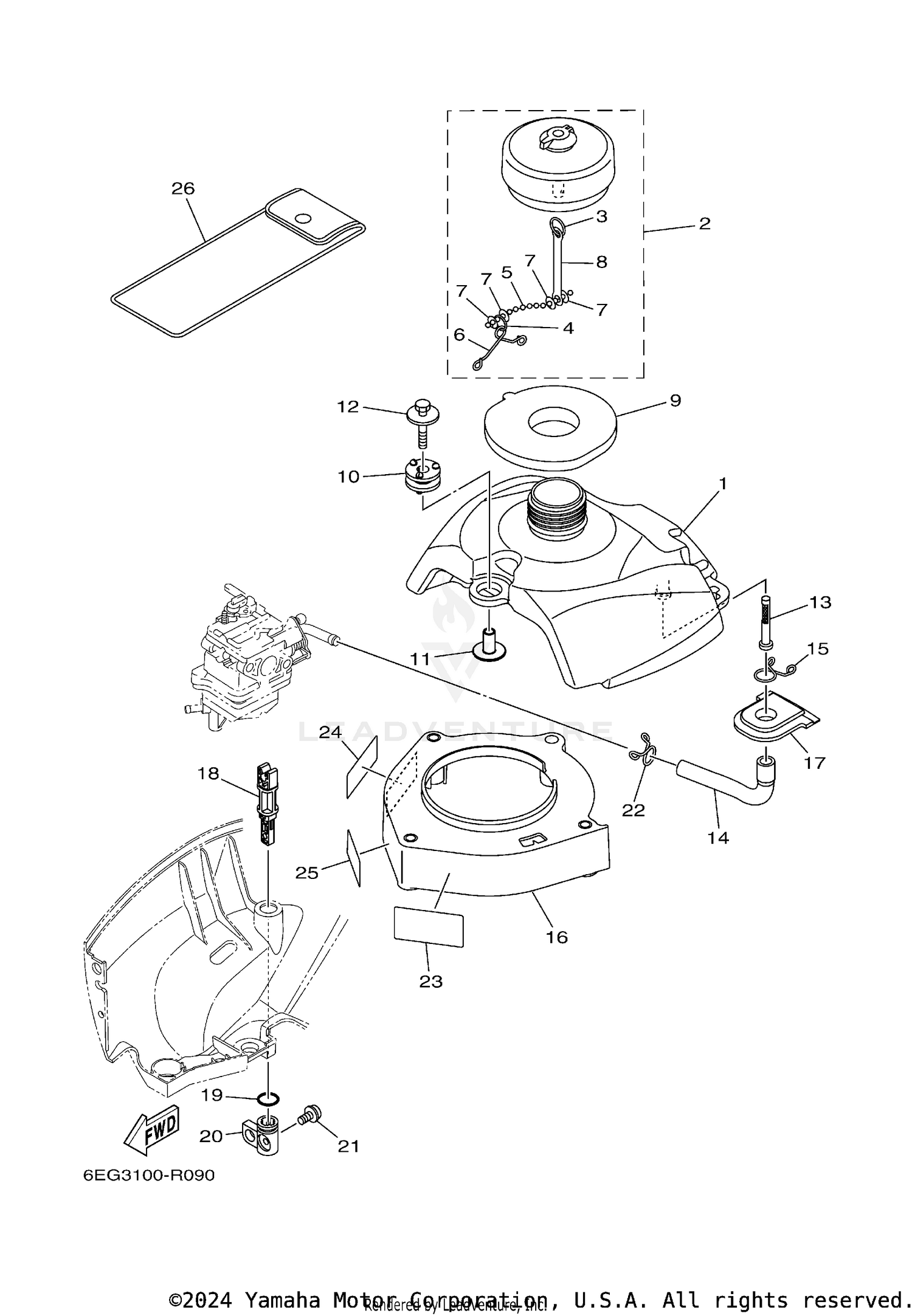

| Ref | Part Number | Description |
|---|
| 1 |
6EG-F4111-10-00 |
TANK, FUEL Price: $97.95 |
| 2 |
69M-24610-05-00 |
CAP ASSY This part replaces 69M-24610-03-00. Price: $175.80 |
| 3 |
90468-100A2-00 |
CLIP Price: $3.00 |
| 4 |
90468-100A0-00 |
CLIP Price: $5.50 |
| 5 |
69M-24633-01-00 |
CHAIN, BALL Price: $4.30 |
| 6 |
624-24634-10-00 |
HOOK, CHAIN BALL Price: $3.15 |
| 7 |
67D-21757-00-00 |
WASHER, SPECIAL 1 Price: $4.75 |
| 8 |
69M-16548-00-00 |
JOINT, CHAIN Price: $4.50 |
| 9 |
6EG-24641-01-00 |
GASKET, CAP 1 This part replaces 6EG-24641-00-00. Price: $59.00 |
| 10 |
6EG-F4375-00-00 |
GROMMET Price: $9.35 |
| 11 |
90387-06176-00 |
COLLAR Price: $5.95 |
| 12 |
90119-06300-00 |
BOLT, WITH WASHER Price: $3.00 |
| 13 |
6L5-24251-00-00 |
STRAINER 1 Price: $8.40 |
| 14 |
6EG-24311-10-00 |
PIPE, FUEL 1 This part replaces 6EG-F4311-10-00. Price: $9.20 |
| 15 |
90467-13M13-00 |
CLIP Price: $7.49 |
| 16 |
6EG-F4191-00-00 |
BRACKET, FUEL TANK 1 Price: $32.90 |
| 17 |
6EG-F4181-01-00 |
DAMPER, LOCATING 1 This part replaces 6EG-F4181-00-00. Price: $7.80 |
| 18 |
6EG-F4554-00-00 |
SHAFT, COCK Price: $21.15 |
| 19 |
93210-128F6-00 |
O-RING Price: $3.95 |
| 20 |
6EG-F4575-00-00 |
LEVER, FUEL CHANGE Price: $11.80 |
| 21 |
90159-05M12-00 |
SCREW, WITH WASHER Price: $3.20 |
| 22 |
90467-11M08-00 |
CLIP Price: $2.70 |
| 23 |
6EG-E3437-61-00 |
MARK, CAUTION Price: $1.65 |
| 24 |
6EE-H1994-40-00 |
LABEL, SAFETY Price: $17.10 |
