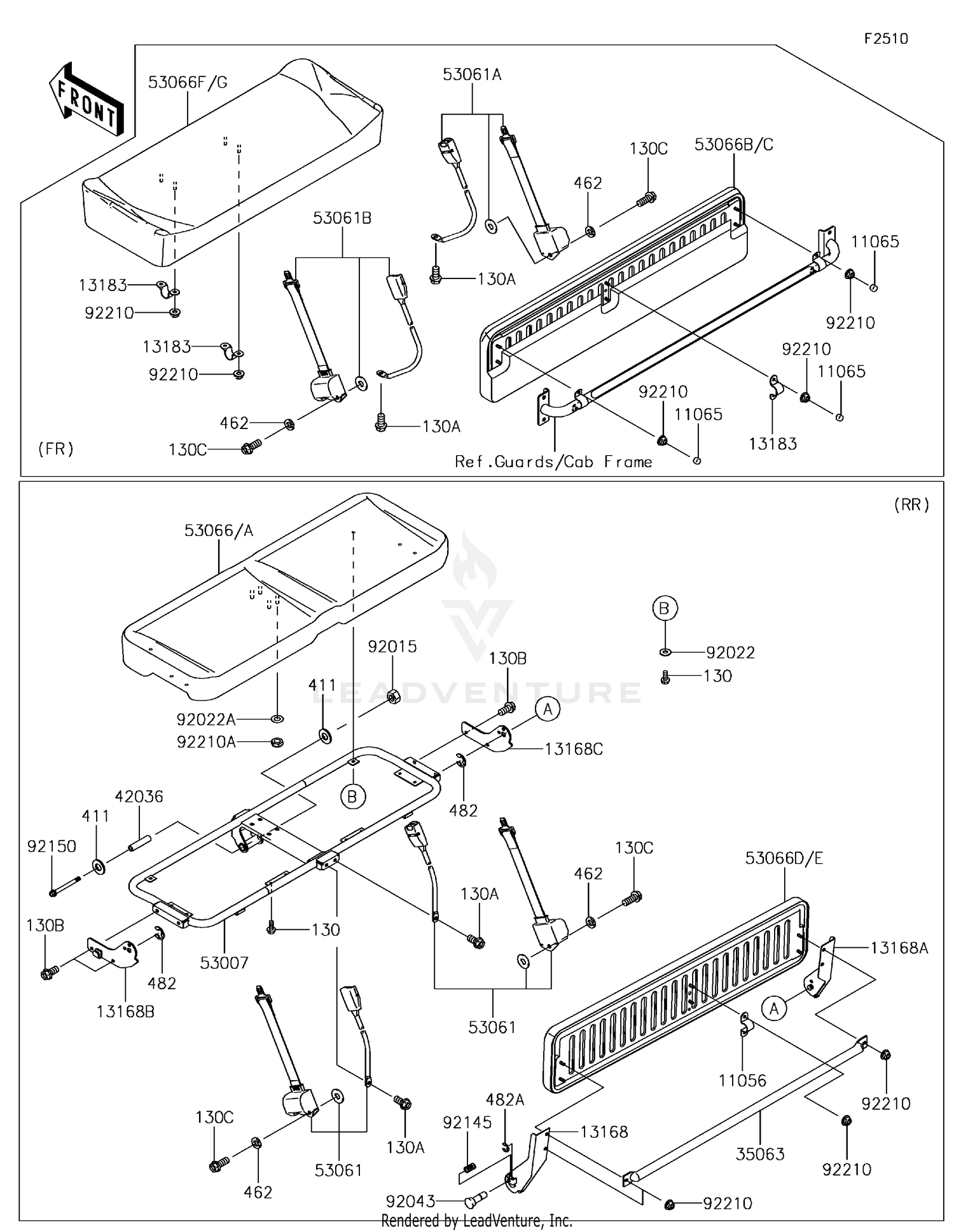

| Ref | Part Number | Description |
|---|
| 130 |
130BA0616 |
BOLT-FLANGED,6X16 Price: $1.20 |
| 130A |
130BA1220 |
BOLT-FLANGED,12X20 Price: $3.74 |
| 130B |
130BB1020 |
BOLT-FLANGED,10X20 Price: $5.96 |
| 130C |
130BB1225 |
BOLT-FLANGED,12X25 Price: $5.05 |
| 411 |
411AB1200 |
WASHER-PLAIN Price: $3.92 |
| 462 |
462DB1200 |
WASHER-SPRING,12MM Price: $1.19 |
| 482 |
482EA0200 |
CIRCLIP-TYPE-E,12MM Price: $2.30 |
| 11056 |
11056-0034 |
BRACKET,SEAT BACK Price: $7.88 |
| 11065 |
11065-7504 |
CAP Price: $1.50 |
| 13168 |
13168-7502 |
LEVER,SEAT,TOP,LH Price: $58.46 |
| 13168A |
13168-7503 |
LEVER,SEAT,TOP,RH Price: $58.46 |
| 13168B |
13168-7504 |
LEVER,SEAT,LWR,LH Price: $47.79 |
| 13168C |
13168-7505 |
LEVER,SEAT,LWR,RH Price: $47.79 |
| 13183 |
13183-1400 |
PLATE,SEAT Price: $7.58 |
| 35063 |
35063-7510 |
STAY,REAR BACK Price: $147.48 |
| 42036 |
42036-7501 |
SLEEVE,12.1X20X85 Price: $10.13 |
| 53007 |
53007-0327 |
FRAME-SEAT Price: $157.04 |
| 53061 |
53061-0314 |
BELT-SEAT,RR Price: $117.32 |
| 53061A |
53061-0315 |
BELT-SEAT,FR,RH Price: $117.32 |
| 53061B |
53061-0316 |
BELT-SEAT,FR,LH Price: $117.32 |
| 53066 |
53066-0237-MA |
SEAT-ASSY,RR,LWR,BLACK Price: $535.13 |
| 53066A |
53066-0237-MB |
SEAT-ASSY,RR,LWR,S.M.BROWN Price: $569.11 |
| 53066B |
53066-0258-MA |
SEAT-ASSY,FR,BACK,BLACK Price: $275.29 |
| 53066C |
53066-0258-MB |
SEAT-ASSY,FR,BACK,S.M.BROWN Price: $288.34 |
| 53066D |
53066-0259-MA |
SEAT-ASSY,RR,BACK,BLACK Price: $275.29 |
| 53066E |
53066-0259-MB |
SEAT-ASSY,RR,BACK,S.M.BROWN Price: $288.34 |
| 53066F |
53066-0274-MA |
SEAT-ASSY,FR,LWR,BLACK Price: $472.69 |
| 53066G |
53066-0964-MB |
SEAT-ASSY,FR,LWR,S.M.BROW This part replaces 53066-0274-MB. Price: $496.71 |
| 92015 |
92015-1190 |
NUT,LOCK,12MM,BLACK Price: $7.34 |
| 92022 |
92022-1545 |
WASHER,7X18X1.2 Price: $1.03 |
| 92022A |
92022-239 |
WASHER,10.5X20X1 Price: $3.92 |
| 92043 |
92043-7503 |
PIN Price: $4.17 |
| 92145 |
92145-7507 |
SPRING Price: $1.50 |
| 92150 |
92150-1895 |
BOLT,FLANGED,12X117 Price: $12.74 |
| 92210 |
92210-0005 |
NUT,FLANGED,LOCK,8MM Price: $4.67 |
| 92210A |
92210-0278 |
NUT,LOCK,10MM Price: $2.15 |
