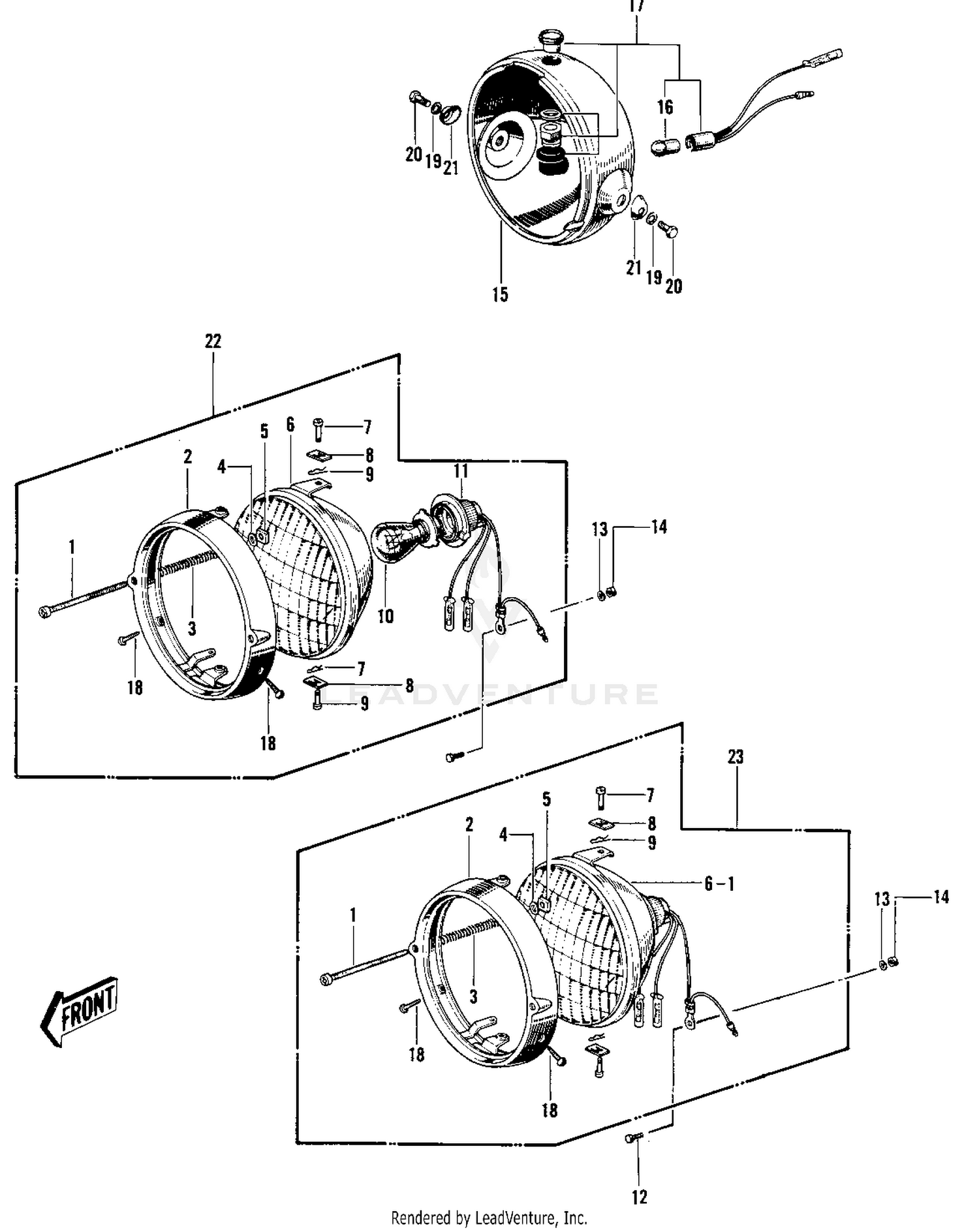

| Ref | Part Number | Description |
|---|
| 1 |
23019-021 |
SCREW FORCUS ADJUST Price: $4.69 |
| 2 |
23006-017 |
RIM HEAD LAMP Price: $27.39 |
| 3 |
23014-005 |
SPRING FOCUS ADJUST Price: $3.62 |
| 4 |
23021-004 |
WASHER Price: $2.91 |
| 5 |
23020-016 |
NUT Price: $2.21 |
| 7 |
23019-018 |
SCREW LENS UNIT FITT Price: $3.42 |
| 8 |
23020-009 |
NUT LENS UNIT FITTING Price: $4.75 |
| 9 |
23022-001 |
PIN LENS UNIT FITTING Price: $3.94 |
| 12 |
220AA0306 |
SCREW-PAN-CROS,3X6 This part replaces 220B0306. Price: $0.64 |
| 13 |
461DA0300 |
WASHER-SPRING This part replaces 461F0300. Price: $0.47 |
| 14 |
311AA0300 |
NUT-HEX This part replaces 311B0300. Price: $0.40 |
| 16 |
92069-017 |
BULB 12V 1.5W Price: $4.92 |
| 17 |
222E0510 |
SCREW OVL CNTSNK 5X10 Price: $4.26 |
| 17 |
23016-002 |
LAMP ASSY HIGH BEAM Price: $9.18 |
| 19 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 20 |
92007-045 |
BOLT,HEX HEAD,10X25 Price: $10.62 |
