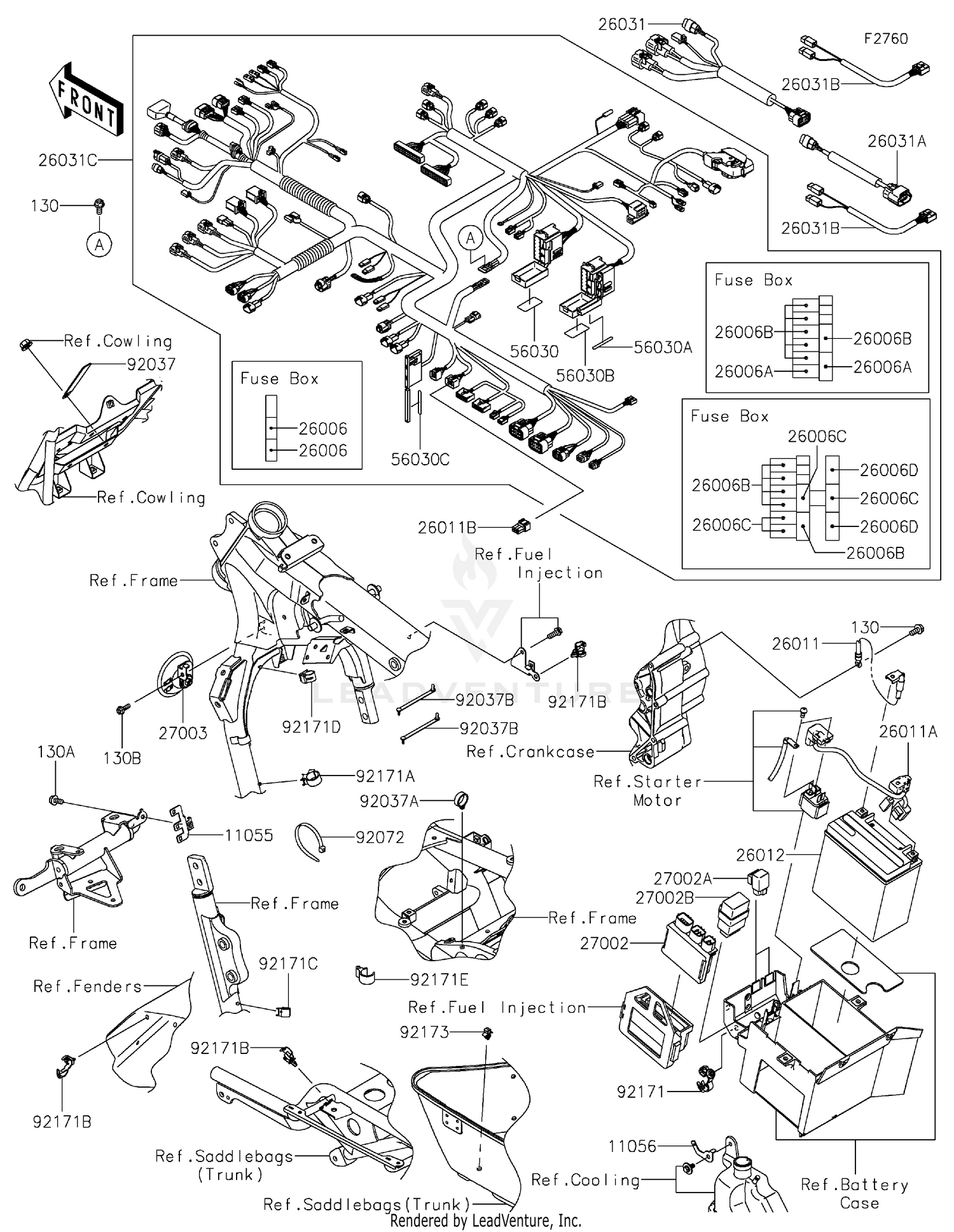

| Ref | Part Number | Description |
|---|
| 10a |
415129355 |
Speedometer Button Price: $16.49 |
| 10c |
415129349 |
Lens Price: $25.99 |
| 20 |
516006224 |
BRP Logo 20MM x 2MM Price: $14.49 |
| 130 |
130BA0614 |
BOLT-FLANGED,6X14 Price: $1.20 |
| 130A |
130BB0612 |
BOLT-FLANGED,6X12 Price: $2.34 |
| 130B |
130BB0618 |
BOLT-FLANGED,6X18 Price: $1.81 |
| 600 |
515178840 |
Terminal Dess One-Wire This part replaces 515178225. Price: $83.49 |
| 610 |
278002963 |
Safety Nut (DESS Switch) Price: $3.39 |
| 620 |
515178286 |
Grey, RF Key Ass'y Price: $69.99 |
| 960 |
515177134 |
Connector Plate Price: $17.99 |
| 2000 |
420664509 |
Temperature Sensor This part replaces 515177813. Price: $154.99 |
| 2200 |
515176366 |
Air Temperature Sensor Price: $19.99 |
| 2205 |
508000769 |
Seal Price: $6.49 |
| 2210 |
389804300 |
Push Nut Price: $0.55 |
| 2410 |
515177147 |
Housing Plate Price: $20.99 |
| 2420 |
250000671 |
Torx Screw Price: $1.09 |
| 2470 |
219704418 |
PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership Price: $11.49 |
| 2480 |
219704418 |
PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership Price: $11.49 |
| 2600 |
515177362 |
Emergency Stop Switch Price: $88.99 |
| 2610 |
515177310 |
Emergency Stop Switch Support Price: $9.39 |
| 2620 |
250000263 |
Torx Screw #8-18 Price: $1.09 |
| 3015 |
234141601 |
Lock Washer 4 mm Price: $1.19 |
| 3020 |
250000741 |
Screw-Torx Button Head M4 X 8 Price: $1.19 |
| 3027 |
518325560 |
Adhesive Patch Price: $4.69 |
| 3201 |
250000690 |
Pan Screw Forming, 7500C Price: $2.19 |
| 3210 |
515175662 |
Male Terminal Housing, 6 Circuits Price: $8.99 |
| 3220 |
515175846 |
Male Terminal Housing, 4 Circuits Price: $8.99 |
| 3600 |
515177289 |
Ground Wire Price: $27.99 |
| 4205 |
414644300 |
Black, Dart Price: $1.00 |
| 4310 |
207662044 |
Hex. Flange Screw M6 X 20 Price: $2.09 |
| 4312 |
234461608 |
External Serrated Lock Washer 6 mm Price: $1.19 |
| 4313 |
250200082 |
Flat Washer Price: $0.44 |
| 4320a |
250000282 |
Battery Bolt Kit Price: $7.49 |
| 4520 |
515177272 |
Capacitor Price: $92.99 |
| 4530 |
250000462 |
Socket Head Screw M10 X 32 Price: $2.19 |
| 4535 |
250200026 |
Lock washer Price: $1.99 |
| 4540 |
516008155 |
CAPACITOR DECAL - Call your local BRP dealership Price: $9.19 |
| 4550 |
515177193 |
Cap Price: $4.79 |
| 4721 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 5005 |
514055100 |
Tab Lock Price: $8.59 |
| 9000 |
293750002 |
Tie Wrap 142 mm Price: $1.25 |
| 9001 |
293750008 |
Tie Wrap 368 mm Price: $1.04 |
| 9002 |
414115200 |
Tie-Rap 180 mm Price: $0.11 |
| 9003 |
293750001 |
Tie Wrap 94 mm Price: $1.03 |
| 11055 |
11055-0613 |
BRACKET,CONNECTOR Price: $8.44 |
| 11056 |
11056-1777 |
BRACKET,FUSE BOX Price: $4.72 |
| 26006 |
26006-0054 |
FUSE,MINI BLADE,3A,VIOLET Price: $6.57 |
| 26006A |
26006-1077 |
FUSE,MINI BLADE,5A,TAN Price: $4.87 |
| 26006B |
26006-1078 |
FUSE,MINI BLADE,10A,RED Price: $4.87 |
| 26006C |
26006-1079 |
FUSE,MINI BLADE,20A,YELLOW Price: $4.87 |
| 26006D |
26006-1080 |
FUSE,MINI BLADE,30A,GREEN Price: $4.87 |
| 26011 |
26011-0180 |
WIRE-LEAD,BATTERY(-) Price: $56.49 |
| 26011A |
26011-0193 |
WIRE-LEAD,BATTERY(+) Price: $69.89 |
| 26011B |
26011-0275 |
WIRE-LEAD,CONNECTOR COVER Price: $14.13 |
| 26012 |
26012-0954 |
BATTERY,FTZ16-BS,12V 18AH This part replaces 26012-0589. Price: $172.85 |
| 26031 |
26031-0646 |
HARNESS,RR,SUB Price: $109.50 |
| 26031A |
26031-0678 |
HARNESS,HIGH MOUNT LAMP Price: $43.39 |
| 26031B |
26031-0778 |
HARNESS,SPEAKER Price: $9.61 |
| 26031C |
26031-1739 |
HARNESS,MAIN This part replaces 26031-2244. Price: $1,299.68 |
| 27002 |
27002-0050 |
RELAY-ASSY This part replaces 27002-0025. Price: $143.14 |
| 27002A |
27002-1062 |
RELAY-ASSY Price: $45.39 |
| 27002B |
27002-1113 |
RELAY-ASSY,SIGNAL LAMP Price: $115.95 |
| 27003 |
27003-0055 |
HORN Price: $80.94 |
| 56030 |
56030-0177 |
LABEL,FUSE BOX Price: $6.86 |
| 56030A |
56030-0189 |
LABEL,FUSE BOX Price: $6.89 |
| 56030B |
56030-0294 |
LABEL,FUSE BOX Price: $6.57 |
| 56030C |
56030-0766 |
LABEL,FUSE BOX Price: $6.89 |
| 92037 |
92037-1636 |
CLAMP,HARNESS,L=100 Price: $7.68 |
| 92037A |
92037-1827 |
CLAMP,HOSE Price: $7.45 |
| 92037B |
92037-1903 |
CLAMP,SPEED,L=80.5 Price: $7.84 |
| 92072 |
92072-1195 |
BAND,L=202 Price: $1.56 |
| 92171 |
92171-0068 |
CLAMP,CLIP,DIA=20 Price: $2.80 |
| 92171A |
92171-0081 |
CLAMP,20MM DIA. Price: $4.18 |
| 92171B |
92171-1415 |
CLAMP,13MM DIA. Price: $2.03 |
| 92171C |
92171-1423 |
CLAMP,10MM DIA. Price: $4.18 |
| 92171D |
92171-1424 |
CLAMP,15MM DIA. Price: $4.18 |
| 92171E |
92171-1460 |
CLAMP Price: $4.56 |
