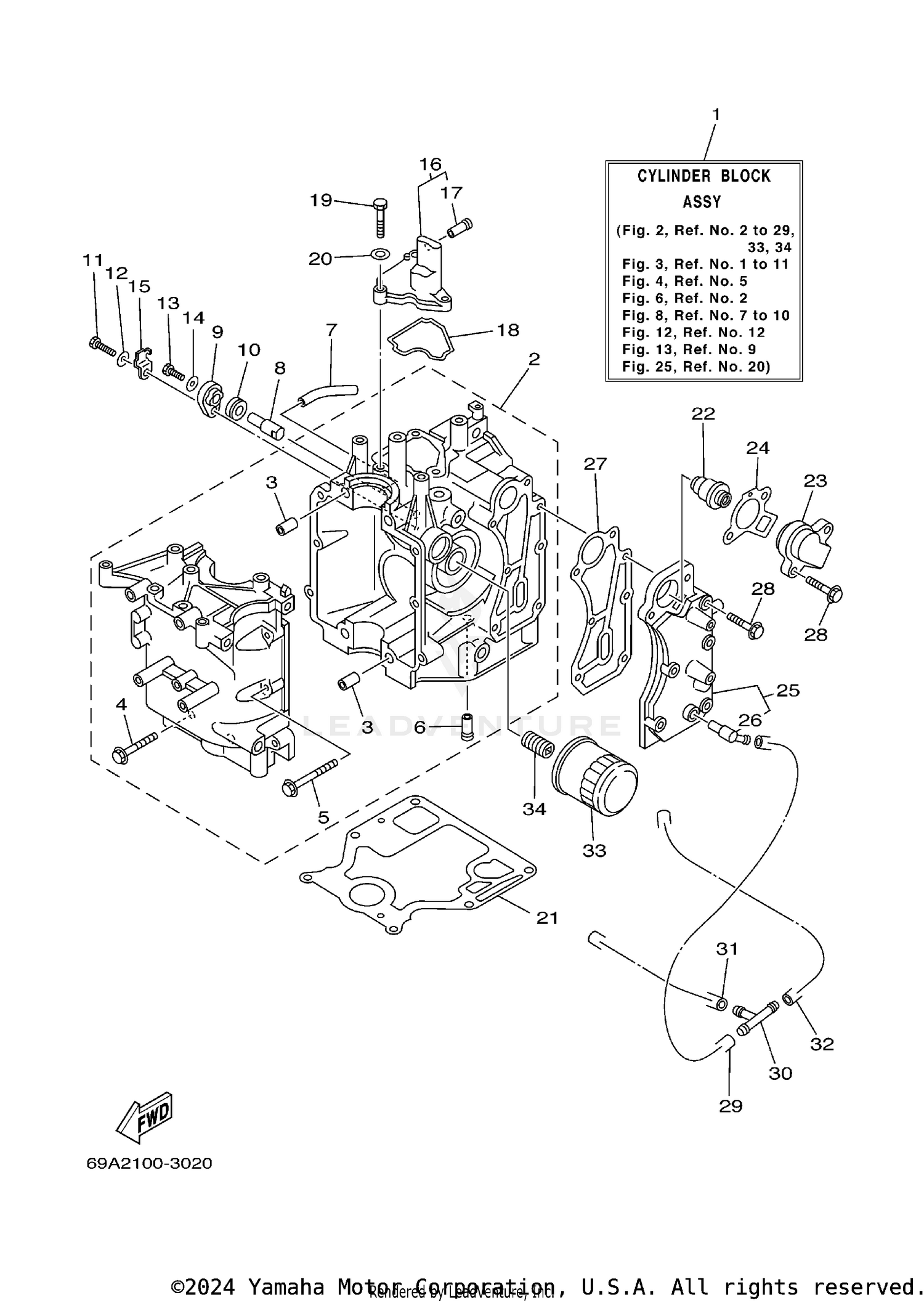

| Ref | Part Number | Description |
|---|
| 2 |
66M-15100-03-00 |
CRANKCASE ASSY This part replaces 66M-15100-01-1S. Price: $2,061.85 |
| 3 |
99530-10114-00 |
PIN, DOWEL This part replaces 99510-10114-00. Price: $2.65 |
| 4 |
90119-08M66-00 |
BOLT, WITH WASHER Price: $3.65 |
| 5 |
90119-06M14-00 |
BOLT, WITH WASHER Price: $9.49 |
| 6 |
6E5-24377-00-00 |
PIPE, JOINT 2 Price: $12.00 |
| 7 |
90445-10752-00 |
HOSE This part replaces 90445-10M46-00. Price: $5.49 |
| 8 |
66M-11325-00-00 |
ANODE Price: $8.10 |
| 9 |
66M-11327-00-94 |
COVER, ANODE Price: $10.70 |
| 10 |
66M-11328-01-00 |
GROMMET, ANODE This part replaces 66M-11328-00-00. Price: $1.35 |
| 11 |
97080-06020-00 |
BOLT This part replaces 97095-06020-00. Price: $4.50 |
| 12 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 13 |
97095-05012-00 |
BOLT Price: $1.75 |
| 14 |
92990-05600-00 |
WASHER, PLATE This part replaces 92995-05600-00. Price: $0.80 |
| 15 |
66M-12535-00-00 |
PLATE Price: $6.25 |
| 16 |
66M-11168-00-1S |
COVER, BREATHER Price: $50.65 |
| 17 |
6E5-24377-00-00 |
PIPE, JOINT 2 Price: $12.00 |
| 18 |
66M-11357-00-00 |
SEAL, CYLINDER 3 Price: $11.80 |
| 19 |
97080-06020-00 |
BOLT This part replaces 97095-06020-00. Price: $4.50 |
| 20 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 21 |
66M-11351-10-00 |
GASKET, CYLINDER This part replaces 66M-11351-00-00. Price: $50.10 |
| 22 |
66M-12411-01-00 |
THERMOSTAT This part replaces 66M-12411-00-00. Price: $45.60 |
| 23 |
6H3-12413-00-1S |
COVER, THERMOSTAT Price: $23.95 |
| 24 |
62Y-12414-01-00 |
GASKET, COVER This part replaces 62Y-12414-00-00. Price: $10.15 |
| 26 |
676-11372-00-00 |
NIPPLE, HOSE Price: $15.50 |
| 27 |
66M-41114-01-00 |
GASKET, EXHAUST OUTER COVER This part replaces 66M-41114-00-00. Price: $16.95 |
| 28 |
90119-06MA4-00 |
BOLT, WITH WASHER Price: $4.40 |
| 29 |
90445-094K7-00 |
HOSE This part replaces 90445-09061-00. Price: $4.10 |
| 30 |
688-24378-00-00 |
PIPE, JOINT 3 Price: $16.50 |
| 31 |
5RB-24315-00-00 |
PIPE 5 This part replaces 90445-09086-00. Price: $8.49 |
| 32 |
5RB-24315-00-00 |
PIPE 5 This part replaces 90445-09105-00. Price: $8.49 |
| 33 |
5GH-13440-72-00 |
ELEMENT ASSY, OIL CLEANER This part replaces 5GH-13440-00-00. Price: $16.75 |
