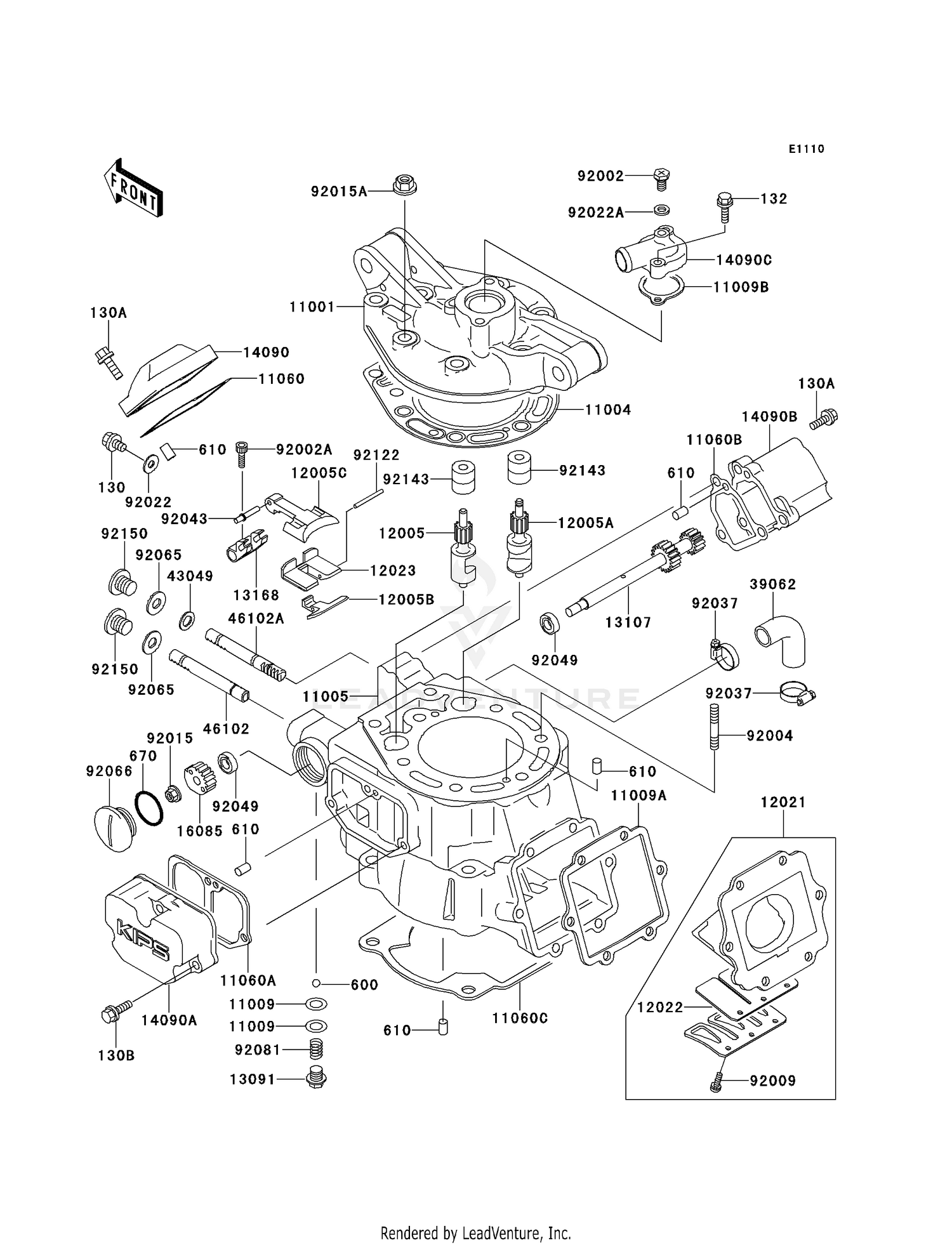

| Ref | Part Number | Description |
|---|
| 130 |
130BD0508 |
BOLT-FLANGED,5X8 This part replaces 130Y0508. Price: $2.06 |
| 130A |
130BD0520 |
BOLT-FLANGED This part replaces 130Y0520. Price: $4.67 |
| 130B |
130BD0525 |
BOLT-FLANGED This part replaces 130Y0525. Price: $5.00 |
| 132 |
132BD0625 |
BOLT-FLANGED-SMALL,6X25 This part replaces 132Y0625. Price: $5.39 |
| 600 |
600A0600 |
BALL-STEEL,3/16 Price: $1.07 |
| 610 |
610A0408 |
ROLLER,4X8 Price: $4.31 |
| 670 |
670B2022 |
O RING,22MM Price: $4.69 |
| 11001 |
11001-1410 |
HEAD-CYLINDER Price: $314.07 |
| 11004 |
11004-1299 |
GASKET-HEAD Price: $39.65 |
| 11005 |
11005-1744 |
CYLINDER-ENGINE Price: $853.17 |
| 11009 |
11009-1344 |
GASKET,8.2X14X1.0 Price: $3.17 |
| 11009A |
11009-1941 |
GASKET,REED VALVE Price: $9.20 |
| 11009B |
11009-1993 |
GASKET,ELBOW Price: $5.54 |
| 11060 |
11060-1627 |
GASKET,CENTER VALVE C Price: $10.97 |
| 11060A |
11060-1628 |
GASKET,RESONATOR COVE Price: $12.20 |
| 11060B |
11060-1629 |
GASKET,RH,COVER Price: $9.80 |
| 11060C |
11060-1659 |
GASKET,CYLINDER BASE Price: $11.80 |
| 12005 |
12005-1199 |
VALVE-EXHAUST,LH Price: $104.58 |
| 12005A |
12005-1200 |
VALVE-EXHAUST,RH Price: $104.58 |
| 12005B |
12005-1272 |
VALVE-EXHAUST,MAIN Price: $68.82 |
| 12005C |
12005-1273 |
VALVE-EXHAUST,MAIN Price: $95.05 |
| 12021 |
12021-1067 |
VALVE-ASSY-REED Price: $136.91 |
| 12022 |
12022-1063 |
VALVE-REED Price: $28.37 |
| 12023 |
12023-1085 |
HOLDER-VALVE,MAIN Price: $112.40 |
| 13091 |
13091-1889 |
HOLDER Price: $8.14 |
| 13107 |
13107-1324 |
SHAFT,CENTER Price: $95.81 |
| 13168 |
13168-1499 |
LEVER,MAIN VALVE Price: $91.49 |
| 14090 |
14090-1441 |
COVER,CENTER VALVE Price: $33.80 |
| 14090A |
14090-1442 |
COVER,LH RESONATOR Price: $13.82 |
| 14090B |
14090-1443 |
COVER,RH Price: $15.24 |
| 14090C |
14090-1534 |
COVER Price: $29.01 |
| 16085 |
16085-1274 |
GEAR,LH VALVE ROD Price: $122.90 |
| 39062 |
39062-1419 |
HOSE-COOLING,PUMP-CYL Price: $16.56 |
| 43049 |
43049-1076 |
PACKING Price: $6.10 |
| 46102 |
46102-1383 |
ROD,LH Price: $51.46 |
| 46102A |
46102-1384 |
ROD,RH Price: $51.46 |
| 92002 |
92002-1222 |
BOLT,6X10 Price: $8.10 |
| 92002A |
92150-1888 |
BOLT,SOCKET,4X8 This part replaces 92002-1403. Price: $3.32 |
| 92004 |
92004-1253 |
STUD,8X33 This part replaces 92004-1197. Price: $4.65 |
| 92009 |
92009-1014 |
SCREW,REED VALVE Price: $2.49 |
| 92015 |
92015-1233 |
NUT,FLANGED,6MM,BLACK This part replaces 92015-1386. Price: $5.52 |
| 92015A |
92015-1406 |
NUT,FLANGED,8MM Price: $4.45 |
| 92022 |
92022-1380 |
WASHER,5.2X13X1 Price: $4.31 |
| 92022A |
92022-304 |
WASHER,6.2X11X1 Price: $3.65 |
| 92037 |
92037-1589 |
CLAMP,COOLING HOSE Price: $18.57 |
| 92043 |
92043-1470 |
PIN,MAIN VALVE Price: $4.92 |
| 92049 |
92049-1238 |
SEAL-OIL,SD088144 Price: $10.46 |
| 92065 |
92065-058 |
GASKET,10.5X16X1 Price: $3.96 |
| 92066 |
92066-1414 |
PLUG Price: $16.56 |
| 92081 |
92081-1527 |
SPRING,CLUTCH PLATE Price: $4.45 |
| 92122 |
92122-1187 |
ROLLER,3X31.8 Price: $4.39 |
| 92143 |
92143-1725 |
COLLAR Price: $12.32 |
