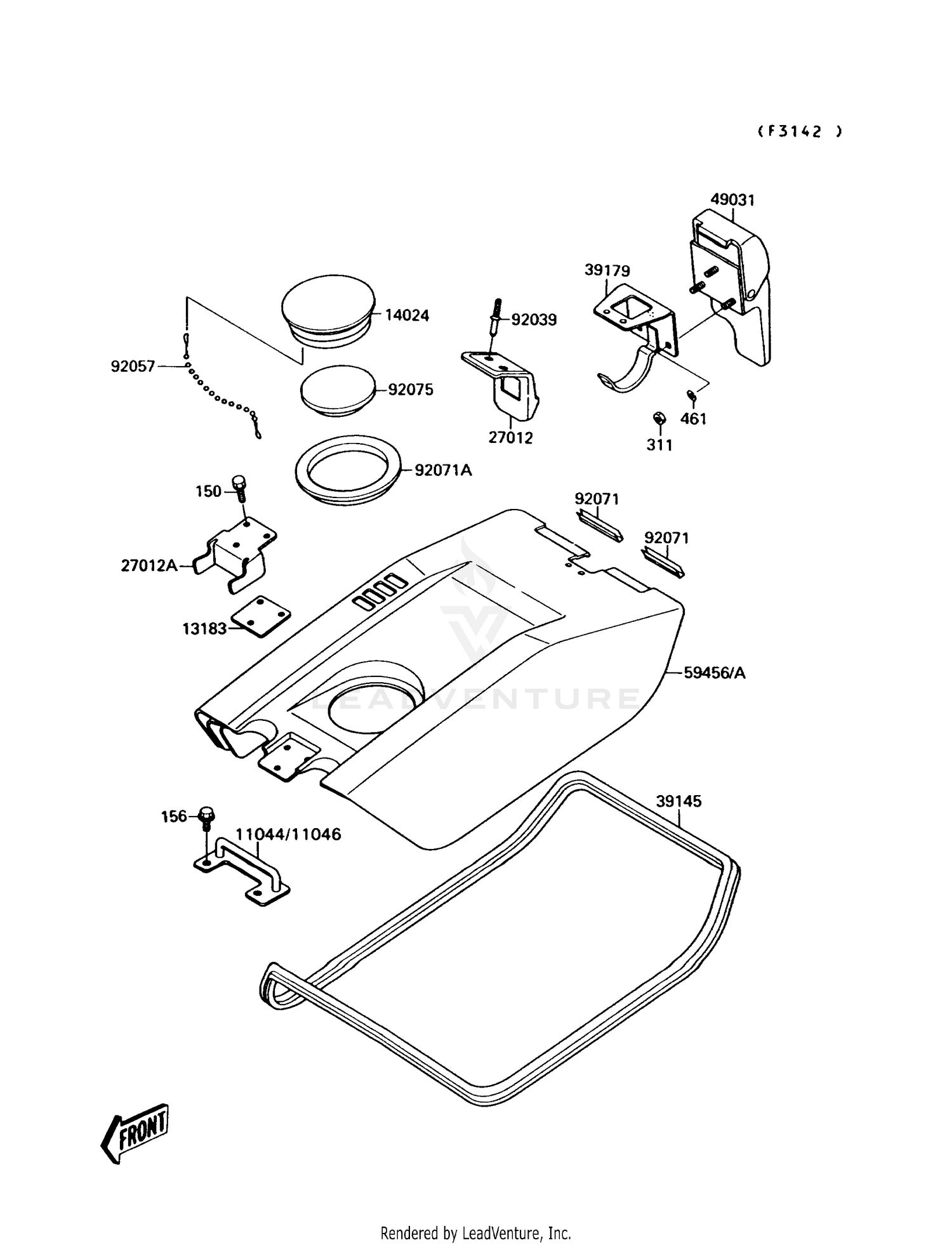

ENGINE HOOD
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 150 | 150R0522 | BOLT-WS,5X22 Price: $4.16 |
| 156 | 156R0625 | BOLT-WP,6X25 Price: $4.76 |
| 311 | 311R0500 | NUT-HEX,5MM Price: $1.75 |
| 11044 | 11046-3815 | BRACKET This part replaces 11044-3706. Price: $41.17 |
| 13183 | 13183-3719 | PLATE Price: $17.10 |
| 14024 | 14024-3748 | COVER Price: $7.76 |
| 27012 | 27012-3703 | HOOK Price: $52.00 |
| 27012A | 27012-3704 | HOOK Price: $36.38 |
| 39145 | 39145-3707 | TRIM-SEAL Price: $164.32 |
| 39179 | 39179-3701 | BRACKET-LATCH Price: $13.30 |
| 49031 | 49031-3702 | LATCH Price: $250.02 |
| 59456 | 59456-3716-8C | HOOD-COMP ENGINE J-W This part replaces 59456-3702-8C. Price: $336.35 |
| 92039 | 92039-3722 | RIVET Price: $6.25 |
| 92057 | 92057-3701 | CHAIN,COVER Price: $22.98 |
| 92071 | 92071-3726 | GROMMET Price: $4.99 |
| 92071A | 92071-3742 | GROMMET Price: $9.94 |
| 92075 | 92075-3737 | DAMPER Price: $24.84 |
